Load Frame, 0.02—2.0in/min, 10,000lbf

Product Files
Load Frame, 0.02—2.0in/min, (120V / 50-60Hz)

Load Frame, 0.02—2.0in/min, (120V / 50-60Hz)

Model: HM-398
$3850.0000
Price: $3,850.00
Load Frame, 0.02—2.0in/min, (230V / 50-60Hz)

Load Frame, 0.02—2.0in/min, (230V / 50-60Hz)

Model: HM-398F
$3850.0000
Price: $3,850.00

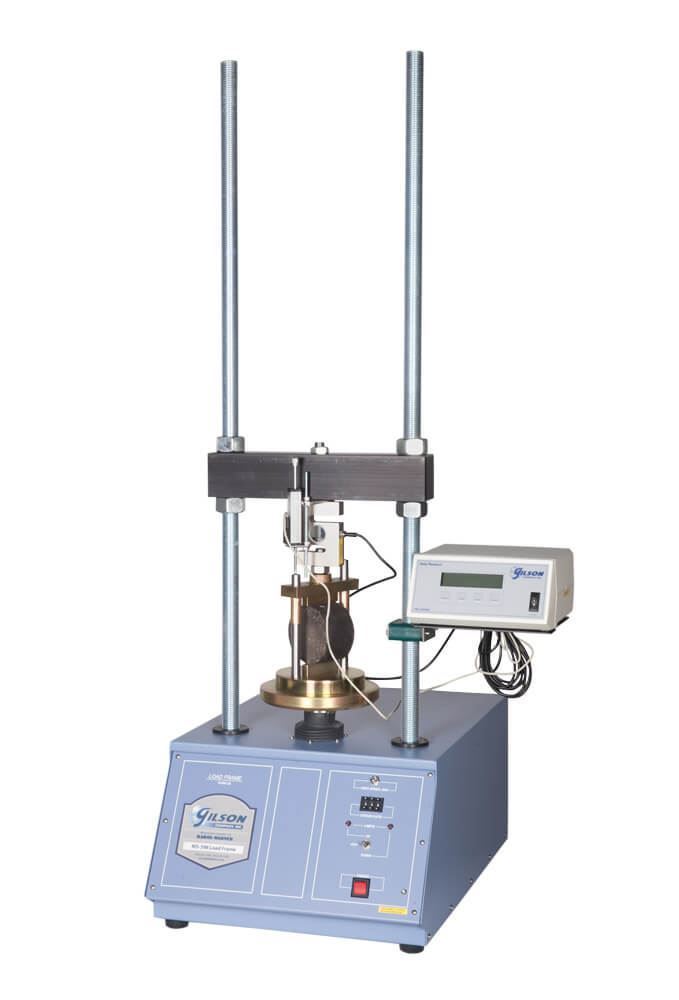

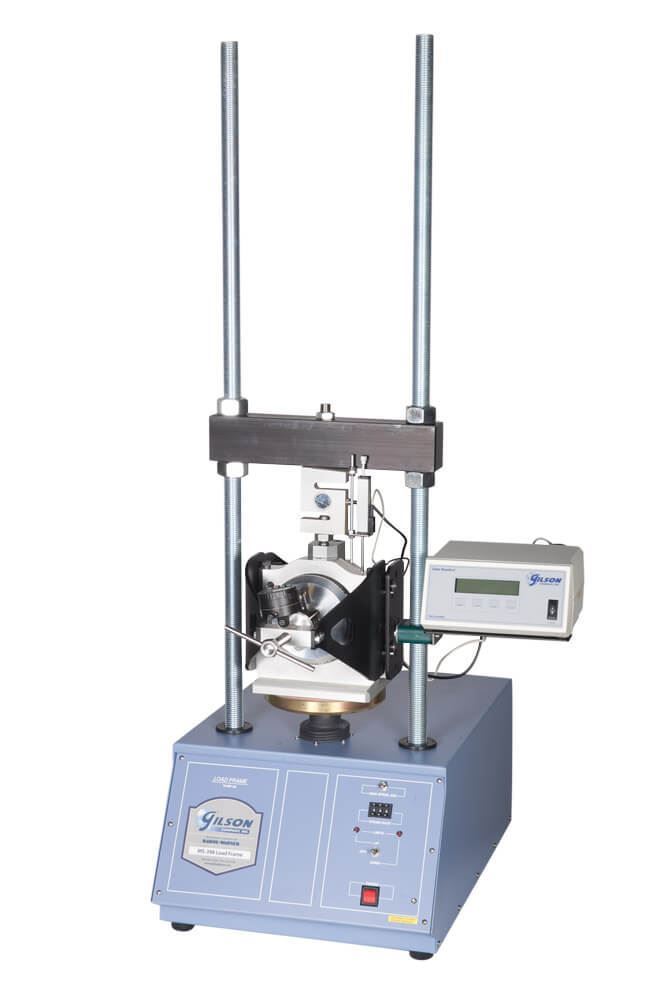

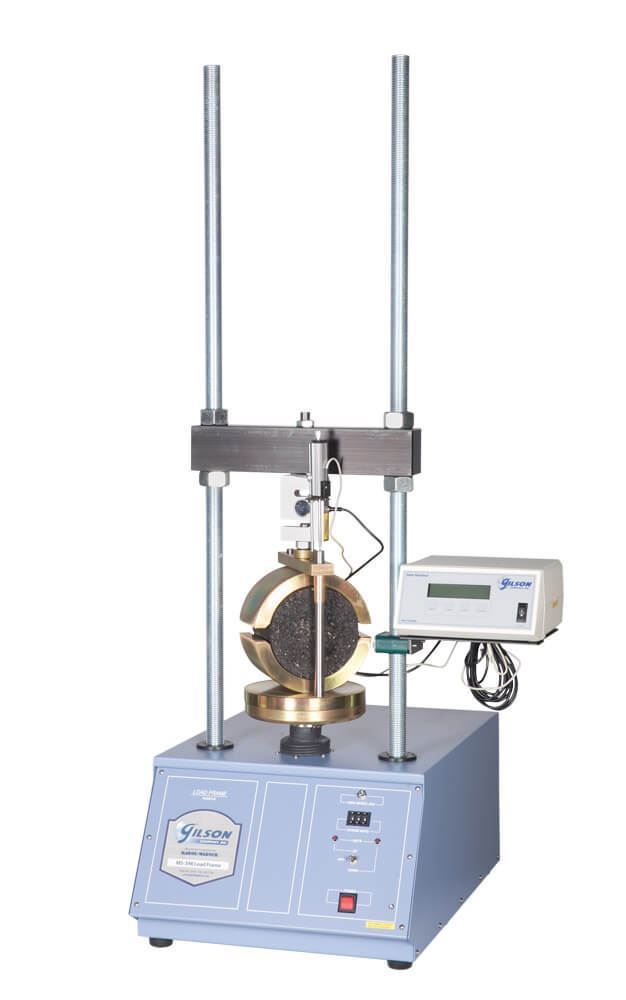

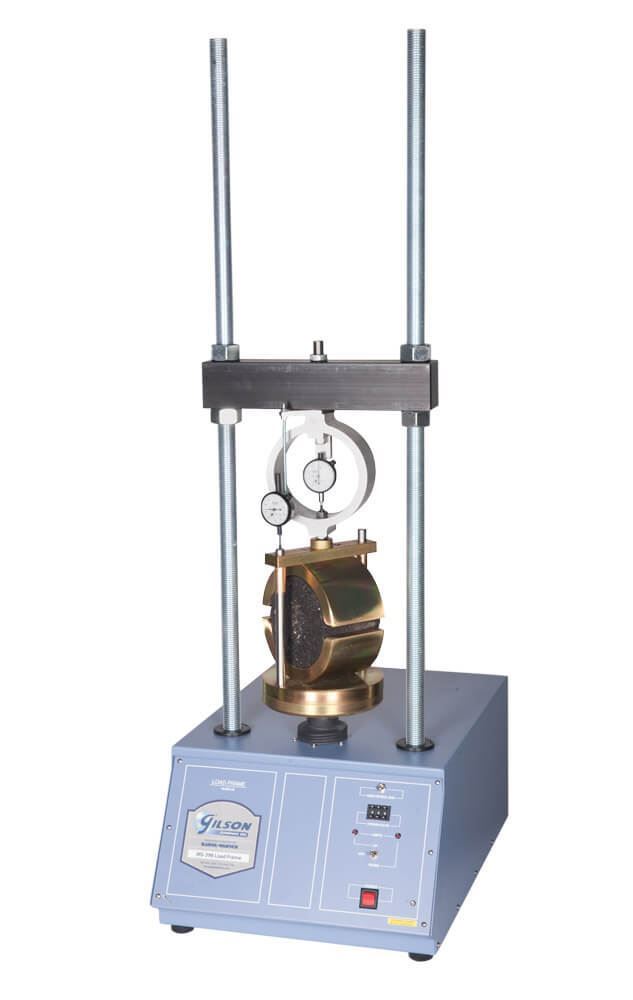

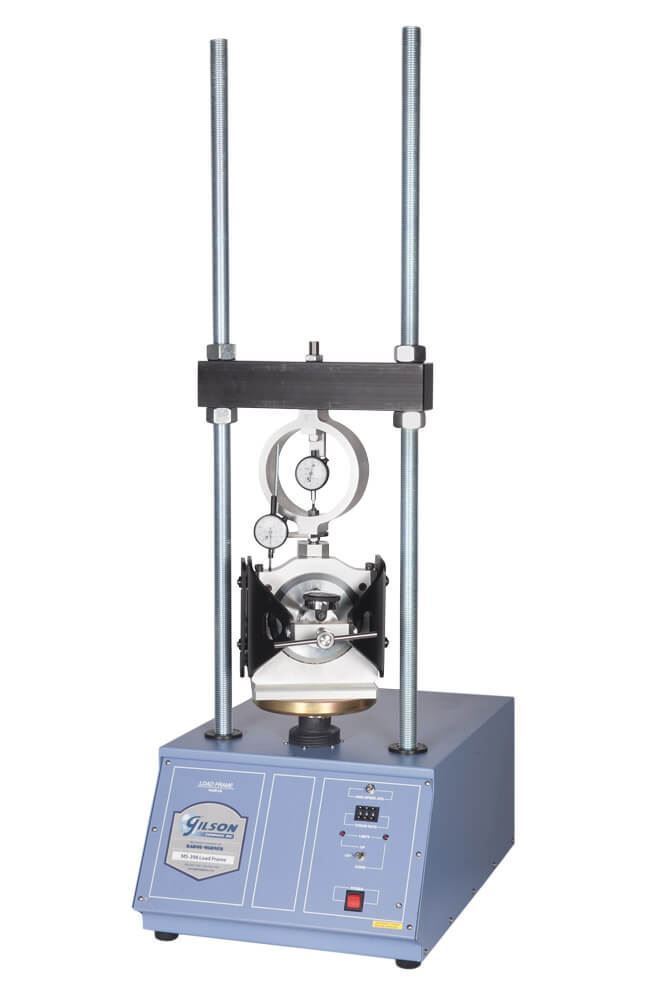

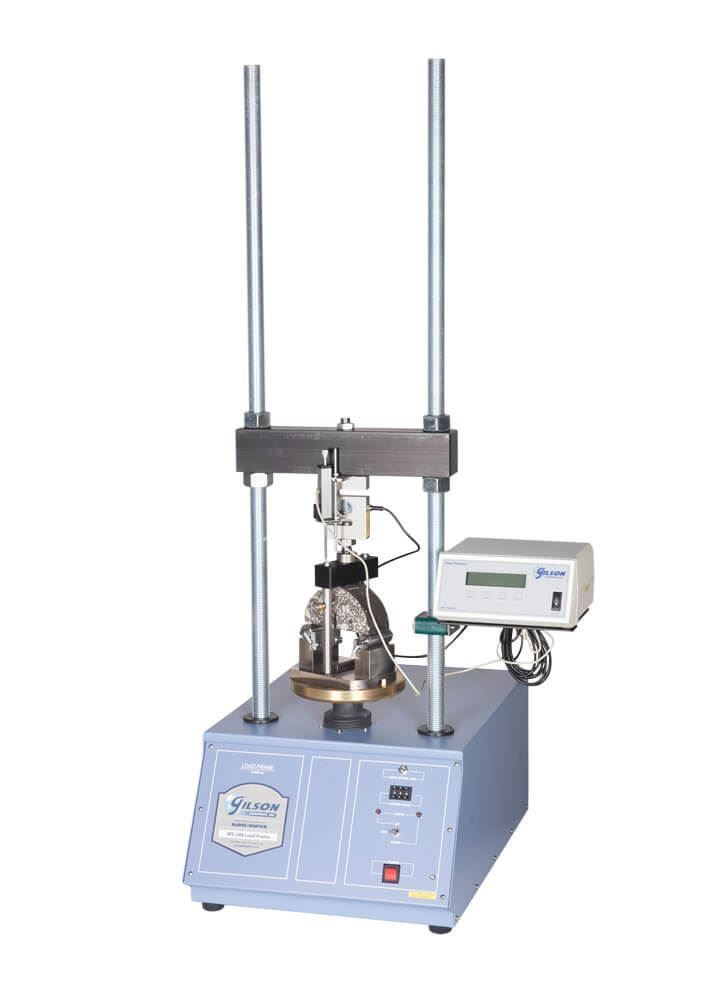

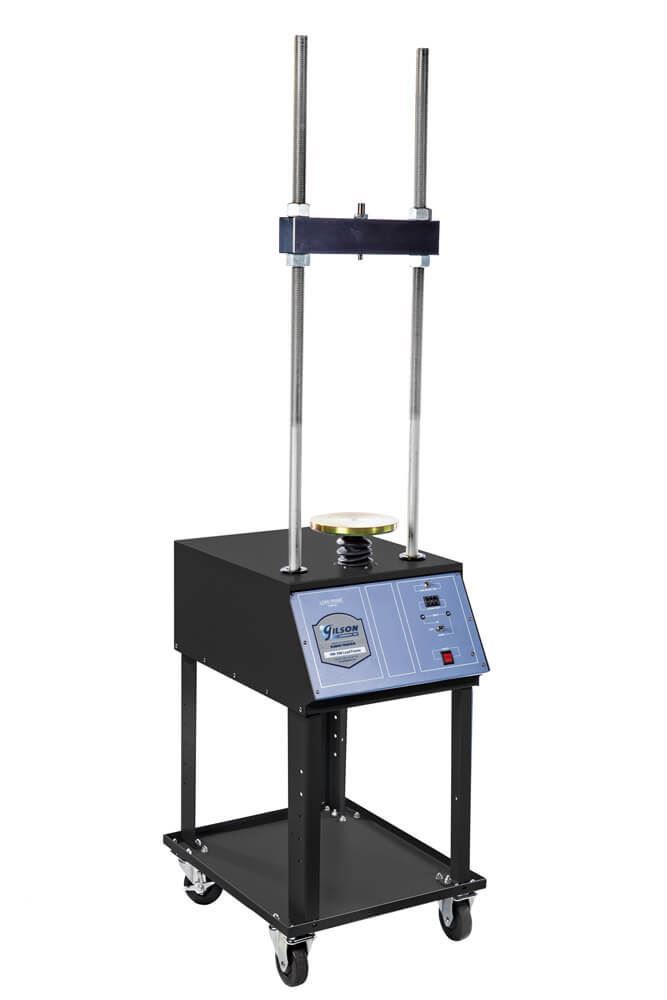

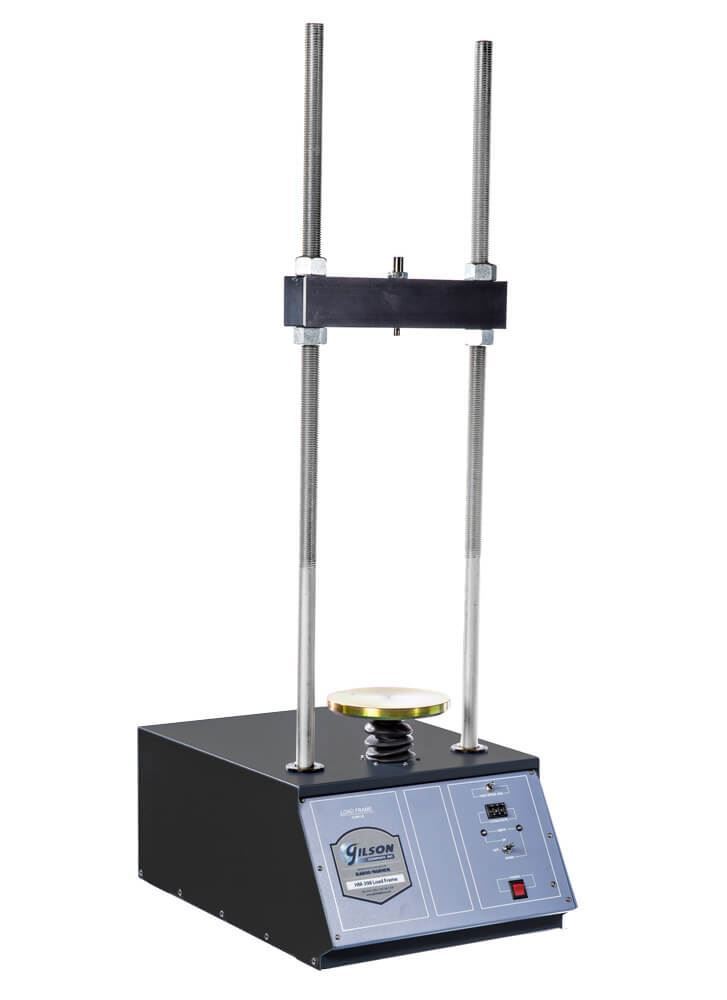

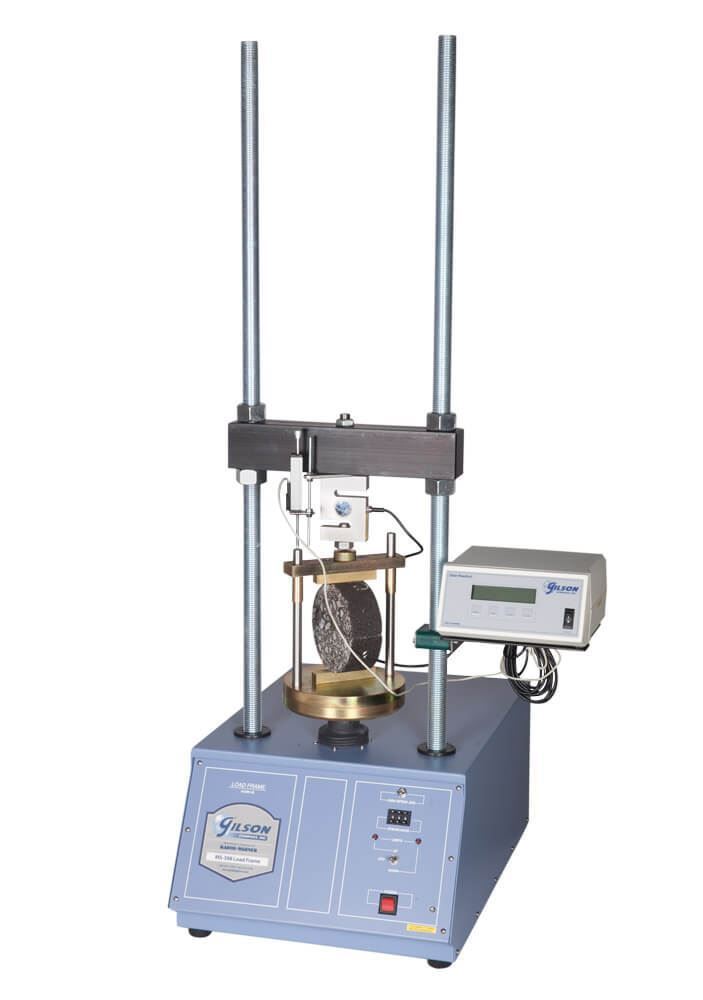

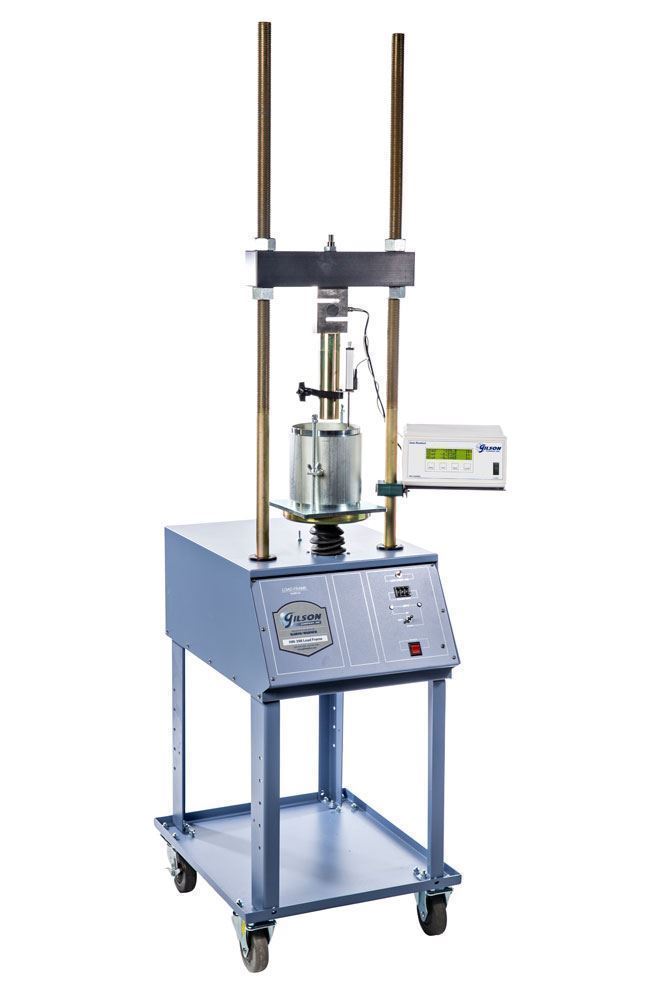

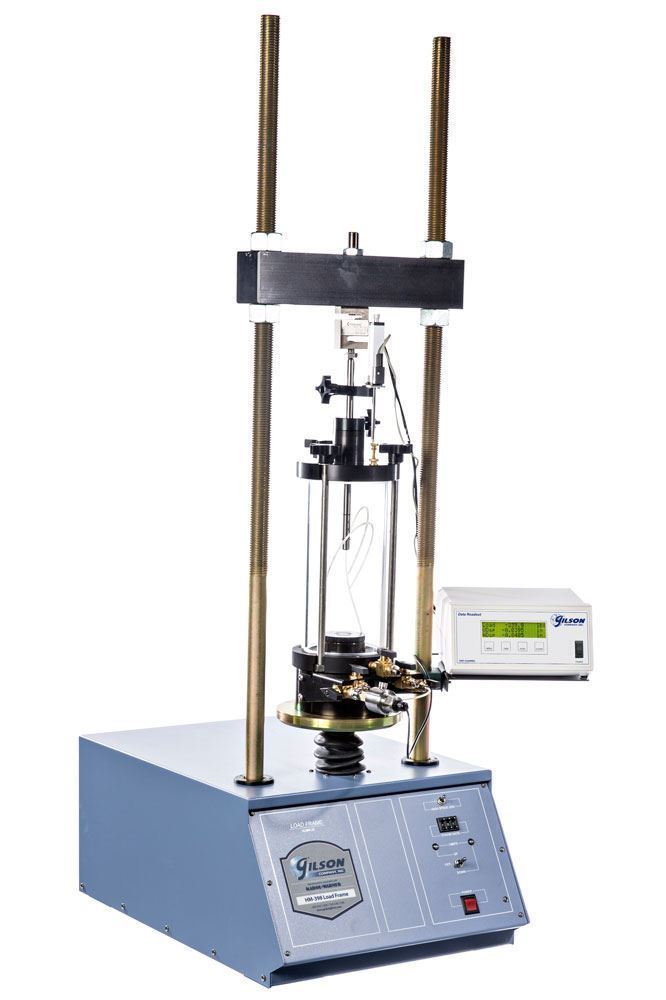

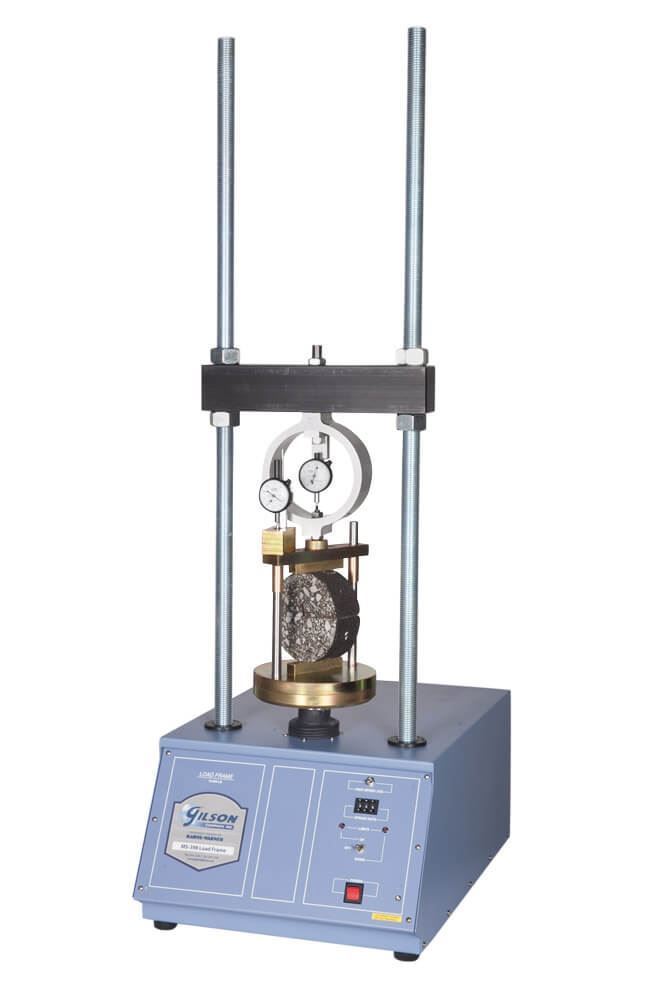

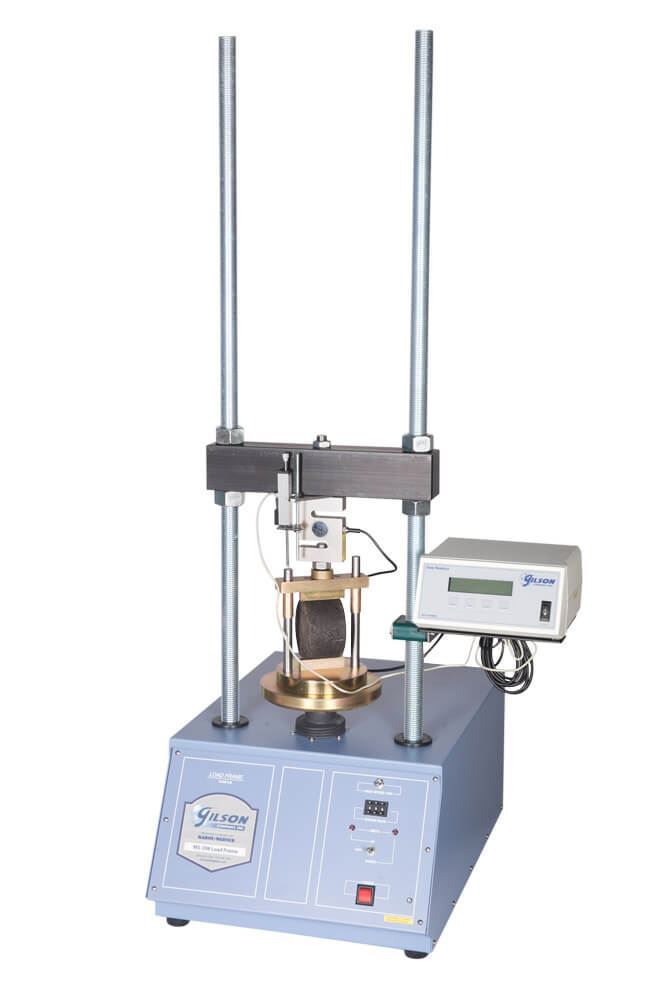

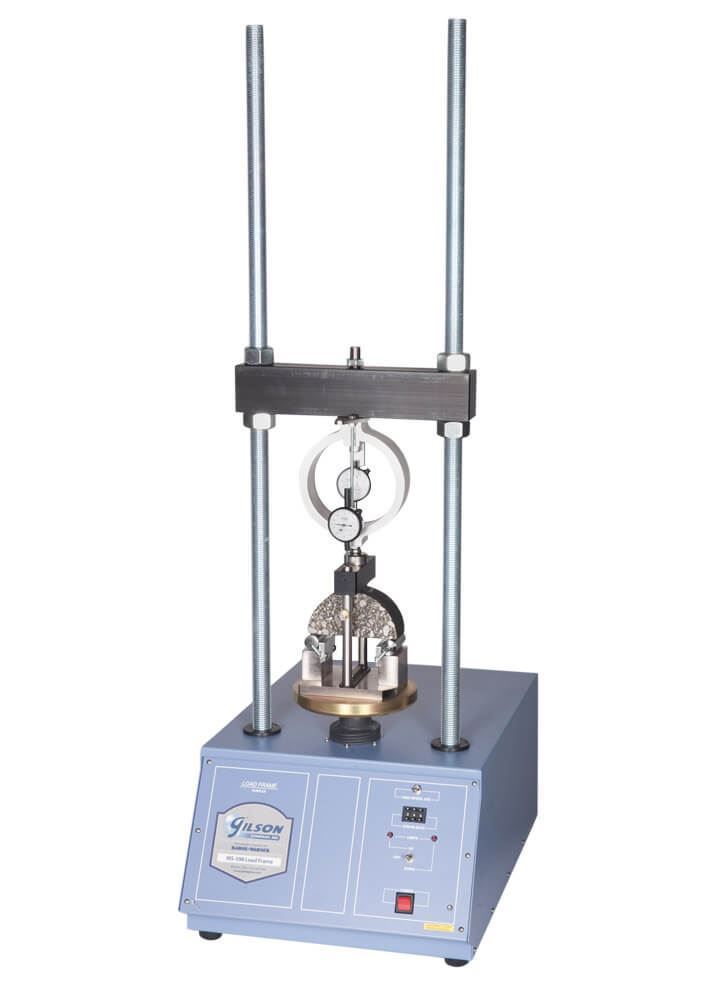

Gilson Load Frame, 0.02—2.0in/min, 10,000lbf is designed in cooperation with Karol-Warner to be adaptable for a wide range of laboratory soil tests. It has the highest overall strain rate of the Triaxial Load Frames, which allows use for a wider range of test methods. Digital and analog components and sets that attach to the Load Frame are available for Unconfined Compression, CBR, Soil Cement, and Triaxial testing, and sold separately.

The Load Frame has 10,000lbf (44.5kN) capacity and 11.9x37.3in (302x947mm) WxH frame opening. The unit runs on a 3/4hp DC motor and the controller regulates a strain rate of 0.02—2.0in/min (0.508—50.8mm/min) to ±1% of set point. This unit features a jog function that increases the speed of platen to the maximum speed of the load frame jack screw (2.0in/min), allowing for faster positioning of the 8in (203mm) diameter platen. Sturdy, powder-coated steel finish enclosure has adjusting nuts on the 1.25in (32mm) coarse-threaded rods to quickly adjust the horizontal cross-head height.

Features:

  • Highly adaptable Load Frame accommodates various soil tests
  • Capacity of 10,000lbf (44.5kN)
  • Powerful 3/4hp motor
  • The controller features higher overall strain rates

Included Items:

  • Load Frame, 0.02—2.0in/min (120V/50-60Hz or 230V/50-60Hz)

Accessories:

Load Capacity 10,000lbf (44.5kN)
Strain Rate 0.02—2.0in/min (0.508—50.8mm/min)
Rate of Load ±1%
Motor 3/4hp DC Motor
Electrical

HM-398: 120V/50-60Hz, 1200 Watts

HM-398F: 230V/50-60Hz, 1150 Watts

Frame Opening Dimensions 11.9 x 37.3in (302 x 947mm) WxH
Product Dimensions 18 x 29 x 54.5in (457 x 737 x 1,384mm), WxDxH
Estimated Shipping Weight 250.0lb (113.40kg)
