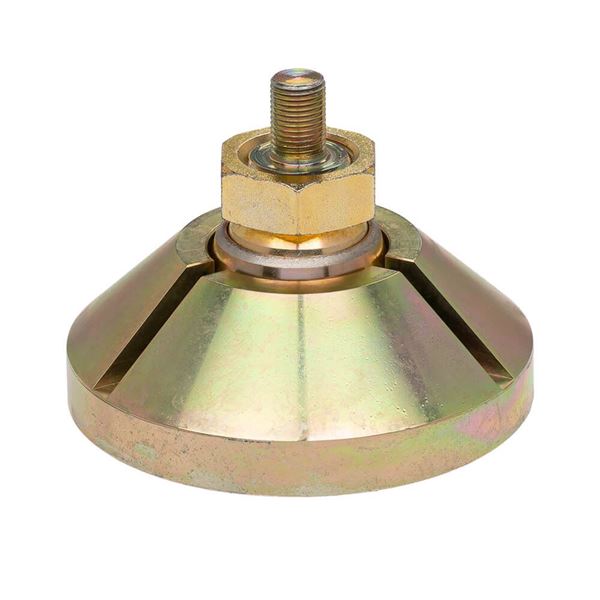

Swivel Top Platen

4.25in Swivel Top Platen (1/2in x 20tpi)

4.25in Swivel Top Platen (1/2in x 20tpi)

Model: HMA-129
$235.0000
Price: $235.00
4.25in Swivel Top Platen (3/4in x 16tpi)

4.25in Swivel Top Platen (3/4in x 16tpi)

Model: HMA-129B
$235.0000
Price: $235.00

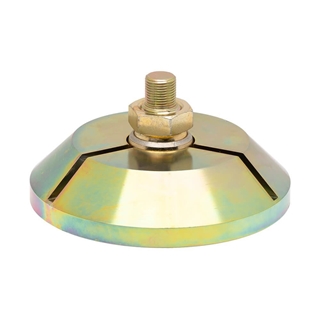

6.25in Swivel Top Platen (3/4in x 16tpi)

6.25in Swivel Top Platen (3/4in x 16tpi)

Model: HMA-129A
$265.0000
Price: $265.00

Swivel Top Platens are required to measure the compressive strength of soil-cement specimens in compliance with ASTM D1633. Platens distribute loads properly for soil-cement testing with Load Frames.

HMA-129 can test soil-cement samples up to 4in (102mm). It has a diameter of 4.25in with 1/2in x 20tpi attachment. Suitable for 500lbf to 2,500lbf S-type Load Cells and all Gilson Load Rings.

HMA-129B can also test soil-cement samples up to 4in (102)mm and has a diameter of 4.25in. The difference is, it has a 3/4in x 16tpi attachment. This model is available individually or is included in the HMA-687 and HMA-687D Soil-Cement Component Sets as a component. Suitable for use with 5,000lbf and 10,000lbf load cells.

HMA-129A can test soil-cement samples up to 6in (152mm). It has a diameter of 6.25in with 3/4in x 16tpi attachment.  Suitable for use with 5,000lbf and 10,000lbf load cells.

Included Items:

  • Swivel Top Platen (4.25in or 6.25in)

Accessories:

Diameter 4.25in (108mm) or 6.25in (158.8mm)
Estimated Shipping Weight 5.0lb (2.27kg)

Enter your name, email, and questions below and we will reply during business hours (8am - 5pm EST, Monday through Friday).

Diameter 4.25in (108mm) or 6.25in (158.8mm)
Estimated Shipping Weight 5.0lb (2.27kg)
Meets Standard(s):
