California Bearing Ratio (CBR) Mold Set

Model: BRA-60
$171.0000
Price: $171.00

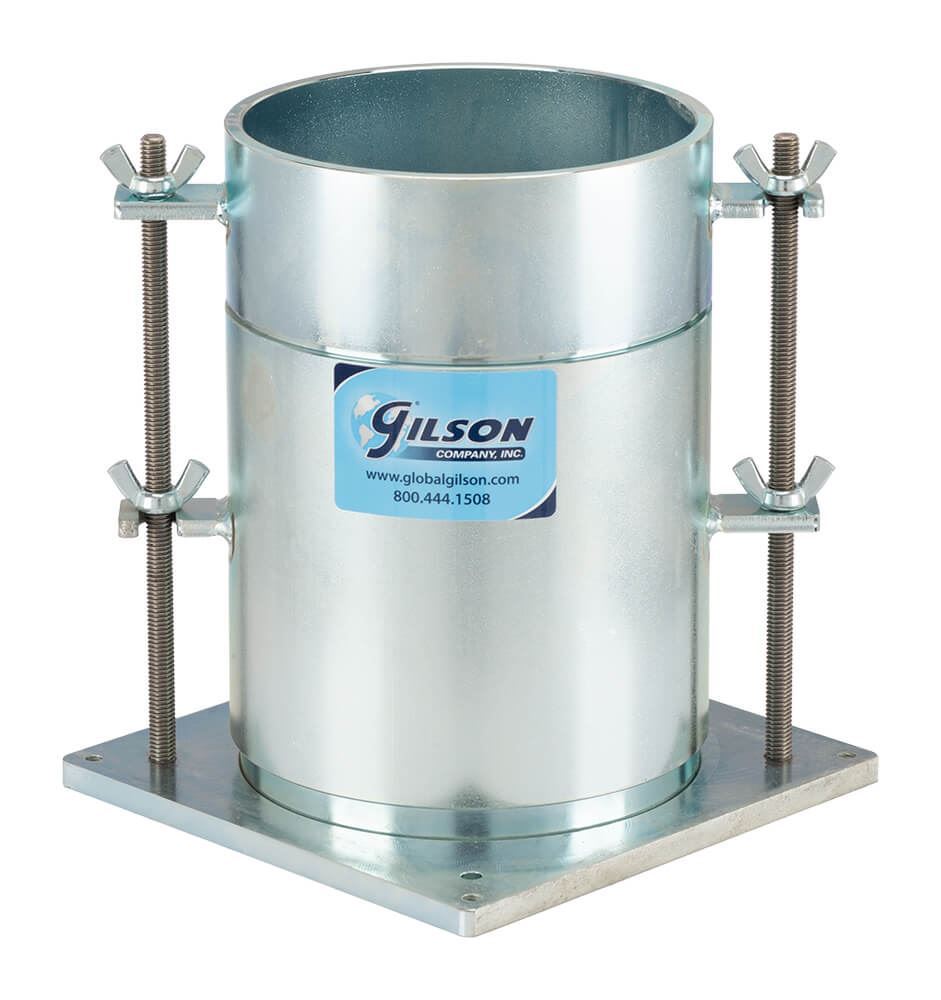

BRA-60 California Bearing Ratio (CBR) Mold Set is for use in CBR testing. The set consists of a 6x7in (152x178mm) Mold Body, 2in (51mm) Compaction Collar, and a perforated Mold Base with threaded rods and wing nuts. Constructed of heavy, rust-resistant plated steel. The Mold Body, Collar, and Base components are also available individually. The set and components can be used with Soil Compaction Hammers or with the HM-530 Mechanical Soil Compactor.

The BRA-60C Collar can be used with other Gilson LBR and CBR compaction molds, and can be used interchangeably on CBR and LBR molds as needed. BRA-61 CBR Spacer Disc can be used in the mold, and is purchased separately.

Features:

  • Meets ASTM/AASHTO requirements for CBR testing
  • Made of heavy steel, plated for rust resistance, and machined to exact dimensions

Included Items:

  • California Bearing Ratio (CBR) Mold Set

Accessories:

Specimen Size 6in (152mm)
Mold Dimensions 6 x 7in (152 x 178mm) I.D. x H
Estimated Shipping Weight 21.0lb (9.53kg)

Enter your name, email, and questions below and we will reply during business hours (8am - 5pm EST, Monday through Friday).

Specimen Size 6in (152mm)
Mold Dimensions 6 x 7in (152 x 178mm) I.D. x H
Estimated Shipping Weight 21.0lb (9.53kg)
Meets Standard(s):
