Soil Compaction Hammers

5.5lb Soil Compaction Hammer (Standard)

5.5lb Soil Compaction Hammer (Standard)

Model: HM-550
$74.0000
Price: $74.00
10lb Soil Compaction Hammer (Modified)

10lb Soil Compaction Hammer (Modified)

Model: HM-551
$92.0000
Price: $92.00
5.5lb Soil Compaction Hammer (C.O.E)

5.5lb Soil Compaction Hammer (C.O.E)

Model: HM-555
$156.0000
Price: $156.00
10lb Soil Compaction Hammer (C.O.E)

10lb Soil Compaction Hammer (C.O.E)

Model: HM-556
$232.0000
Price: $232.00

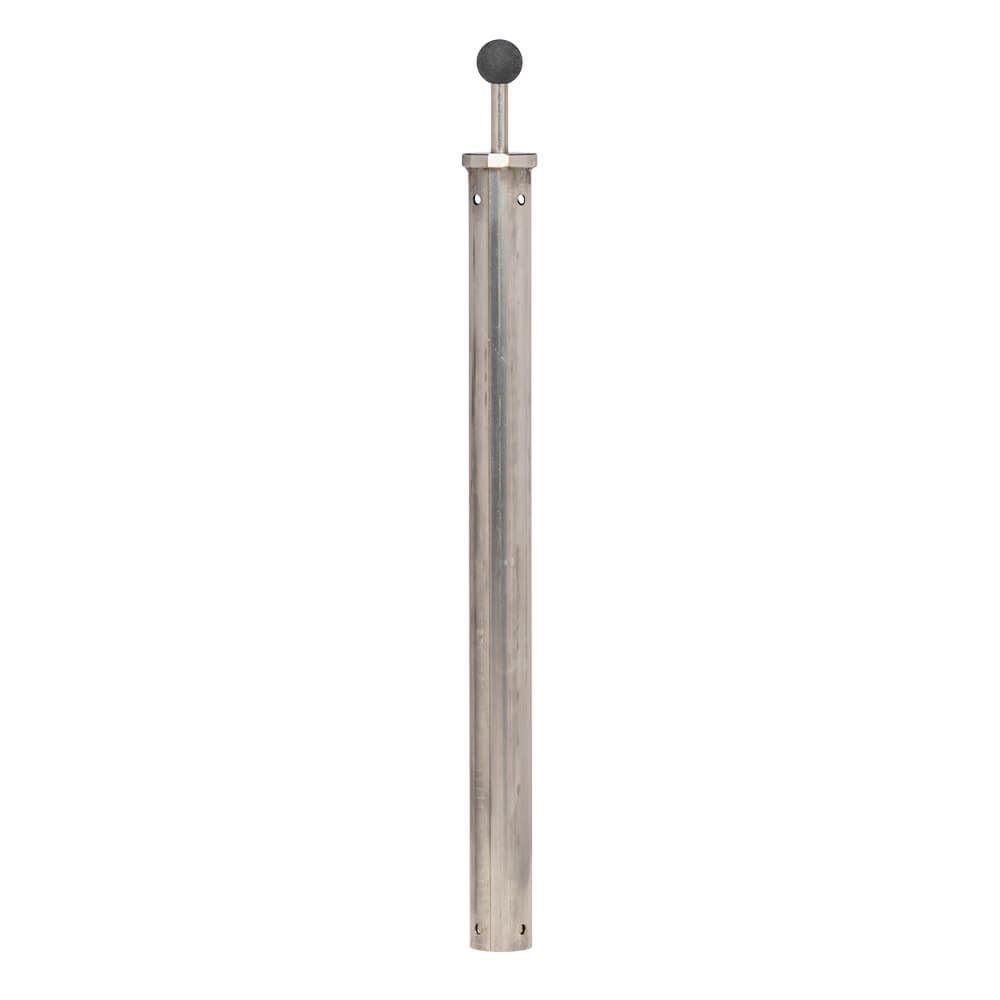

Soil Compaction Hammers are sliding drop proctor hammers used for compaction of moisture-density relationship (Proctor) soil samples. Only Gilson Hammers feature 100% 303 stainless steel construction for maximum corrosion resistance and long service life. Hammer masses are enclosed in guide sleeves with vent holes that ensure unrestricted free-fall.

The heavy knurled hexagonal cap is welded to the tube for a secure, comfortable grip during use and prevents rolling during storage. All hammer models have a 2in (51mm) flat, circular face.

The U.S. Army Corps of Engineers COE compaction hammers feature a recoil mechanism in the foot assembly to reduce wear on internal components, have a removable/replaceable tamping face, and allow for slight drop adjustability.

HM-550 Soil Compaction Hammer (Standard) has 5.5lb (2.5kg) hammer mass with 12in (305mm) drop.

HM-551 Soil Compaction Hammer (Modified) has 10lb (4.5kg) hammer mass and 18in (457mm) drop.

HM-555 Soil Compaction Hammer (C.O.E) has 5.5lb (2.5kg) hammer mass with 12in (305mm) drop.

HM-556 Soil Compaction Hammer (C.O.E) has 10lb (4.5kg) hammer mass and 18in (457mm) drop.

Features:

  • Gilson hammers feature exclusive 100% 303 stainless steel construction for corrosion resistance and have a knurled cap for a secure grip
  • COE hammers have a removable/replaceable tamping face, foot recoil mechanism, and slight drop adjustability

Included Items:

  • Manual Compaction Hammer
Product Dimensions

HM-550: 21 x 2.2in (533 x 55mm) LxDia.

HM-551: 31 x 2.2in (787 x 55mm) LxDia.

Material HM-550 and HM-551 models: 100% 303 Stainless Steel
Estimated Shipping Weight

HM-550: 9.0lb (4.08kg)

HM-551: 15.0lb (6.80kg)

HM-555: 15.0lb (6.80kg)

HM-556: 19.0lb (8.62kg)

Enter your name, email, and questions below and we will reply during business hours (8am - 5pm EST, Monday through Friday).

Product Dimensions

HM-550: 21 x 2.2in (533 x 55mm) LxDia.

HM-551: 31 x 2.2in (787 x 55mm) LxDia.

Material HM-550 and HM-551 models: 100% 303 Stainless Steel
Estimated Shipping Weight

HM-550: 9.0lb (4.08kg)

HM-551: 15.0lb (6.80kg)

HM-555: 15.0lb (6.80kg)

HM-556: 19.0lb (8.62kg)
