Liquid Limit Machines

Motorized Atterberg Liquid Limits Machine w/Counter (115V / 60Hz)

Motorized Atterberg Liquid Limits Machine w/Counter (115V / 60Hz)

Model: SA-60
$773.0000
Price: $773.00

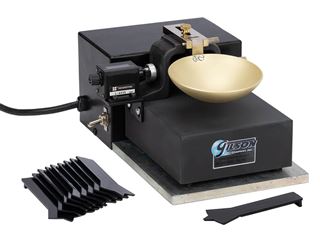

Motorized Atterberg Liquid Limits Machine w/ Counter (230V / 50Hz)

Motorized Atterberg Liquid Limits Machine w/ Counter (230V / 50Hz)

Model: SA-60F
$813.5000
Price: $813.50
Hand-Operated Atterberg Liquid Limits Machine

Hand-Operated Atterberg Liquid Limits Machine

Model: SA-61
$302.5000
Price: $302.50
Hand-Operated Atterberg Liquid Limits Machine w/Counter

Hand-Operated Atterberg Liquid Limits Machine w/Counter

Model: SA-62
$379.0000
Price: $379.00

Liquid Limit is the water content at which soil changes from a liquid to a plastic state, defined as a point where two halves of a soil sample flow together when jarred 25 times in a specified manner using a Liquid Limit machine.

Gilson offers motorized or hand-crank operated machines with either an automatic impact counter, or a cost-effective hand-crank model without counter. All models consist of a brass cup and carriage designed to control drop to exactly 1cm onto a hard rubber base. Height of drop is adjusted by a nut at the rear of the cup carriage using the gauge at one end of the included plastic Casagrande Grooving Tool, model SAA-10P. The cup attaches to the carriage by a pin, for easy removal when cleaning or inspecting. All mechanical parts are machined from solid brass and rubber feet isolate the base from the work surface.

SA-60 Motorized Liquid Limit Machine, 115V/60Hz, with counter is most accurate with use of a special geared motor assuring proper operating speed of 1.9—2.1 drops per second. An on-off switch is provided.

SA-60F Motorized Liquid Limit Machine is identical, but with 230V/50Hz.

SA-61 Hand-Operated Liquid Limit Machine does not have a counter and is a more economical option.

SA-62 Hand-Operated Liquid Limit Machine with Counter offers a more automated, cost-effective option.

Features:

  • Variety of motorized or hand-crank options to fit your application and budget
  • Complete control of drop to 1cm
  • Easily removable cup for cleaning or inspection

Included Items:

  • SA-60 Motorized Liquid Limit Machine, 115V/60Hz or
    SA-60F Motorized Liquid Limit Machine, 230V/50Hz, or
    SA-61 Hand-Operated Liquid Limit Machine, or
    SA-62 Hand-Operated Liquid Limit Machine with Counter
  • Plastic Casagrande Grooving Tool

Accessories:

Product Dimensions

SA-60 Models: 14 x 14 x 14in (356 x 356 x 356mm), WxDxH

SA-61: 8 x 8 x 6in (203.2 x 203.2 x 152.4mm), WxDxH

SA-62: 12 x 8 x 8in (304.8 x 203.2 x 203.2mm), WxDxH

Estimated Shipping Weight

SA-60: 18.0lbs (8.16kg)

SA-60F: 18.0lbs (8.16kg)

SA-61: 5.0lbs (2.27kg)

SA-62: 5.0lbs (2.27kg)

Enter your name, email, and questions below and we will reply during business hours (8am - 5pm EST, Monday through Friday).

Product Dimensions

SA-60 Models: 14 x 14 x 14in (356 x 356 x 356mm), WxDxH

SA-61: 8 x 8 x 6in (203.2 x 203.2 x 152.4mm), WxDxH

SA-62: 12 x 8 x 8in (304.8 x 203.2 x 203.2mm), WxDxH

Estimated Shipping Weight

SA-60: 18.0lbs (8.16kg)

SA-60F: 18.0lbs (8.16kg)

SA-61: 5.0lbs (2.27kg)

SA-62: 5.0lbs (2.27kg)

Meets Standard(s):
