Liquid Limit / Plastic Limit Test Accessory Set

Model: SA-65
$182.0000
Price: $182.00

Liquid Limit / Plastic Limit Test Accessory Set contains the tools necessary to perform Atterberg liquid and plastic limit tests in accordance with ASTM D4318, AASHTO T 89, and AASHTO T 90. Liquid Limit Machines are sold separately.

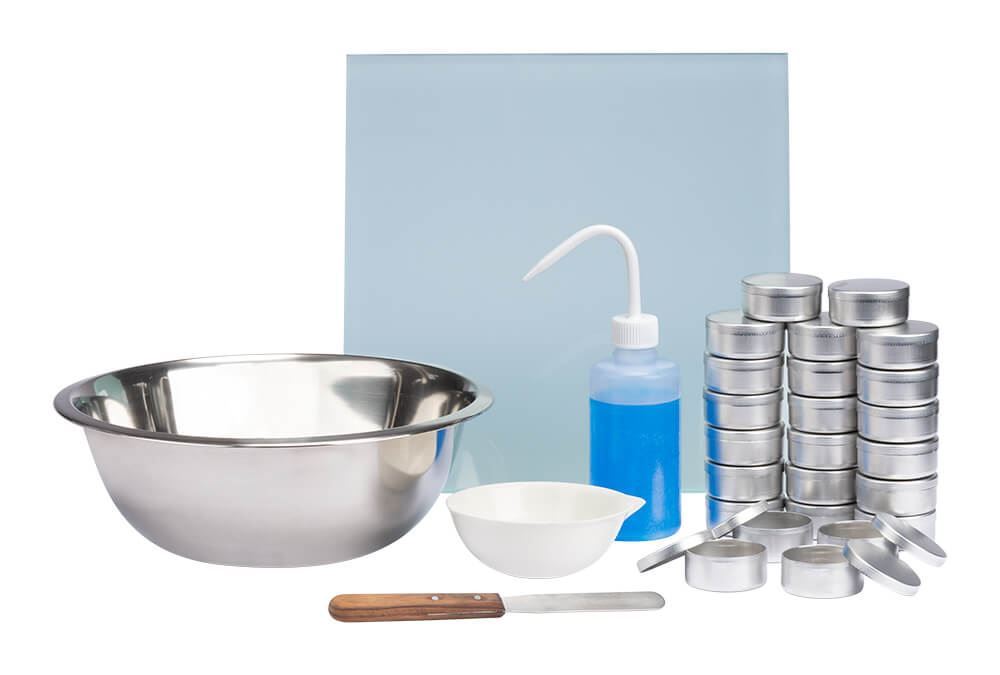

The Accessory Set includes a 250ml Porcelain Evaporating Dish, 12x12x0.375in (305x305x10mm) Glass Plate with seamed edges, 5qt Stainless Steel Pan, 250ml Wash Bottle, 7.8in (197mm) Spatula with wooden handle and 4x0.75in (102x19mm) stainless steel blade, and twenty-four 1.5oz Aluminum Sample Containers with lids.

Included Items:

  • Liquid Limit / Plastic Limit Test Accessory Set
    • Porcelain Evaporating Dish
    • Glass Plate
    • (24) Aluminum Sample Containers
    • Stainless Steel Pan
    • Spatula
    • Wash Bottle

Accessories:

  • MA-278 250ml Porcelain Evaporating Dish for mixing Atterberg limits samples and other lab applications. The bottom is unglazed
  • SA-66 Glass Plate with ground surface and seamed edges for testing soil plastic limits
  • SC-400 Aluminum Sample Containers are used for oven-dried moisture content determinations. Lids are included preventing moisture loss. (Package of 24)
  • SC-77 Stainless Steel Pan used in wet preparation methods with 8in (203mm) diameter sieves or for wash water when cleaning liquid limit cups, spatulas, and surfaces during Atterberg limit testing
  • HMA-10 Spatula has a stainless steel blade and wood handle used for mixing, stirring, and handling solids or liquids
  • HMA-24 Wash Bottle for squeeze dispensing of distilled water. Flow is adjustable by cutting the tip

Related blogs:

Capacity

MA-278 Evaporating Dish: 250ml

SC-400 Sample Containers: 1.5oz

HMA-24 Wash Bottle: 250ml

SC-77 Pan: 5qt

,

HMA-24 Wash Bottle: 250ml

SC-77 Stainless Steel Pan: 5qt

Dimensions

MA-278 Evaporating Dish: 4.7 x 1.7in (120 x 42mm), DiaxH

SA-66 Glass Plate: 12 x 12x 0.375in (305 x 305 x 10mm), WxDxH

SC-400 Sample Containers: 2 x 0.9in (51 x 23mm), DiaxH

SC-77 Pan: 11 x 3.5in (279.4 x 88.9mm) Dia.xH

HMA-10 Spatula: Blade is 4 x 0.75in (102 x 19mm) LxW and Overall Length is 7.8in (197mm)

Estimated Shipping Weight 10.0lb (4.54kg)

Enter your name, email, and questions below and we will reply during business hours (8am - 5pm EST, Monday through Friday).

Capacity

MA-278 Evaporating Dish: 250ml

SC-400 Sample Containers: 1.5oz

HMA-24 Wash Bottle: 250ml

SC-77 Pan: 5qt

,

HMA-24 Wash Bottle: 250ml

SC-77 Stainless Steel Pan: 5qt

Dimensions

MA-278 Evaporating Dish: 4.7 x 1.7in (120 x 42mm), DiaxH

SA-66 Glass Plate: 12 x 12x 0.375in (305 x 305 x 10mm), WxDxH

SC-400 Sample Containers: 2 x 0.9in (51 x 23mm), DiaxH

SC-77 Pan: 11 x 3.5in (279.4 x 88.9mm) Dia.xH

HMA-10 Spatula: Blade is 4 x 0.75in (102 x 19mm) LxW and Overall Length is 7.8in (197mm)

Estimated Shipping Weight 10.0lb (4.54kg)
Meets Standard(s):
