4in Soil Density Mold Sets

4in Soil Density Mold Sets are used when compacting soil samples for standard density/moisture (Proctor) tests. These molds can be used alone with Soil Compaction Hammers and will also fit the HM-530 Mechanical Soil Compactors. Complete Mold Sets include a 4x4.584in (102x116.4mm) IDxH mold, detachable extension collar and base plate. The rugged heavy steel sets are clear-zinc plated for rust resistance. Mold volume is 0.0333ft³ (943cm³). Mold Body, Base Plate and Extension Collar are each also available separately.

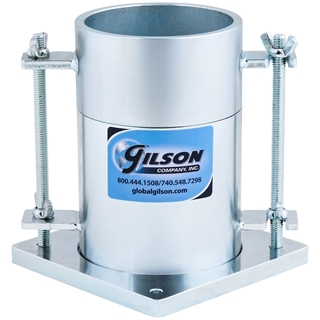

Sets are available with solid molds, designed for use with sample ejectors, or as vertically split molds that spring open slightly when clamps are released for easy sample removal.

HMA-110 Set includes a solid mold body, while the HMA-111 Set has a split mold.

Features:

• Optimal for various soil moisture-density relationship (Proctor) tests
• Solid or split-molds available for soil sample removal options
• Heavy plated steel molds are precision machined to meet specifications
• HMA-110C Collar is interchangeable among all Gilson 4in soil compaction molds

Included Items:

• 4in Soil Density Mold Set

Accessories:

• HMA-135 Stainless Steel Straight Edge used for trimming molded sample
• Soil Compaction Hammers constructed of 100% 303 stainless steel and used for compacting soil sample
• HM-514 Sample Ejector for 4in Molds Only for easy extrusion of compacted soil sample from mold
