Sample Ejectors

Sample Ejector for 4in Molds Only

Sample Ejector for 4in Molds Only

Model: HM-514
$510.0000
Price: $510.00
Sample Ejector for 4in or 6in Molds

Sample Ejector for 4in or 6in Molds

Model: HM-516
$576.0000
Price: $576.00

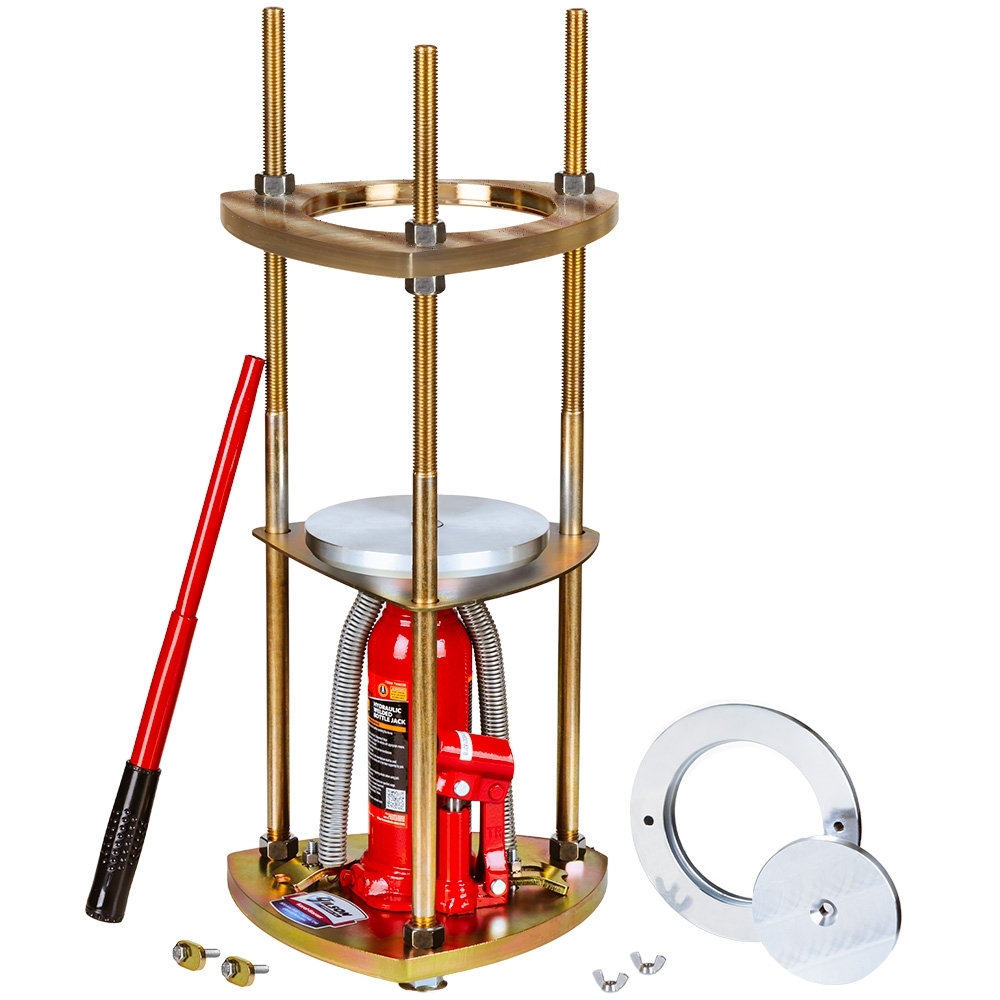

Gilson Sample Ejectors quickly and easily extrude compacted soil or asphalt specimens from 4in and 6in (102mm and 152mm) Soil-Density or Marshall molds. Adapter ring accessories allow soil samples from 2, 2.5 or 3in (51, 64, or 76mm) diameter Shelby tubes to be extruded. A 12,000lbf (53.4kN) capacity hydraulic jack with 5in (127mm) stroke is mounted in a robust three-column reaction frame constructed of plated steel. Molds are positioned vertically over the piston on a load platform that prevents the emptied mold from falling back over the jack. Daylight opening of the frame is adjustable for mold lengths up to 11.75in (279mm). Specimens longer than 5in are extracted by repositioning the Adapter Ring after maximum piston travel. The spring-loaded piston automatically returns to the start position when the stainless steel knob for the release valve is opened. Adapter Rings are quickly changed with just two wing-nuts, and Extruder Discs rest in place on top of the piston.

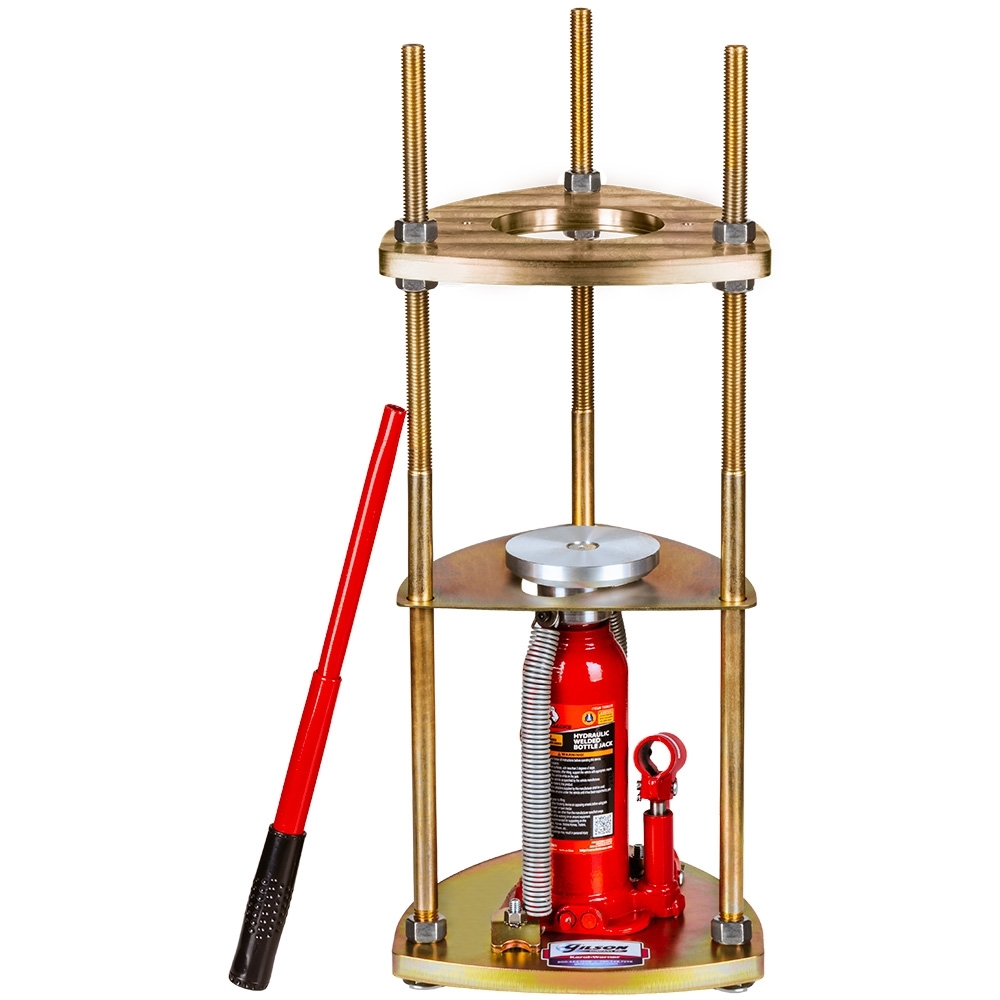

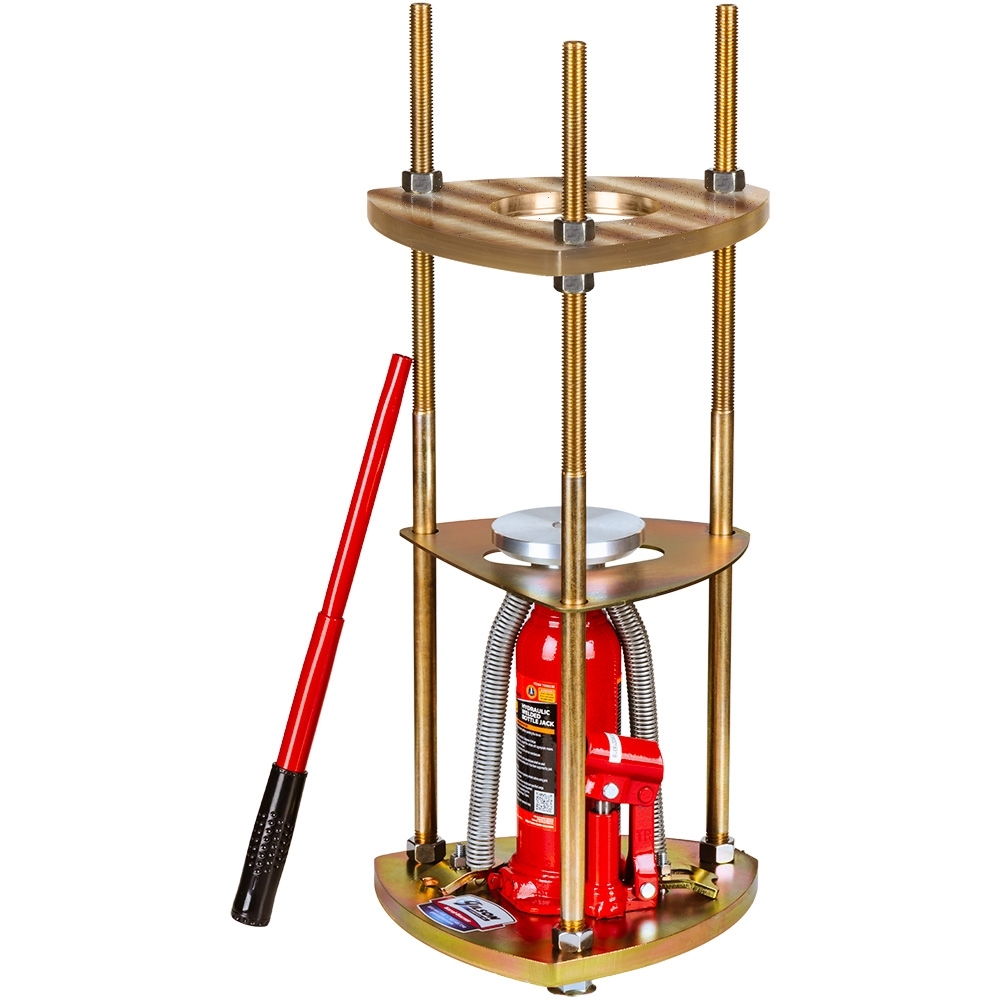

HM-514 Sample Ejector is equipped to handle 4in (102mm) soil compaction or Marshall Asphalt molds.

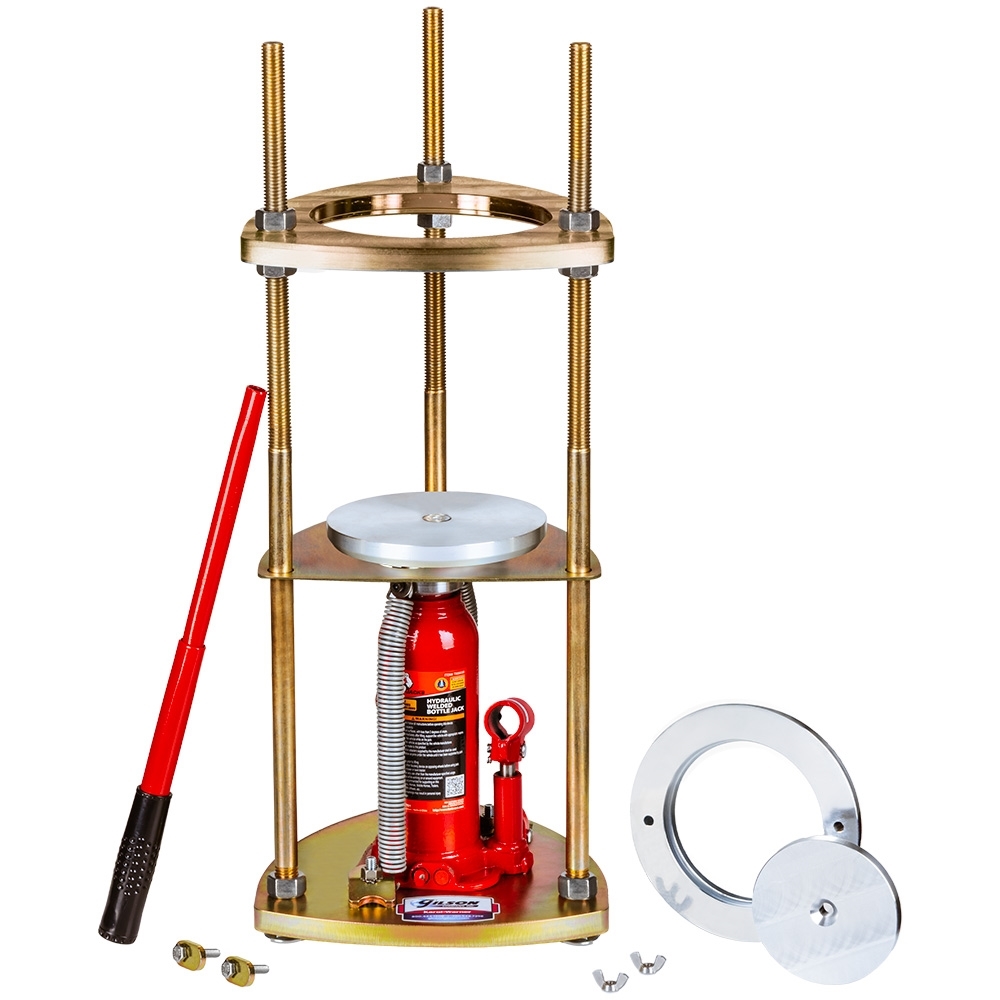

HM-516 Combination Sample Ejector extrudes either 4in (102mm) or 6in (152mm) soil or asphalt specimens.

Features:

  • 12,000lbf (53.4kN) capacity
  • Adjustable frame accommodates molds lengths up to 11.75in (279mm)
  • Spring-loaded piston automatically returns to start position by simply opening the release valve

Included Items:

  • Sample Ejector (for 4in Molds Only, or for 4in or 6in Molds)

Accessories:

Capacity 12,000lbf (53.4kN)
Product Dimensions 9.5 x 10 x 24in (241 x 254 x 610mm), WxDxH
Estimated Shipping Weight

HM-514: 48.0lb (21.77kg)

HM-516: 49.0lb (22.23kg)

Enter your name, email, and questions below and we will reply during business hours (8am - 5pm EST, Monday through Friday).

Capacity 12,000lbf (53.4kN)
Product Dimensions 9.5 x 10 x 24in (241 x 254 x 610mm), WxDxH
Estimated Shipping Weight

HM-514: 48.0lb (21.77kg)

HM-516: 49.0lb (22.23kg)
