Asphalt Component Sets

Asphalt Digital Component Set with 10,000lbf Load Cell (110V/50-60Hz)

Asphalt Digital Component Set with 10,000lbf Load Cell (110V/50-60Hz)

Model: MSA-860D
$1990.0000
Price: $1,990.00
Asphalt Digital Component Set with 10,000lbf Load Cell (230V/50-60Hz)

Asphalt Digital Component Set with 10,000lbf Load Cell (230V/50-60Hz)

Model: MSA-860DF
$1990.0000
Price: $1,990.00
Asphalt Analog Component Set with 10,000lbf Load Ring

Asphalt Analog Component Set with 10,000lbf Load Ring

Model: MSA-860
$826.5000
Price: $826.50

Asphalt Component Sets are available with analog or digital components to adapt to Marshall Stability Testers. The high-quality instrumentation is used to measure load and deformation in accordance with ASTM D6927 or D5581 and AASHTO T 245 and T283 requirements.

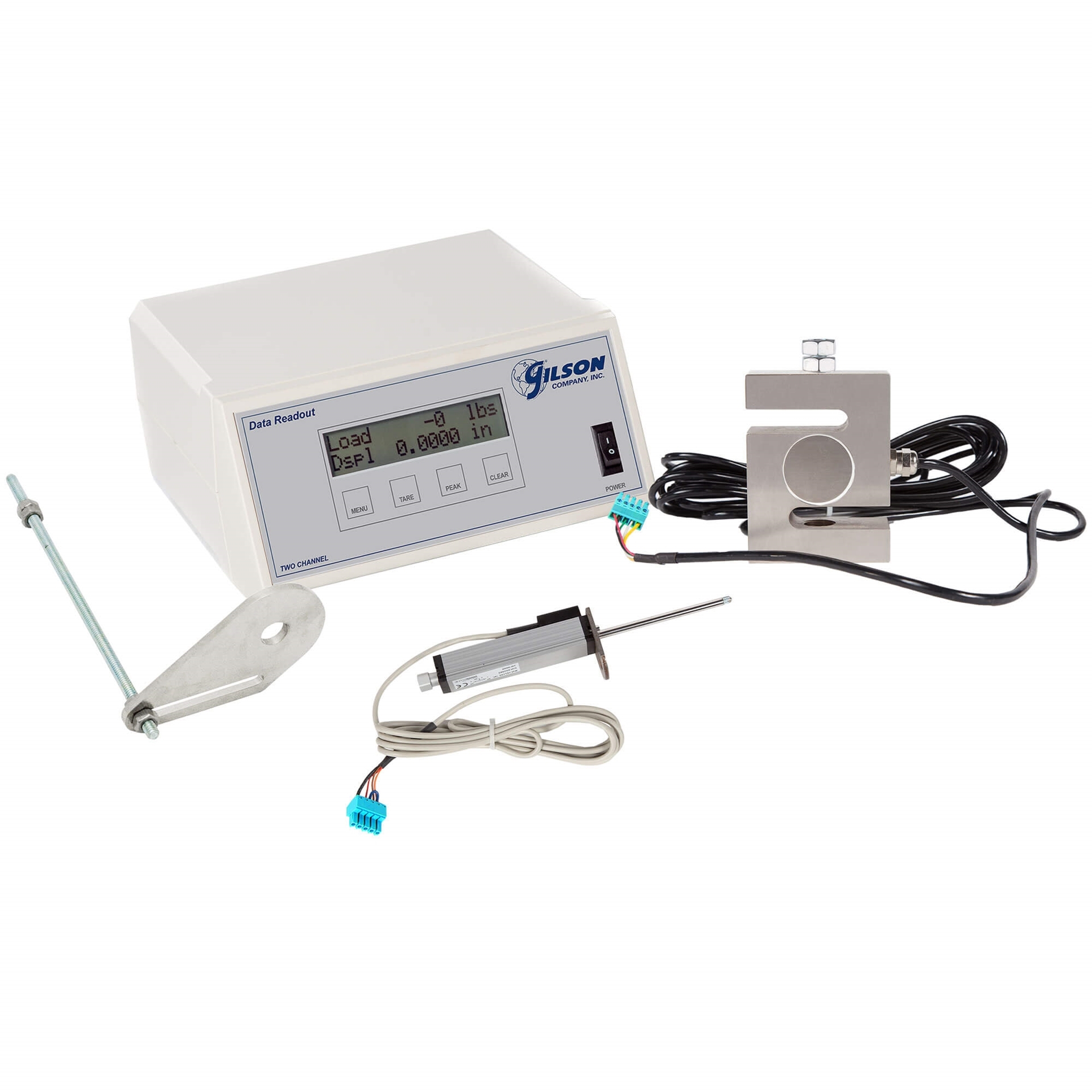

Digital Set includes components needed to transfer and display ASCII file formatted data in Marshall Stability Testing when connected to a user-supplied PC. Products contained in this digital set include the HM-430D 10,000lbf Load Cell, HM-740 2in Linear Variable Displacement Transducer, HM-418 Two-Channel Data Readout, and HMA-401 Bracket with 0.75in thread for Dial Indicator or Displacement Transducer. HMA-668 Readout Mounting Bracket to position data readouts is sold separately. Gilson's Data Acquisition Software can be purchased separately to obtain real-time testing data, calculations, and prepares reports in accordance with ASTM and AASHTO requirements.

Note: The Data Acquisition Software can only be used with digital component sets.

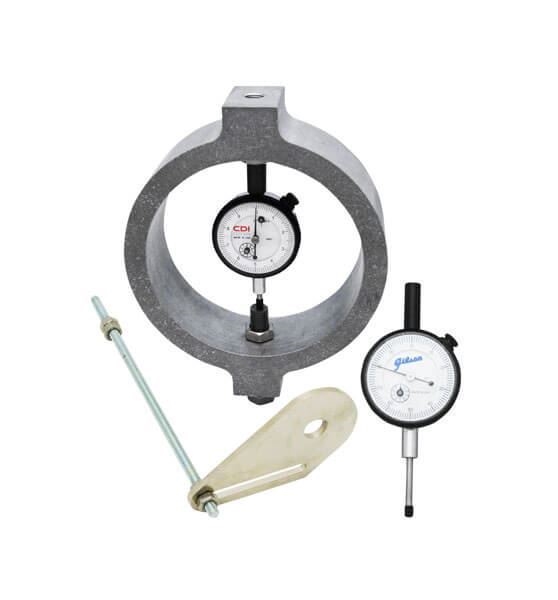

Analog Set includes the HM-430 10,000lbf high-strength aluminum alloy Load Ring with a factory calibration chart, 1x0.001in Mechanical Dial Indicator with low friction mechanism, and the HMA-339 Mounting Bracket for the Dial Indicator.

Features:

  • Components easily convert Load Frames to perform Marshall Stability Tests on hot-mix asphalt samples

Included Items:

  • Asphalt Digital Component Set
    • 10,000lbf Load Cell
    • 2in Linear Variable Transducer with Mounting Bracket
    • Two-Channel Data Readout (110V/50-60Hz or 230V/50Hz)
  • Asphalt Analog Component Set
    • 10,000lbf Load Ring
    • 1in Mechanical Dial Indicator
    • Dial Indicator Bracket

Accessories:

Load Capacity 10,000lbf
Estimated Shipping Weight

MSA-860D: 17.0lb (7.71kg)

MSA-860DF: 17.0lb (7.71kg)

MSA-860: 22.0lb (9.98kg)

Enter your name, email, and questions below and we will reply during business hours (8am - 5pm EST, Monday through Friday).

Load Capacity 10,000lbf
Estimated Shipping Weight

MSA-860D: 17.0lb (7.71kg)

MSA-860DF: 17.0lb (7.71kg)

MSA-860: 22.0lb (9.98kg)

Meets Standard(s):
