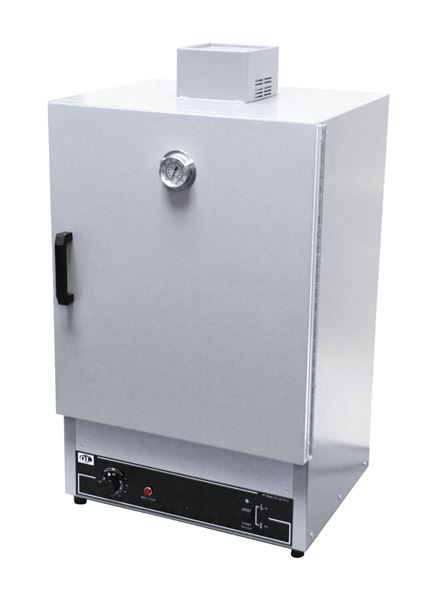

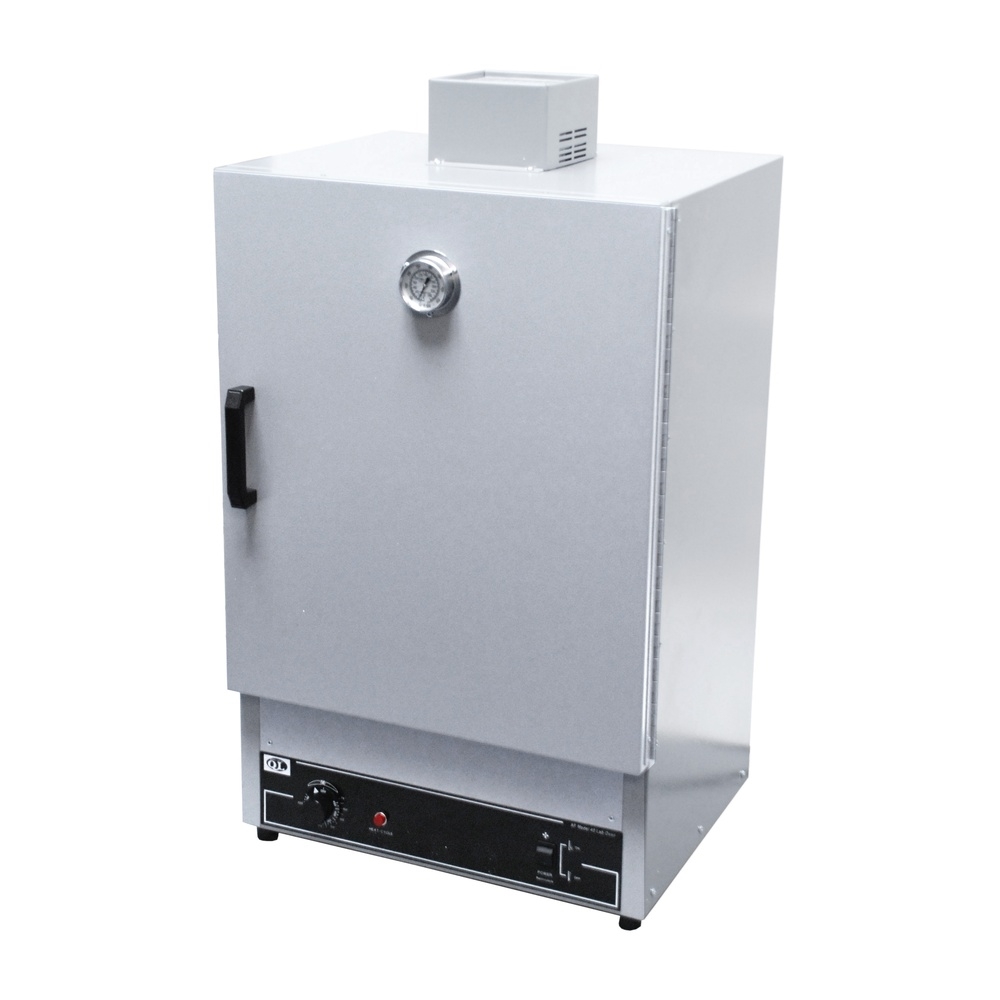

2.86ft³ Quincy Analog Lab Oven, 450°F Max (Forced-Air)

2.86ft³ Quincy Analog Lab Oven, 450°F Max (120V, 60Hz)

2.86ft³ Quincy Analog Lab Oven, 450°F Max (120V, 60Hz)

Model: BO-140
$1400.0000
Price: $1,400.00
2.86ft³ Quincy Analog Lab Oven, 450°F Max (230V, 50-60Hz)

2.86ft³ Quincy Analog Lab Oven, 450°F Max (230V, 50-60Hz)

Model: BO-140F
$1430.0000
Price: $1,430.00

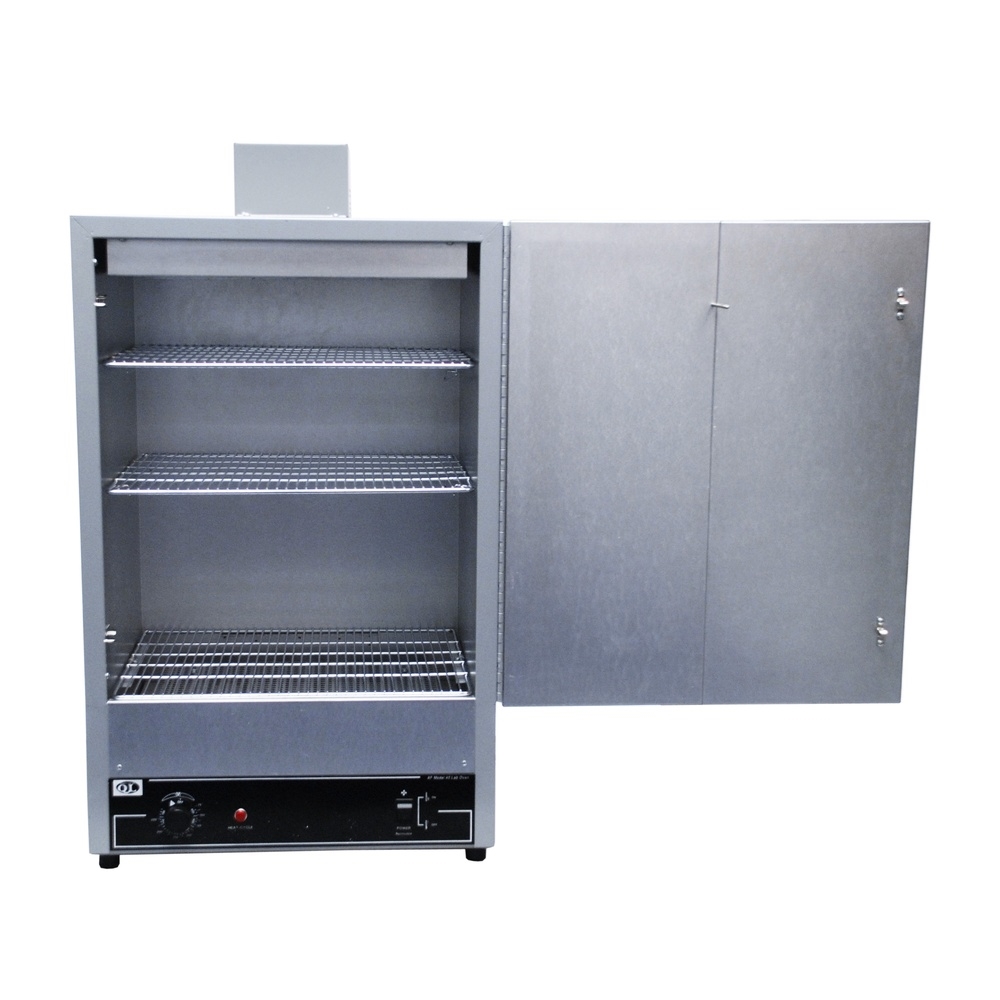

BO-140 Series Quincy Lab Ovens have a 2.86ft³ (82L) capacity with forced-air convection, hydraulic thermostat, 450°F (232°C) maximum temperature, and ±3°C uniformity for drying and controlled heating applications. Single-door with a high-impact thermoplastic handle, these ovens have one fixed and two adjustable shelves; additional shelves are sold as optional accessories.

The control panel includes an illuminated on/off rocker switch and heat/cycle pilot light. Cabinets are heavy steel double-wall construction; the painted exterior has a durable, scratch-resistant hammer-tone finish. The interior is corrosion-resistant aluminized steel, with one-inch high-density mineral wool insulation between the interior and exterior walls. Inquire for an optional factory-installed BOA-5 12-Hour Timer to shut off operation at a preset time of up to 12 hours. A Hold feature allows for continuous operation.

Forced-air convection models include a special fan and air transfer plenum that allows the oven to maintain a more uniform temperature, and a door-mounted dual-range °F/°C dial thermometer. Unique engineering features include energy-efficient, low-watt density Incoloy-sheathed elements that allow for quick run-up and recovery times.

BO-140 Quincy Lab Oven operates on 120V, 60Hz and comes with a cord and NEMA 5-15P plug

BO-140F Quincy Lab Oven operates on 230V, 50-60Hz electrical and comes with a cord and NEMA 6-15P plug

Features:

  • 2.86ft³ (81L) capacity
  • 450°F (232°C) maximum temperature with ±3°C uniformity for drying and controlled heating applications
  • Hydraulic thermostat
  • Forced-Air convection
  • Special fan and air transfer plenum maintain a uniform temperature
  • Door-mounted dial thermometer
  • 3 shelf capacity accommodates a variety of uses

Included Items:

  • 2.86ft³ Lab Oven (120V, 60Hz or 230V, 50-60Hz)
  • Three shelves
  • Cord and plug
  • Door-mounted dial thermometer

Accessories:

Convection Forced-Air
Maximum Temperature 450°F (232°C)
Chamber Capacity 2.86ft³ (81L)
Uniformity ±3°C
Plug Rating

BO-140: NEMA 5-15P Plug

BO-140F: NEMA 6-15P Plug

Electrical

BO-140: 120V, 60Hz, 12.5 Amps

BO-140F: 230V, 50-60Hz, 7.2 Amps

Chamber Dimensions 18 x 14 x 19.8in (45.7 x 35.6 x 50.3cm), WxDxH
Product Dimensions 20 x 16.3 x 35in (50.8 x 41.4 x 89cm) WxDxH
Estimated Shipping Weight 99.0lb (44.91kg)

Enter your name, email, and questions below and we will reply during business hours (8am - 5pm EST, Monday through Friday).

Convection Forced-Air
Maximum Temperature 450°F (232°C)
Chamber Capacity 2.86ft³ (81L)
Uniformity ±3°C
Plug Rating

BO-140: NEMA 5-15P Plug

BO-140F: NEMA 6-15P Plug

Electrical

BO-140: 120V, 60Hz, 12.5 Amps

BO-140F: 230V, 50-60Hz, 7.2 Amps

Chamber Dimensions 18 x 14 x 19.8in (45.7 x 35.6 x 50.3cm), WxDxH
Product Dimensions 20 x 16.3 x 35in (50.8 x 41.4 x 89cm) WxDxH
Estimated Shipping Weight 99.0lb (44.91kg)
