Slake Durability Apparatus

Slake Durability Apparatus (115V / 60Hz)

Slake Durability Apparatus (115V / 60Hz)

Model: SA-80
$2400.0000
Price: $2,400.00
Slake Durability Apparatus (230V / 50Hz)

Slake Durability Apparatus (230V / 50Hz)

Model: SA-80F
$2400.0000
Price: $2,400.00

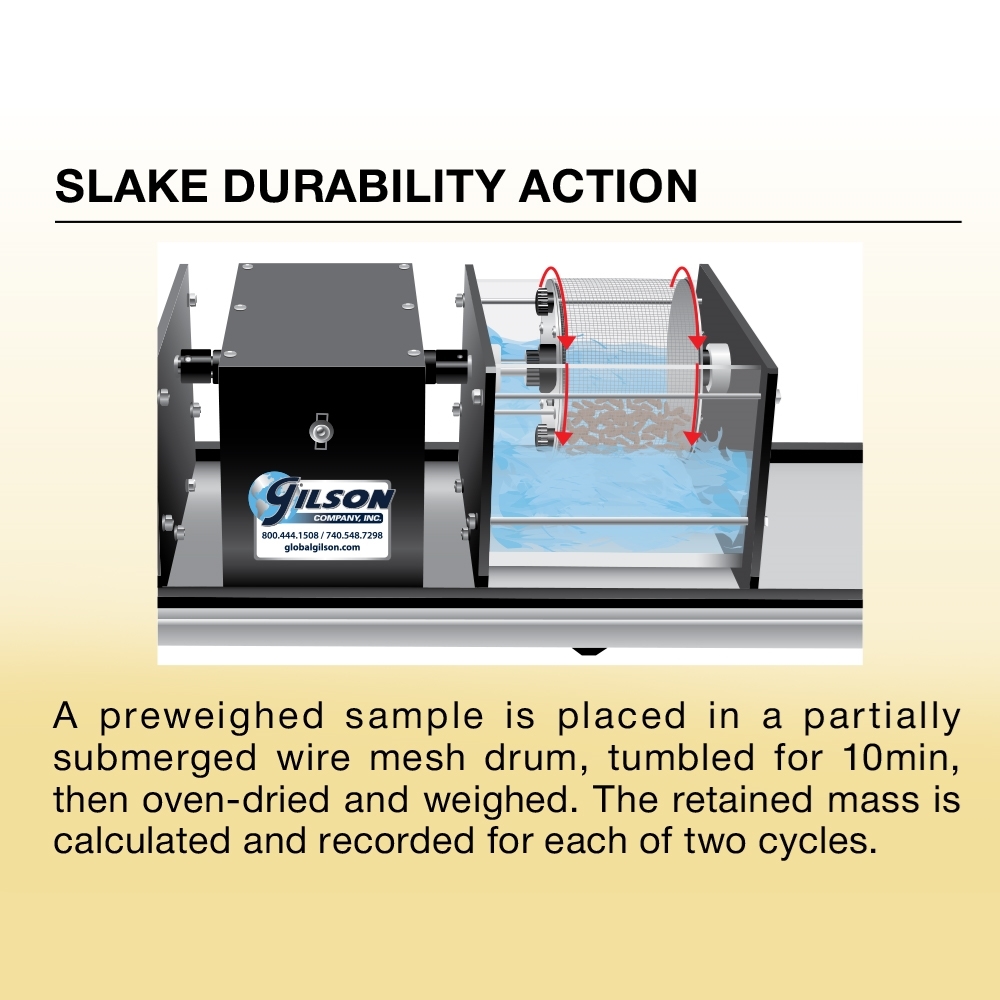

SA-80 Slake Durability Apparatus is used in simulated weathering tests to determine abrasion resistance in wetting and drying cycles of shale and similar soft rocks in embankments and other construction-related applications. In the test, samples are alternately tumbled in mesh drums through a water medium and oven-dried for two cycles. The percent loss of mass is referred to as the Slake Durability Index.

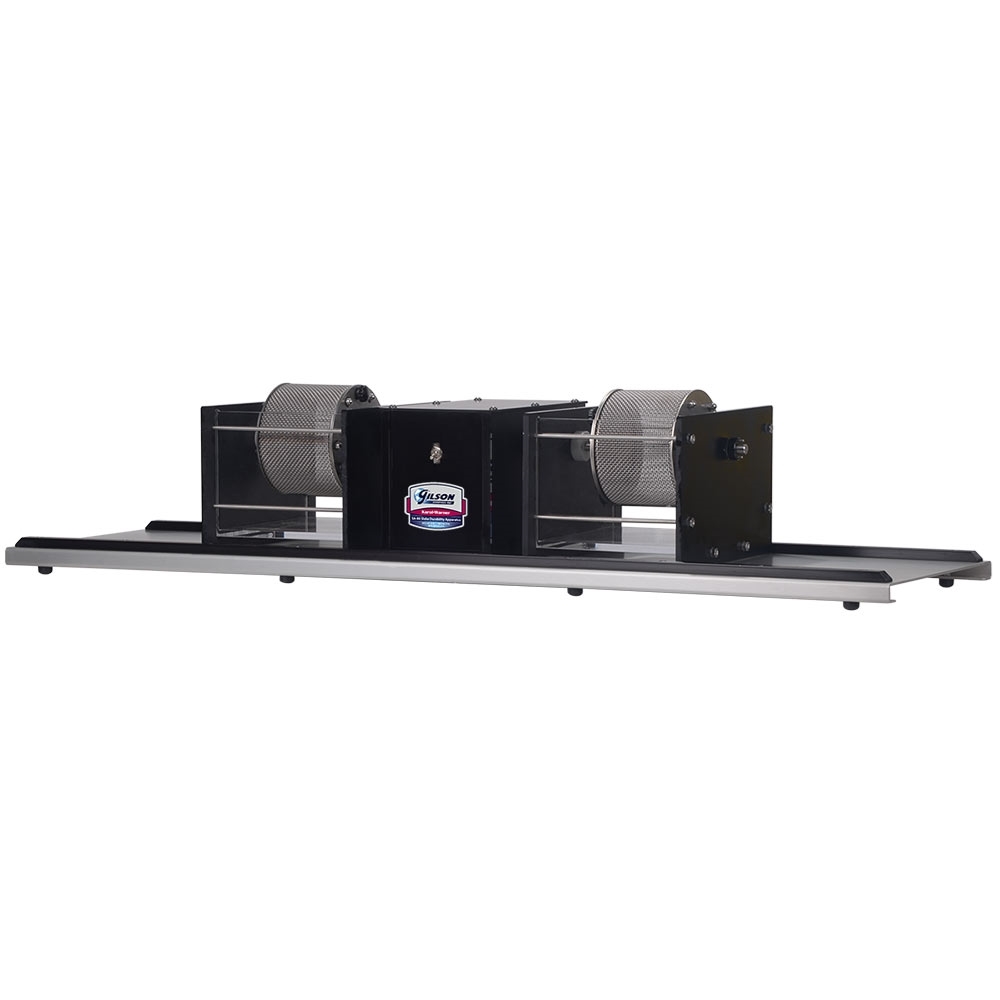

The device consists of a double-ended motor drive unit which rotates two 5.5x3.9in (140mmx100mm) dia. sturdy wire mesh drums at 20 revolutions per minute in water tanks. Two water tanks are included with the SA-80 and have built-in, quick-release drive units.

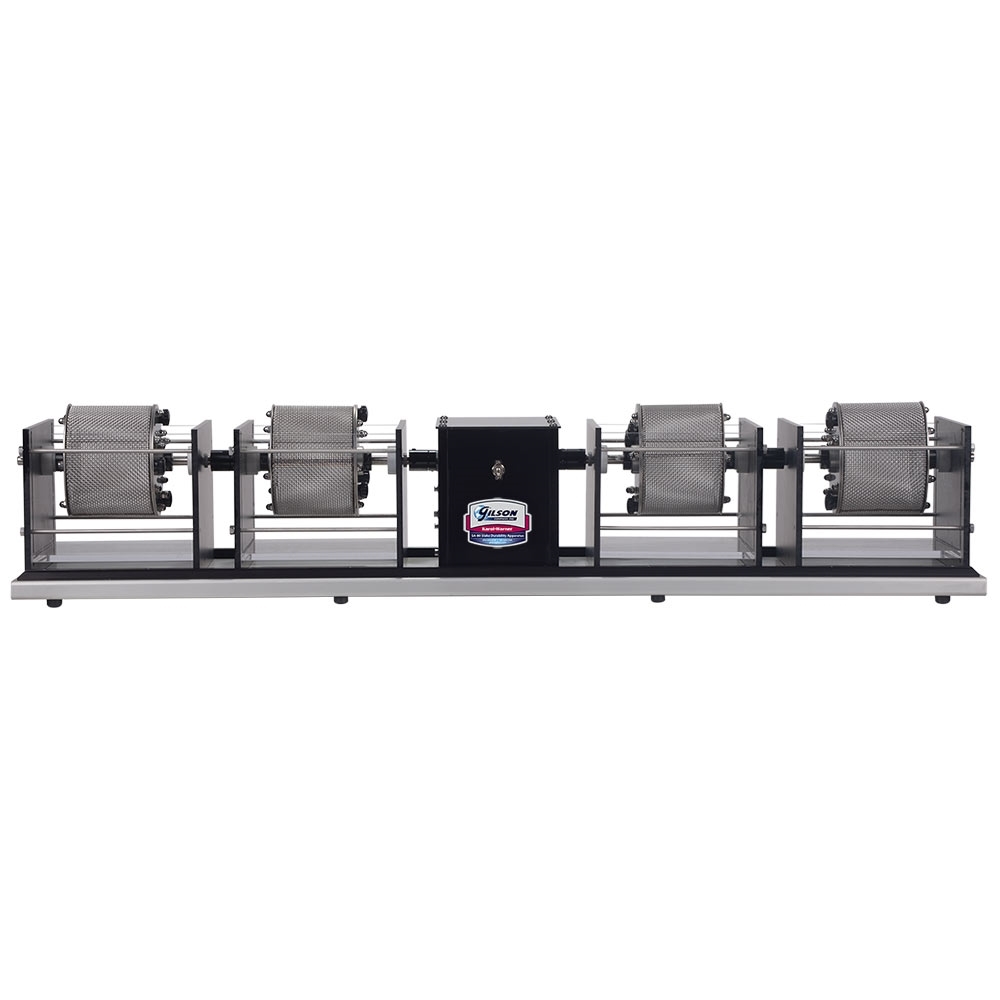

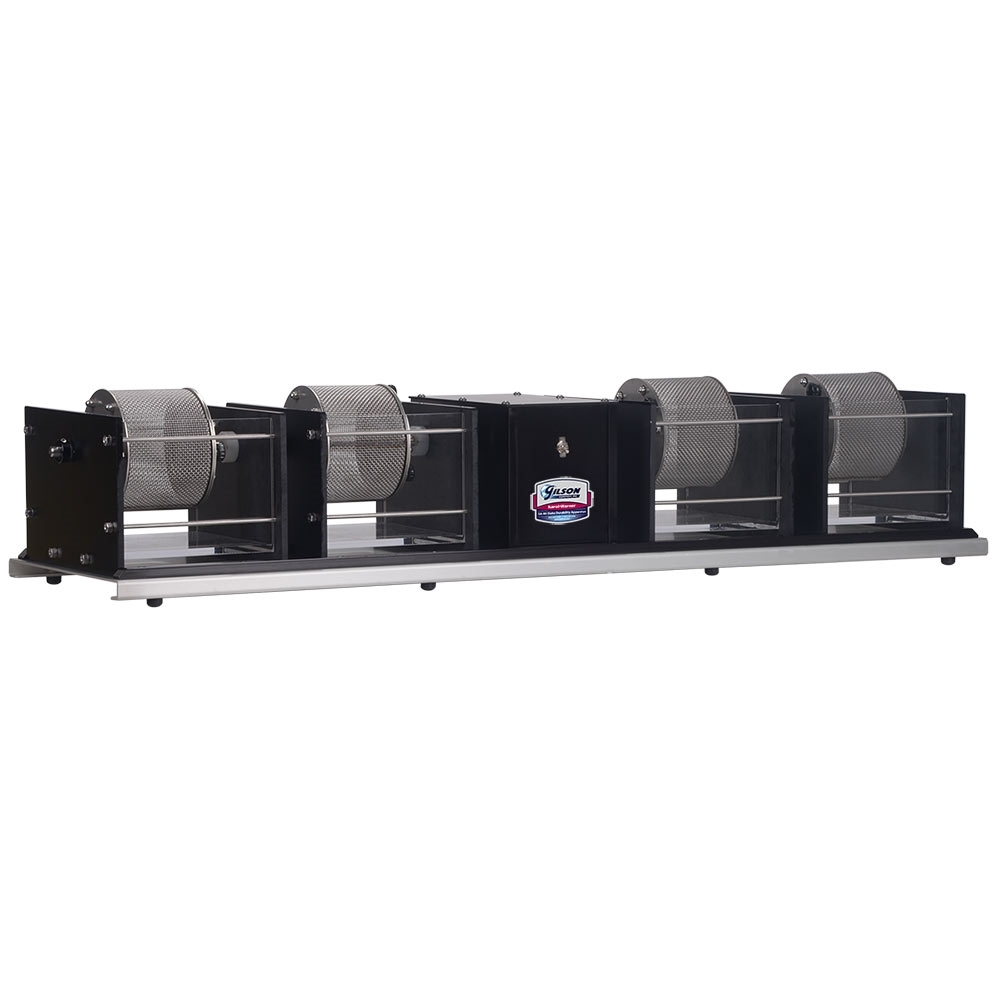

The 4ft (1,219mm) long base accommodates two additional SAA-30 Water Tank and Drum Assemblies for increased productivity when testing. A set of two SAA-31 Wire Mesh Drums is also available separately to allow for more sample preparation.

Features:

  • Base can hold up to four water tanks and drums
  • Determines Slake Durability Index

Included Items:

  • Slake Durability Apparatus
  • Two Water Tank and Drum Assemblies

Accessories:

Electrical

SA-80: 115V / 60Hz, 0.9Amps

SA-80F: 230V / 50Hz, 0.5Amps

Product Dimensions 48 x 14 x 9.25in (1,219 x 355 x 235mm), WxDxH
Estimated Shipping Weight 68.0lbs (30.84kg)

Enter your name, email, and questions below and we will reply during business hours (8am - 5pm EST, Monday through Friday).

Electrical

SA-80: 115V / 60Hz, 0.9Amps

SA-80F: 230V / 50Hz, 0.5Amps

Product Dimensions 48 x 14 x 9.25in (1,219 x 355 x 235mm), WxDxH
Estimated Shipping Weight 68.0lbs (30.84kg)
Meets Standard(s):
