CBR Component Sets

CBR Digital Component Set with 10,000lbf Load Cell (110V / 50-60Hz)

CBR Digital Component Set with 10,000lbf Load Cell (110V / 50-60Hz)

Model: HMA-685D
$2030.0000
Price: $2,030.00
CBR Digital Component Set with 10,000lbf Load Cell (230V/50-60Hz)

CBR Digital Component Set with 10,000lbf Load Cell (230V/50-60Hz)

Model: HMA-685DF
$2030.0000
Price: $2,030.00
CBR Analog Component Set with 10,000lbf Load Ring

CBR Analog Component Set with 10,000lbf Load Ring

Model: HMA-685
$936.5000
Price: $936.50
CBR Analog Component Set with 6,000lbf Load Ring

CBR Analog Component Set with 6,000lbf Load Ring

Model: HMA-684
$887.0000
Price: $887.00

CBR Component Sets are available with analog or digital components designed for quick installation on Load Frames and most other manufacturers. The components feature sophisticated instrumentation required to measure load and penetration for California Bearing Ratio (CBR) Tests. Each component in the set can be easily installed on the Load Frames with included fixtures.

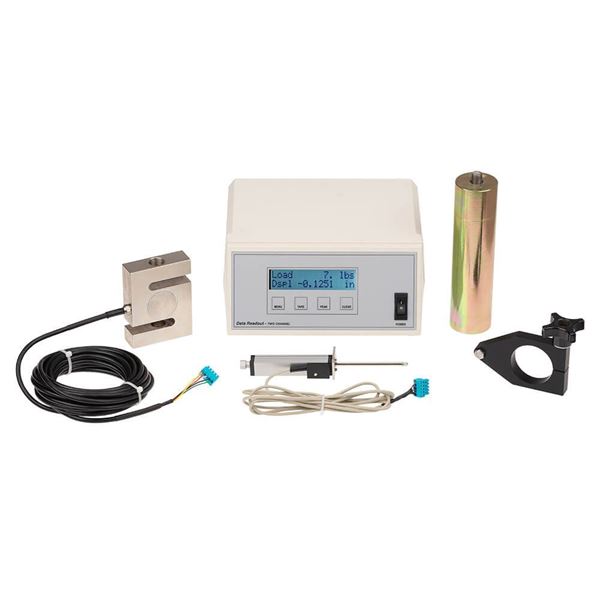

Digital Set includes a Two-Channel Data Readout, 10,000lbf (44.5kN) Load Cell, 2in (50.8mm) Linear Variable Displacement Transducer (LVDT) with a holder, and the CBR/LBR Penetration Piston. Gilson's Data Acquisition Software can be purchased separately to obtain real-time testing data, calculations, and prepares reports in accordance with ASTM and AASHTO requirements.

Note: The Data Acquisition Software can only be used with digital component sets.

Analog Set includes a 6,000lbf (26.7kN) or 10,000lbf (44.5kN) capacity Load Ring, CBR/LBR Penetration Piston, and a 1x0.001in Dial Indicator with a holder for displacement readings The Load Ring is machined from a high-strength aluminum alloy plate for repeatable compression measurements and is supplied with a calibration graph.

Features:

  • The digital design includes software for data transfer to the user’s PC
  • Simple installation of components on the load frame

Included Items:

  • Digital CBR Component Set
    • Two-Channel Data Readout (115V/50-60Hz or 230V/50-60Hz)
    • 10,000lbf Load Cell
    • 2in Linear Variable Displacement Transducer with Holder
    • CBR Penetration Piston
  • Analog CBR Component Set
    • Load Ring (6,000lbf or 10,000lbf)
    • CBR Penetration Piston
    • 1x0.001in Dial Indicator with Holder

Accessories:

Load Capacity

HMA-684 Model: 6,000lbf

HMA-685 Models: 10,000lbf

Electrical Data Readout: 115V/50-60Hz (HMA-685D model) or 230V/50-60Hz (HMA-685DF model)
Estimated Shipping Weight

HMA-685D: 25.0lb (11.34kg)

HMA-685DF: 25.0lb (11.34kg)

HMA-685: 16.0lb (7.26kg)

HMA-684: 16.0lb (7.26kg)
