Load & Displacement Readout Sets

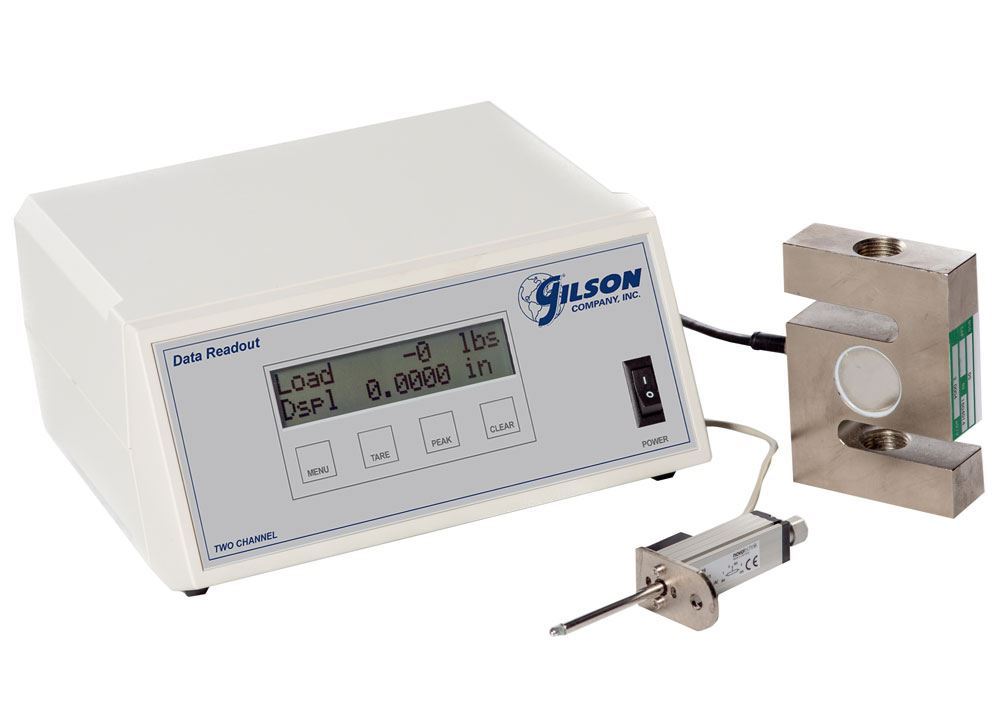

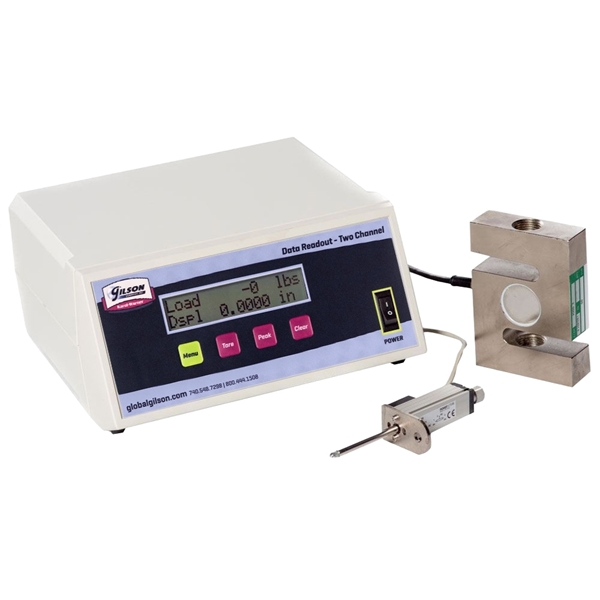

Load and Displacement Readout Sets measure electronic force and displacement. The kits include an HM-418 Two-Channel Data Readout, S-type Load Cell, HM-740 2in Linear Variable Displacement Transducer, and a Transducer Bracket. HMA-668 Readout Mounting Bracket is available separately to easily position Data Readouts on laboratory load frames.

The Data Readout shows real-time data on the large, bright, vacuum fluorescent display. The front panel keys allow instant taring of either channel peak reading on the selected channel and entry of calibration factors during setup. Load and displacement data is relayed from the Readout to the user’s PC using the USB cord and software. The data is transferred to the computer’s spreadsheet application and can be used to create printable graphs. The software is compatible with Windows® XP, 7, 8, and 10 operating systems.

HM-413 models have a 1,000lbf (4.5kn) load capacity

HM-414 models have a 2,000lbf (9kn) load capacity

HM-415 models have a 5,000lbf (22kn) load capacity

HM-416 models have a 10,000lbf (44.5kn) load capacity

HM-417 models have a 20,000lbf (89kn) load capacity

Features:

• Optimal for use with Gilson Load Frames
• Compliant with ASTM and AASHTO specifications
• Adaptable to a variety of different testing applications

• Two-Channel Data Readout (115V, 50/60Hz or 230V, 50/60Hz)
• S-Type Load Cell (1,000lbf, 2,000lbf, 5,000lbf, 10,000lbf, or 20,000lbf)
• Loading Button
• 2in Linear Variable Displacement Transducer
• Transducer Bracket
• GetData 5 Software

Accessories:

• Load Cells measure load data and transfer it to the Data Readouts
• Data Readouts process and display data from Load Cells and Displacement Transducers
• Linear Variable Displacement Transducers precisely measure displacement movement
• Dial Indicator / Displacement Transducer Brackets position transducers or dial indicators with 1/2 or 3/4in threaded mounting studs
• HMA-613 Triaxial Compression Data Acquisition Software works with the Load and Displacement Set to record specimens and real-time test data, calculate results, then prepare reports following ASTM and AASHTO requirements.
• HMA-668 Readout Mounting Bracket to position readout unit on load frames
