Load Frame, 0.00001—0.29999in/min, 20,000lbf

Product Files
Load  Frame, 0.00001—0.29999in/min, (120V / 50-60Hz)

Load Frame, 0.00001—0.29999in/min, (120V / 50-60Hz)

Model: HM-399
$6250.0000
Price: $6,250.00
Load  Frame, 0.00001—0.29999in/min, (230V / 50-60Hz)

Load Frame, 0.00001—0.29999in/min, (230V / 50-60Hz)

Model: HM-399F
$6250.0000
Price: $6,250.00

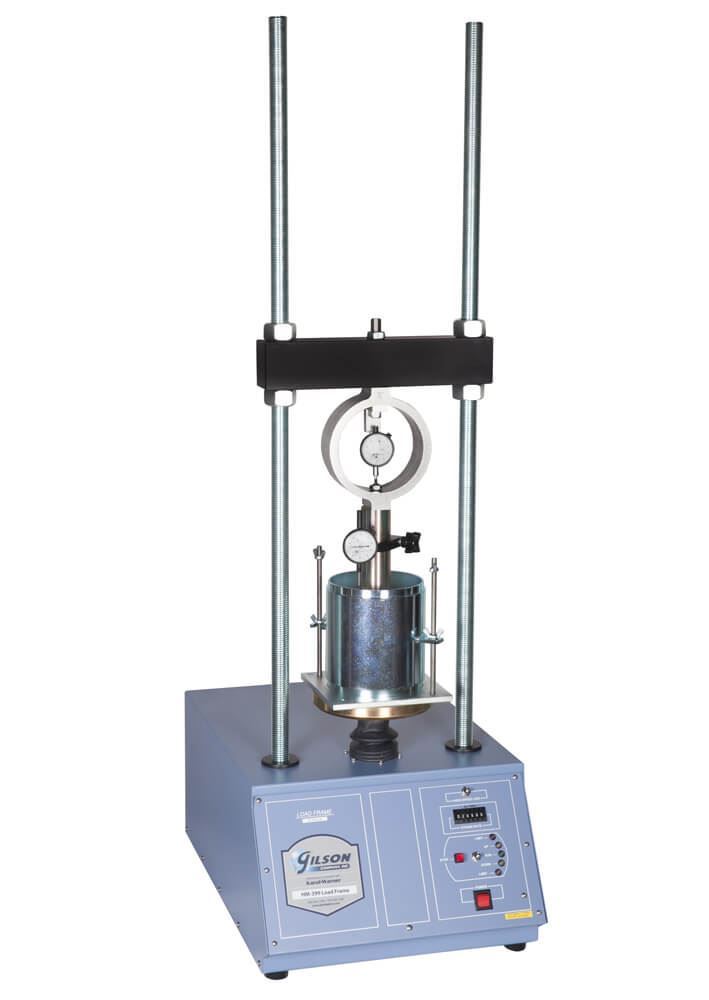

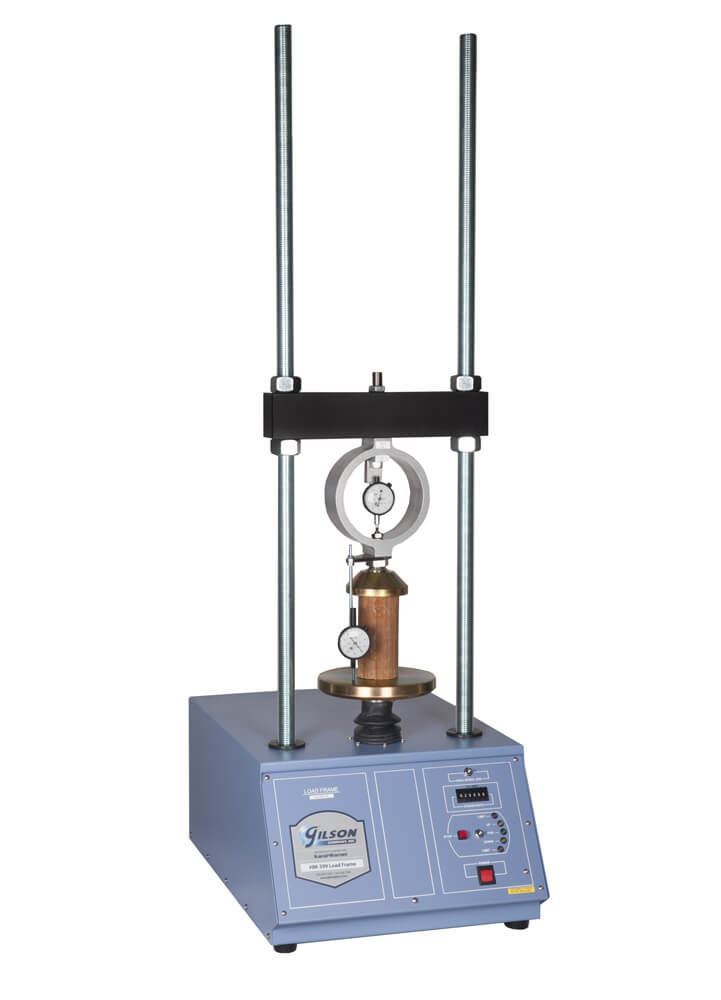

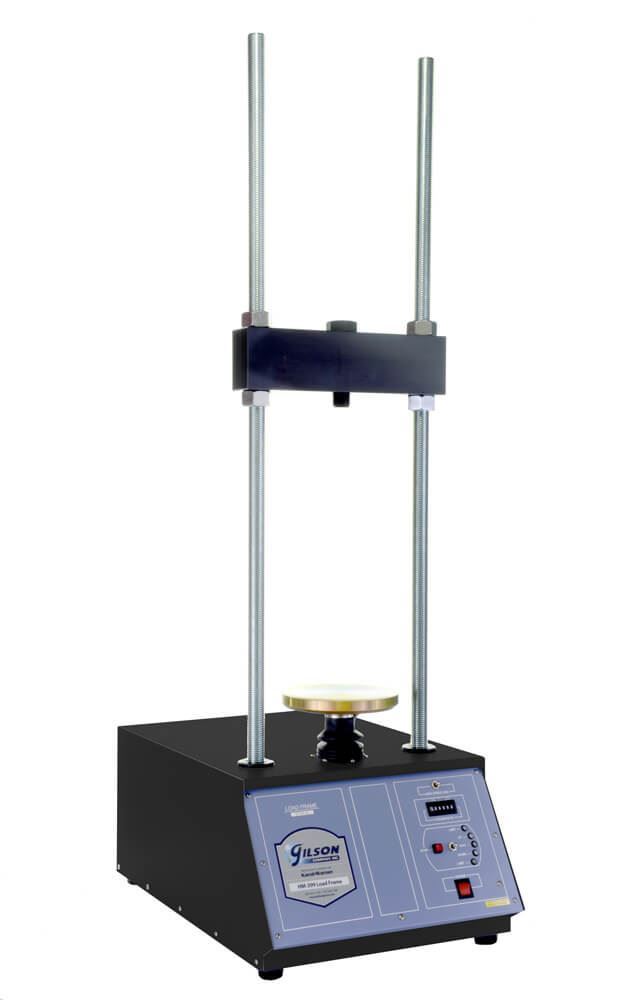

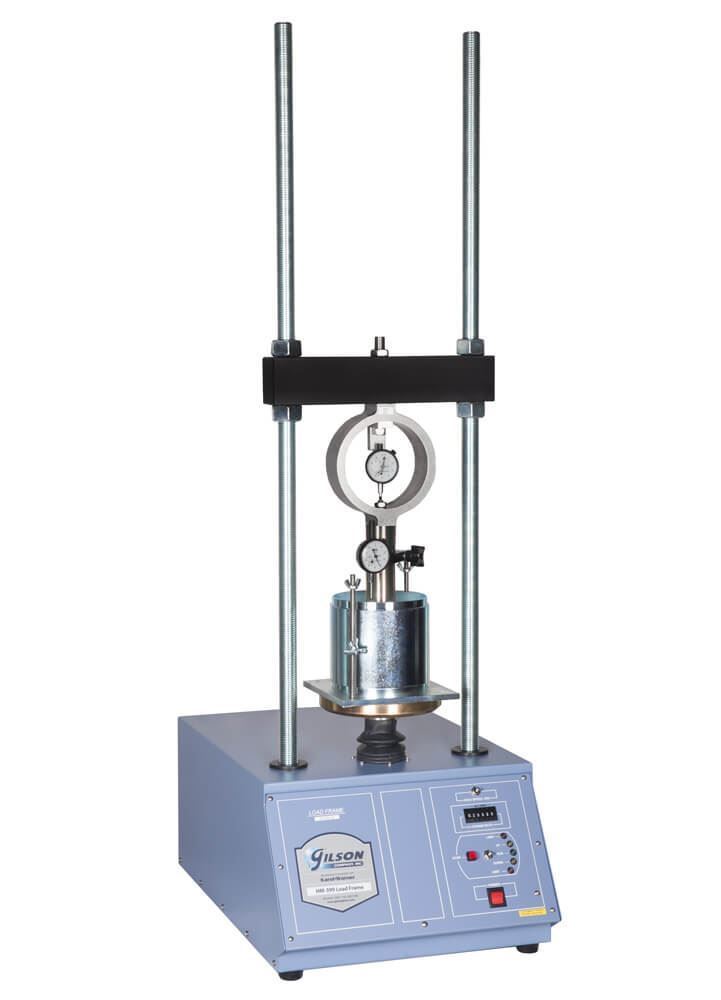

HM-399 Load Frame has a higher 20,000lbf (89kN) capacity and precision strain rate range of 0.00001 to 0.29999in/min (0.000254 to 7.62mm/min). It can be used in CBR and LBR testing, as well as soil cement, unconfined compressive strength, and triaxial testing when fitted with the required test-specific Component Set, which is sold separately. A motor jog function advances the platen to 0.3in/min for faster set-up. The micro-stepping motor and drive controller allow for precise control of loading rates to ±1%. Daylight opening is 11.9x37.3in (302x947mm).

Reliable DC motors are matched to the unique speed and torque requirements of each load frame, and operates at 115V/60Hz. Horizontal cross-head heights are easily changed using adjusting nuts, and the coarse-threaded 1.25in (32mm) high-strength plated vertical rods are corrosion resistant. Its sturdy powder-coated steel finished cabinet stands up to rugged use.

Features:

  • 20,000lbf (89kN) capacity Load Frame
  • Works well in CBR and other laboratory soils tests using test-specific component sets
  • Corrosion-resistant vertical rods

Included Items:

  • Load Frame, 0.00001 to 0.29999in/min (120V/5060Hz or 230V/5060Hz)

Accessories:

  • HMA-94 Rolling Load Frame Cart for portability and correct height positioning of Load Frame

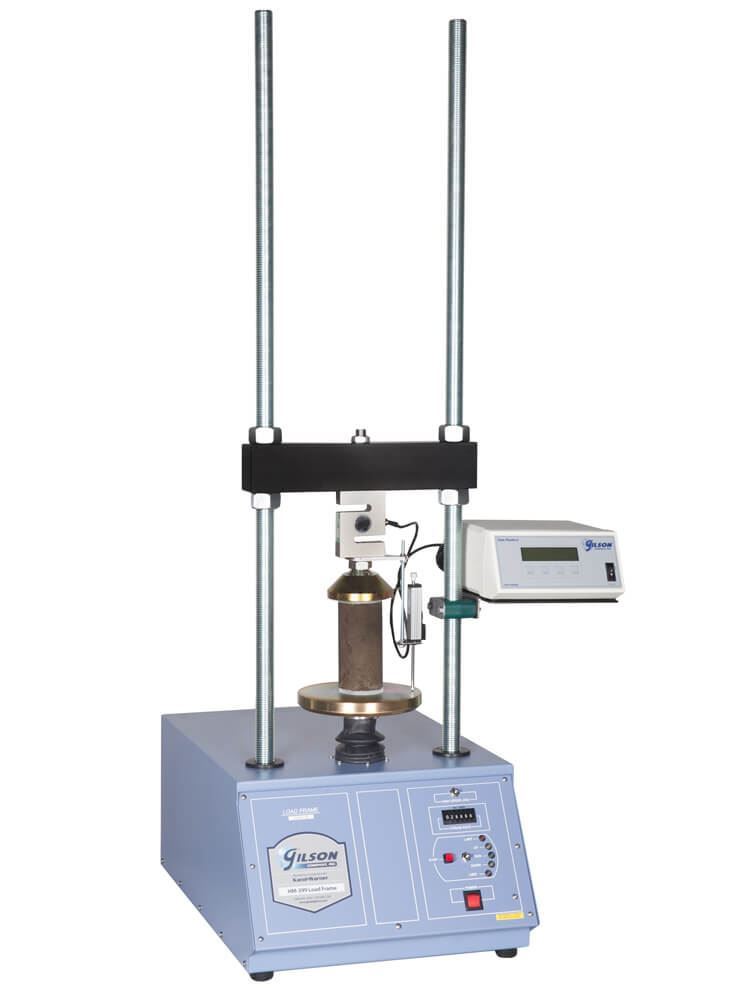

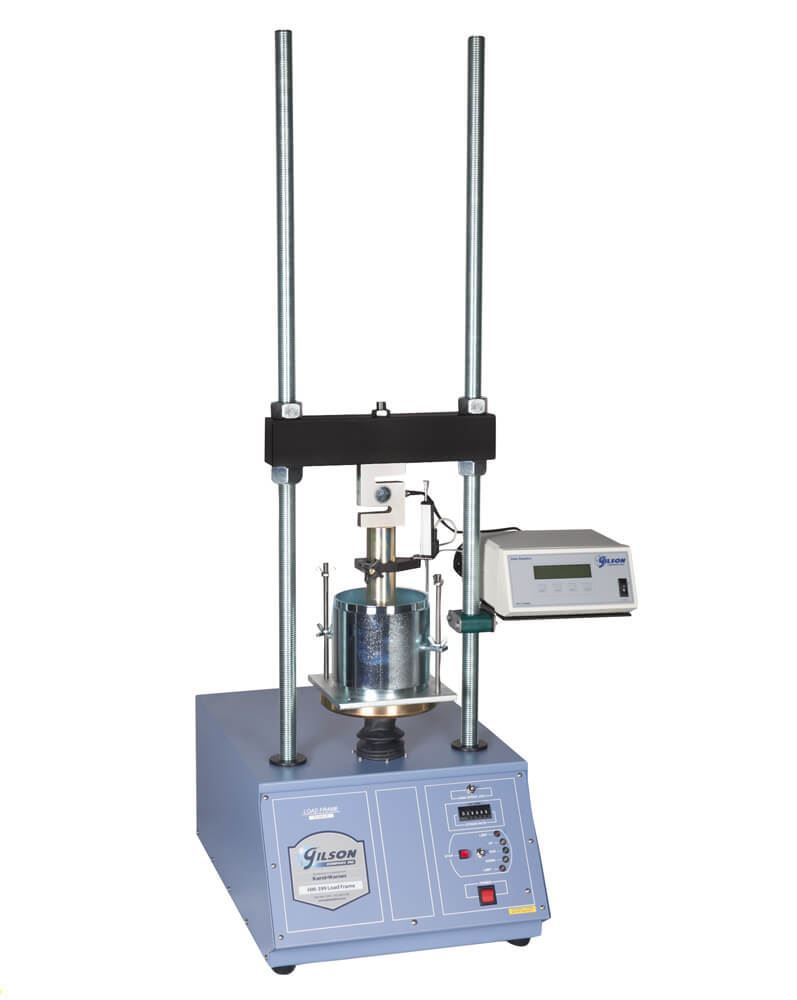

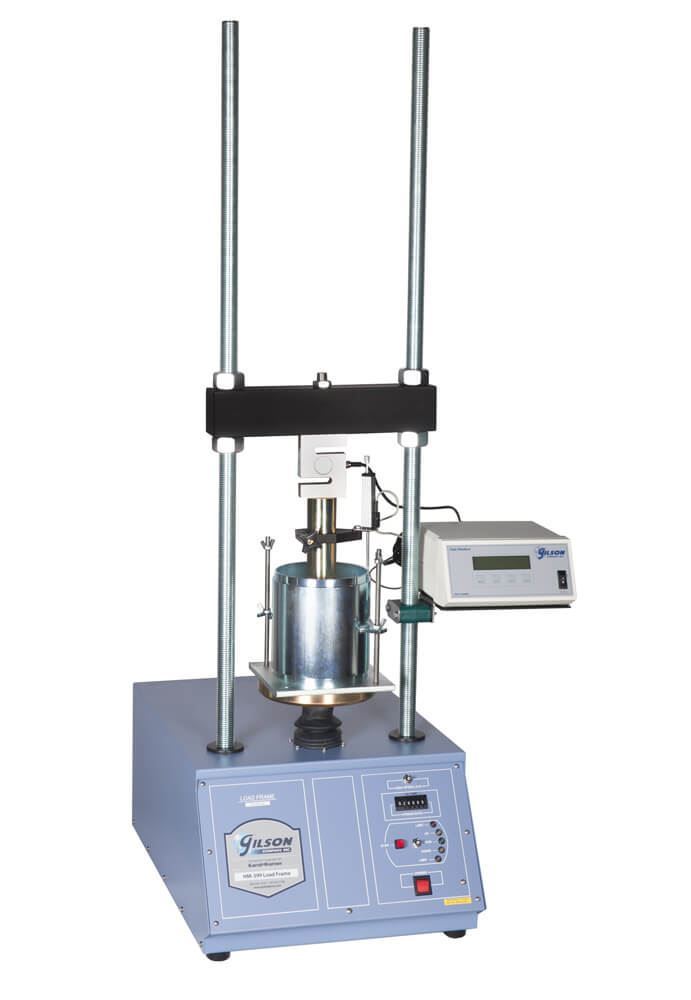

  • Load & Displacement Readout Kits for pairing to data readout box in producing accurate and simultaneous readings of electronic force and displacement measurement
  • Test-Specific Component Sets with products to outfit Load Frame for testing with different soils tests
  • Data Acquisition Software records specimen and real-time test data for a wide range of soil laboratory tests and prepares reports following applicable ASTM and AASHTO requirements.
Load Capacity 20,000lbf (89kN)
Strain Rate 0.00001—0.29999in/min (0.000254—7.619mm/min)
Rate of Load ±1%
Motor 1/8hp DC Motor
Electrical

HM-399: 120V/50—60Hz

HM-399F: 230V/50—60Hz

Frame Opening Dimensions 11.9 x 37.3in (302 x 947mm) WxH
Product Dimensions 18 x 29 x 54.5in (457 x 737 x 1,384mm), WxDxH
Net Weight 190lb (86.4kg)
Estimated Shipping Weight 250.0lb (113.40kg)
