Pore Pressure Transducer with Digital Readout

Product Files

Pore Pressure Transducer with kPa Digital Readout

Pore Pressure Transducer with psi Digital Readout

Model: HMA-521

$855.0000

Price: $855.00

Qty:

Pore Pressure Transducer with kPa Digital Readout

Model: HMA-521F

$855.0000

Price: $855.00

Qty:

Description
Specifications
Questions?

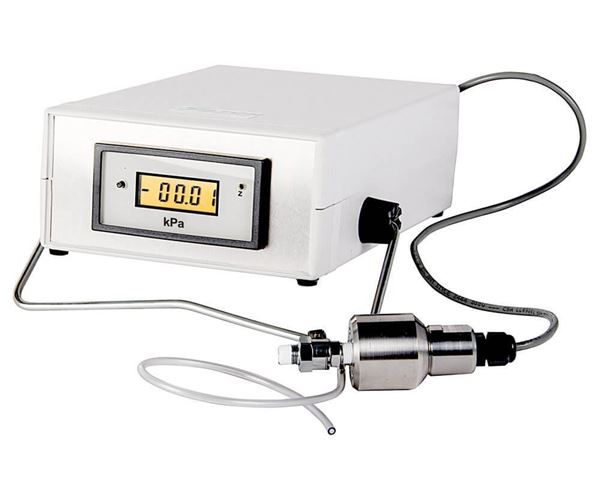

Pore Pressure Transducer with Digital Readout allows precision measurement of soil sample pore water pressure during triaxial and permeability testing. The pore measuring system allows measurements up to 150psi (1,034kPa) with 0.01psi (0.07kPa) resolution. The Pore Pressure Transducer contains a deairing valve and the digital readout includes a 4.5in (114mm) LCD digital display. The wire stand attached to the display cabinet allows the unit to be elevated for easier reading. For use with Triaxial Cells or Flexible Wall Permeability Cells.

Features:

Precise measuring of pore pressure
Easy-to-read 4.5in (114mm) display

Included Items:

Pore Pressure Transducer with (psi or kPa) Digital Readout

Accessories:

HMA-525 Pore Pressure Transducer with Deairing Block for precise measurement of pore water pressure in the soil sample

Pressure Rating	Up to 150psi (1,034.21kPa) with 0.01psi (0.07kPa) resolution
Accuracy	± 0.5% of full scale
Range	Transducer Operating Temperature: -40°–125°C
Repeatability	± 0.2%
Electrical	115V/50-60Hz or 220V/50-60Hz
Estimated Shipping Weight	4.0lb (1.81kg)

Enter your name, email, and questions below and we will reply during business hours (8am - 5pm EST, Monday through Friday).

Your name

Your email

Question

Pressure Rating	Up to 150psi (1,034.21kPa) with 0.01psi (0.07kPa) resolution
Accuracy	± 0.5% of full scale
Range	Transducer Operating Temperature: -40°–125°C
Repeatability	± 0.2%
Electrical	115V/50-60Hz or 220V/50-60Hz
Estimated Shipping Weight	4.0lb (1.81kg)
