Oilless Vacuum Pump

Small Oilless Vacuum Pump (115V / 60Hz)

Small Oilless Vacuum Pump (115V / 60Hz)

Model: MA-24
$919.0000
Price: $919.00
Small Oilless Vacuum Pump (230V / 50Hz)

Small Oilless Vacuum Pump (230V / 50Hz)

Model: MA-24F
$1097.0000
Price: $1,097.00

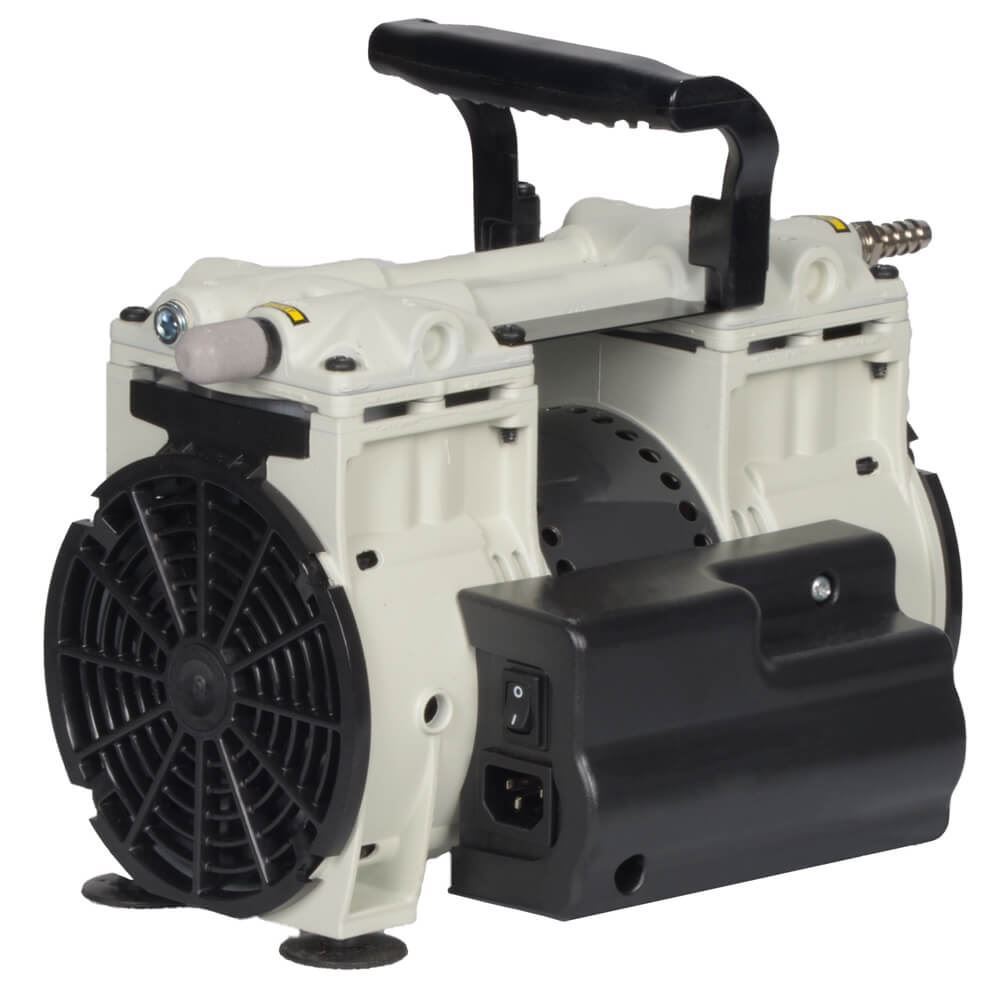

MA-24 Oilless Vacuum Pump offers vacuum capacity equivalent to many oil systems, with a cost-effective oilless pump package. The 1/3hp motor pulls a vacuum to 29.6in Hg (759.46mm), with free-air displacement up to 65L/min (3.4cfm) and ultimate pressure of 9.0Torr.

Features:

  • Cost-sensitive package with capacity comparable to similar oil systems
  • Free-air displacement up to 65L/min
  • Ultimate pressure of 9.0Torr

Included Items:

  • Oilless Vacuum Pump (115V/60Hz or 230V/50Hz)
  • NEMA guarded switch
  • Grounded electric cord
Free Air Displacement 65L/min (2.3cfm)
Ultimate Vacuum 9 Torr (12mbar)
Maximum Vacuum 29.6in HG (759.46mm)
Intake Port 0.25in (7.0mm) O.D.
Motor 1/3hp (0.25kW)
Electrical

MA-24: 115V / 60Hz / 10 Amps, 1 Phase

MA-24F: 230V / 50Hz / 1.2 Amps, 1 Phase

Product Dimensions 13.3 x 7.8 x 11.7in (351 x 198 x 297mm), WxDxH
Net Weight 16.5lb (7.5kg)
Estimated Shipping Weight 18.0lb (8.16kg)

Enter your name, email, and questions below and we will reply during business hours (8am - 5pm EST, Monday through Friday).

Free Air Displacement 65L/min (2.3cfm)
Ultimate Vacuum 9 Torr (12mbar)
Maximum Vacuum 29.6in HG (759.46mm)
Intake Port 0.25in (7.0mm) O.D.
Motor 1/3hp (0.25kW)
Electrical

MA-24: 115V / 60Hz / 10 Amps, 1 Phase

MA-24F: 230V / 50Hz / 1.2 Amps, 1 Phase

Product Dimensions 13.3 x 7.8 x 11.7in (351 x 198 x 297mm), WxDxH
Net Weight 16.5lb (7.5kg)
Estimated Shipping Weight 18.0lb (8.16kg)
