Filter Flasks

1,000ml Filter Flask

1,000ml Filter Flask

Model: GW-74
$54.0000
Price: $54.00
2,000ml Filter Flask

2,000ml Filter Flask

Model: GW-75
$124.0000
Price: $124.00
4,000ml Filter Flask

4,000ml Filter Flask

Model: GW-76
$152.5000
Price: $152.50

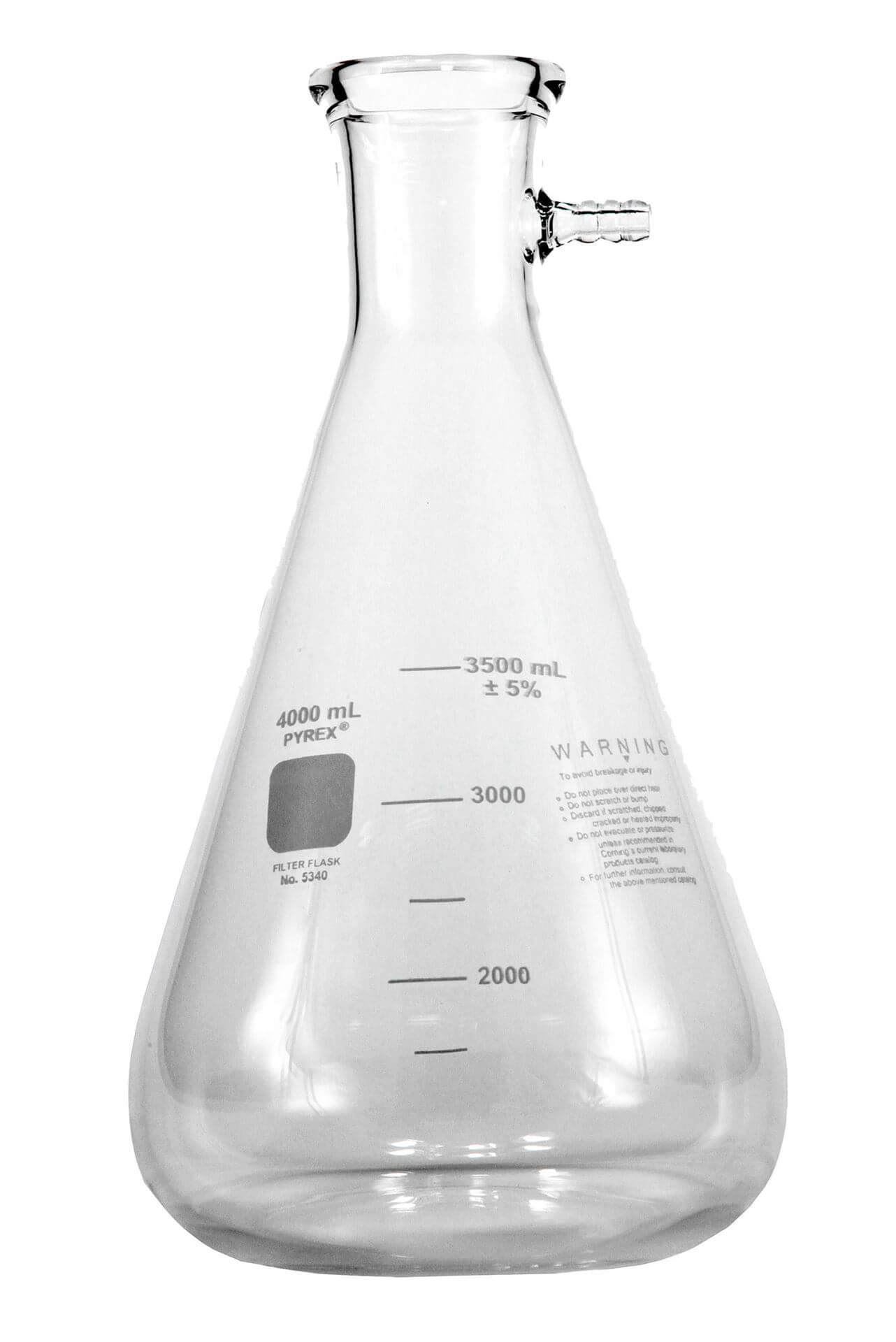

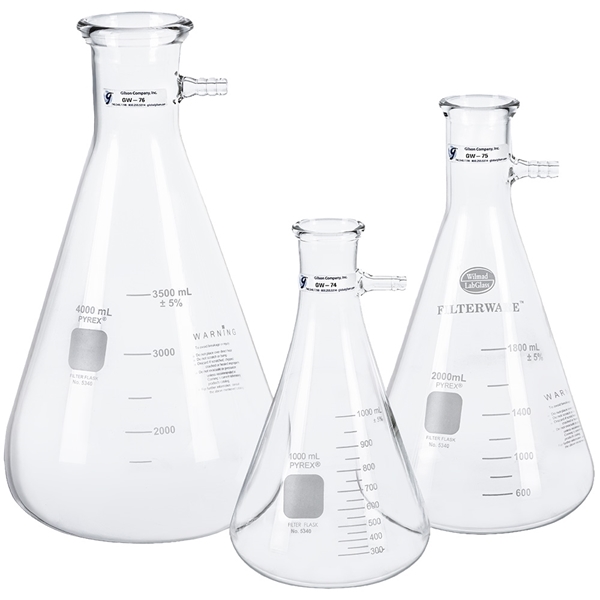

Filter Flasks Filter Flasks are thick-walled Pyrex® glass and have side tubulation for .375in (9.5mm) I.D. vacuum tubing. When used in conjunction with Indicating Drierite Granules filter flasks can be used as a moisture trap for vacuum pump protection. Neoprene Stoppers and Neoprene Stoppers w/ Glass Tube are available to fit each size of filter flask.

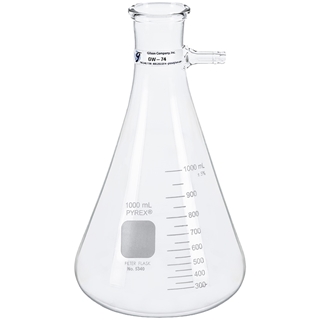

GW-74 1,000ml Filter Flask is most commonly used as a moisture trap due to its manageable size. The GW-74 uses a No. 8 Stopper or No. 8 Stopper w/ Glass Tube.

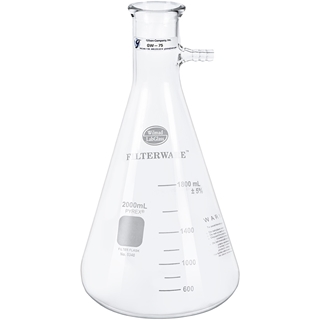

GW-75 2,000ml Filter Flask meets ASTM and AASHTO vacuum container capacity requirements when used as a pycnometer. The GW-75 uses a No. 9 Stopper or No. 9 Stopper w/ Glass Tube.

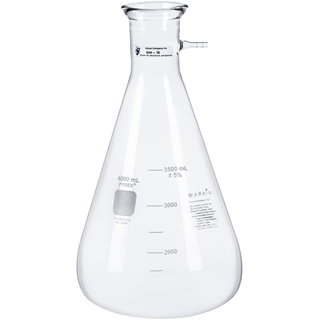

GW-76 4,000ml Flask also meets ASTM and AASHTO standards specifications for use as a vacuum container for weighing in air only. The GW-76 uses a No. 12 Stopper or No. 12 Stopper w/ Glass Tube.

Features:

  • ASTM and AASHTO compliant
  • Thick-walled Pyrex® glass with side tabulation for convenience

Included Items:

  • Filter Flask (1,000, 2,000, or 4,000ml)

Accessories:

Capacity

GW-74: 1,000ml, graduated

GW-75: 2,000ml, graduated

GW-76: 4,000ml, graduated

Material Glass
Graduations

GW-74: 50ml

GW-75: 200ml

GW-76: 500ml

Product Dimensions

GW-74: 5.39 x 9.37in (137 x 238mm) dia. x H

GW-75: 6.61 x 11.5in (168 x 292mm) dia. x H

GW-76: 7.8 x 14.02in (198 x 356mm) dia. x H

Estimated Shipping Weight

GW-74: 3.0lb (1.36kg)

GW-75: 3.0lb (1.36kg)

GW-76: 6.0lb (2.72kg)

Enter your name, email, and questions below and we will reply during business hours (8am - 5pm EST, Monday through Friday).

Capacity

GW-74: 1,000ml, graduated

GW-75: 2,000ml, graduated

GW-76: 4,000ml, graduated

Material Glass
Graduations

GW-74: 50ml

GW-75: 200ml

GW-76: 500ml

Product Dimensions

GW-74: 5.39 x 9.37in (137 x 238mm) dia. x H

GW-75: 6.61 x 11.5in (168 x 292mm) dia. x H

GW-76: 7.8 x 14.02in (198 x 356mm) dia. x H

Estimated Shipping Weight

GW-74: 3.0lb (1.36kg)

GW-75: 3.0lb (1.36kg)

GW-76: 6.0lb (2.72kg)

Meets Standard(s):
