Deairing Tanks

1.5 gal Deairing Tank

1.5 gal Deairing Tank

Model: HMA-520
$480.0000
Price: $480.00
5.0 gal Deairing Tank

5.0 gal Deairing Tank

Model: HMA-505
$734.0000
Price: $734.00

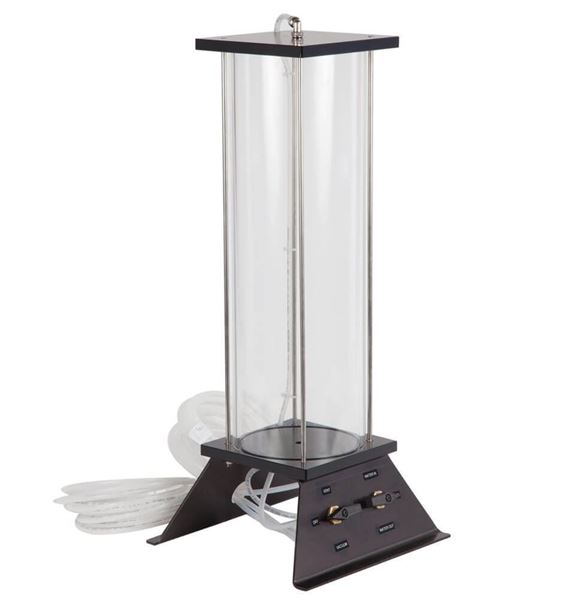

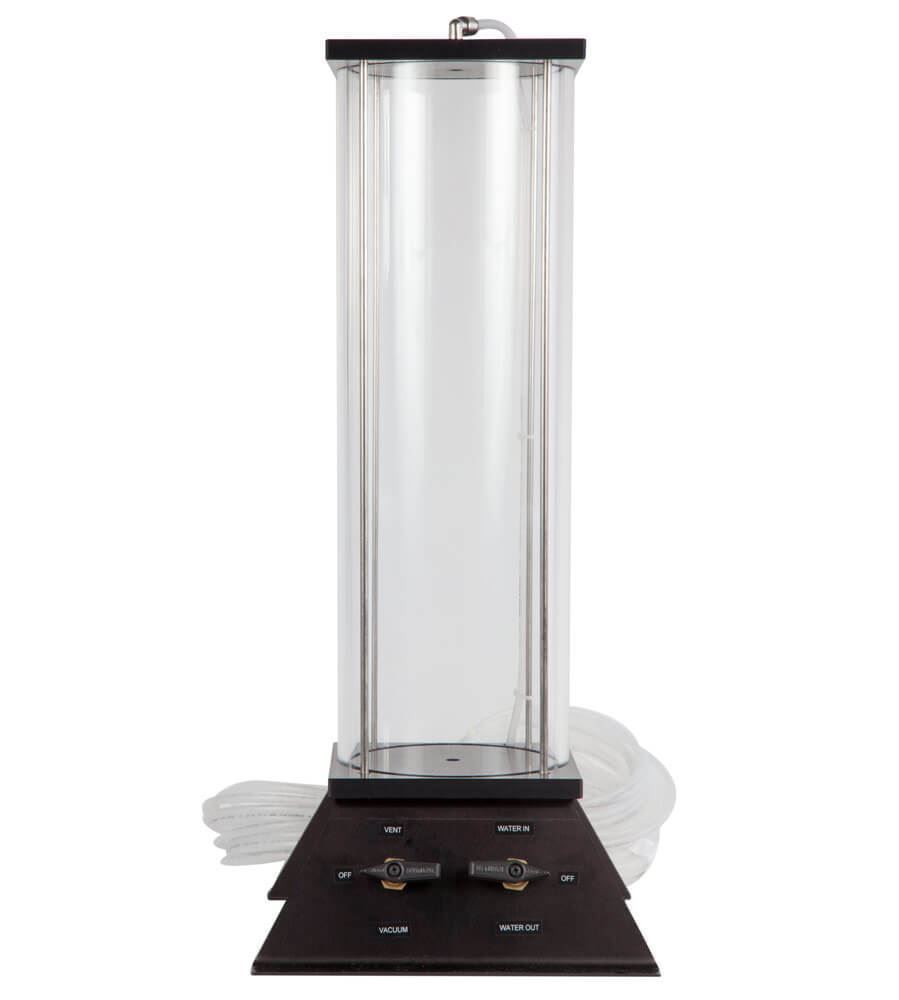

Deairing Tanks are used with Triaxial and Permeability Test Systems to remove entrapped air in the water for use in Control Panels and Test Cells. The Deairing Tanks are constructed of clear acrylic and come with valves, fittings, and 1/4in outer diameter tubing for connecting to a user-supplied vacuum.

HMA-520 has a 1.5 gallon (5.7L) tank.
HMA-505 has a 5.0 gallon (18.9L) tank.

Features:

  • Chamber constructed of durable clear acrylic
  • Included 1/4in OD tubing for easy hookup to vacuum source
  • Systems produce desired water for triaxial and flexible wall permeability testing

Included Items:

  • Deairing Tank (5.0 or 1.5 gallons)
  • Tubing
Capacity

HMA-520: 1.5 gal (5.7L)

HMA-505: 5.0 gal (18.9L)

Product Dimensions

HMA-520: 6.5 x 6.5 x 23in (165 x 165 x 584mm), WxDxH

HMA-505: 9.75 x 9.75 x 29.5in (248 x 248 x 749mm) WxDxH

Estimated Shipping Weight

HMA-520: 12.0lb (5.44kg)

HMA-505: 30.0lb (13.61kg)

Enter your name, email, and questions below and we will reply during business hours (8am - 5pm EST, Monday through Friday).

Capacity

HMA-520: 1.5 gal (5.7L)

HMA-505: 5.0 gal (18.9L)

Product Dimensions

HMA-520: 6.5 x 6.5 x 23in (165 x 165 x 584mm), WxDxH

HMA-505: 9.75 x 9.75 x 29.5in (248 x 248 x 749mm) WxDxH

Estimated Shipping Weight

HMA-520: 12.0lb (5.44kg)

HMA-505: 30.0lb (13.61kg)
