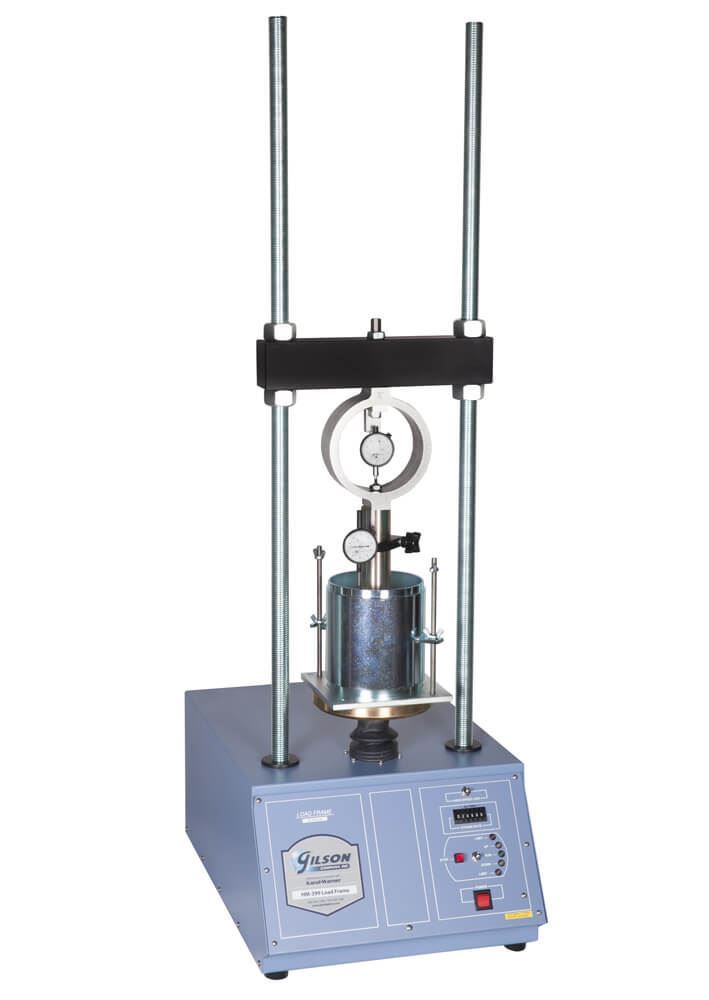

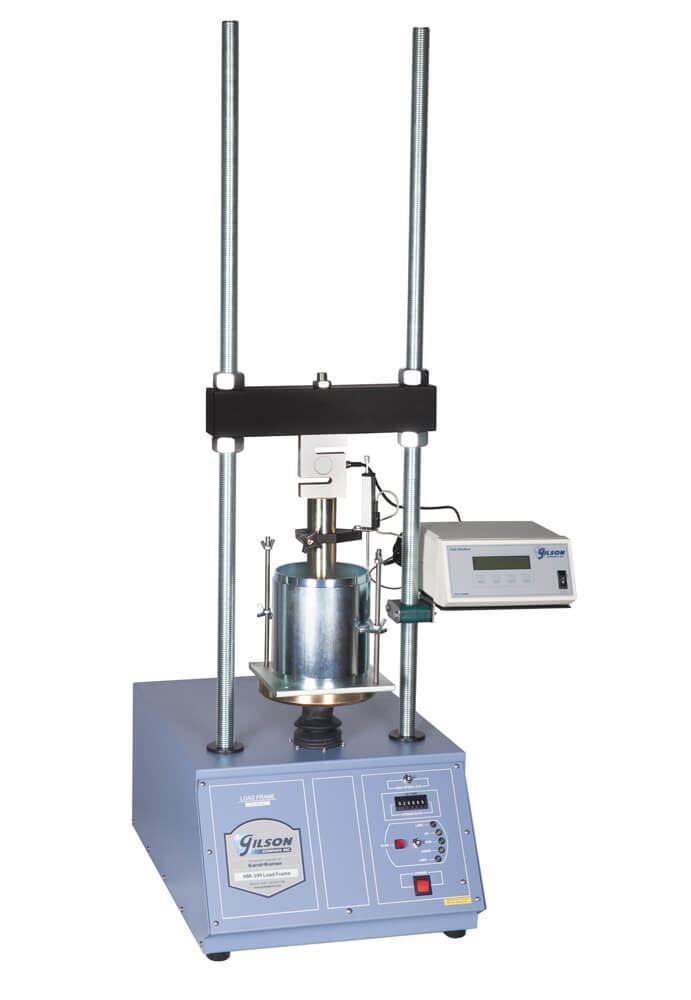

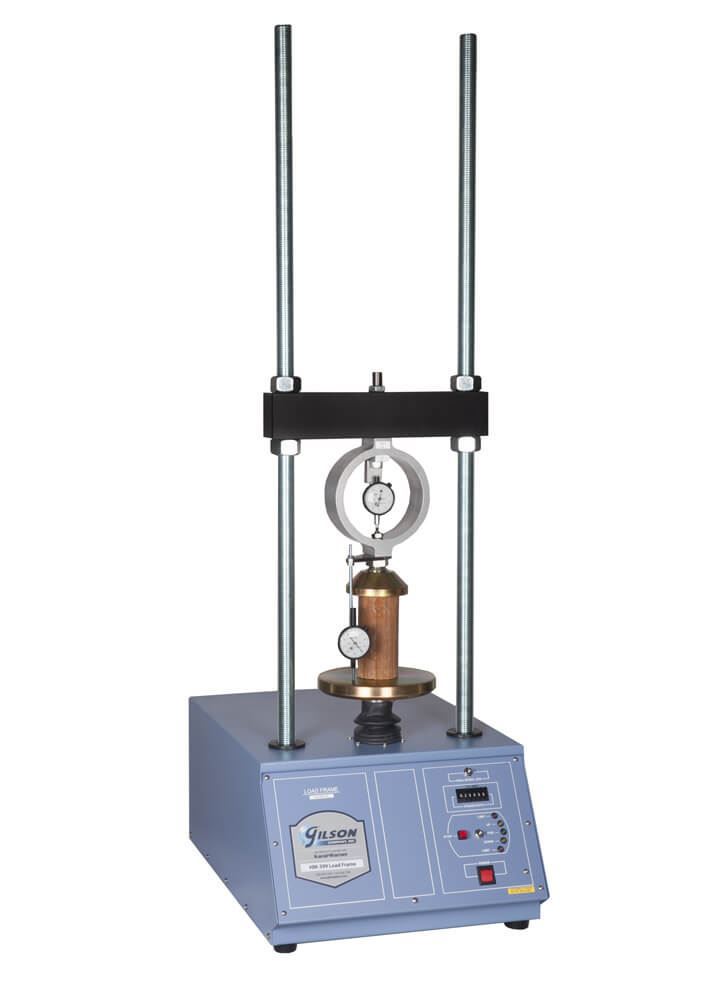

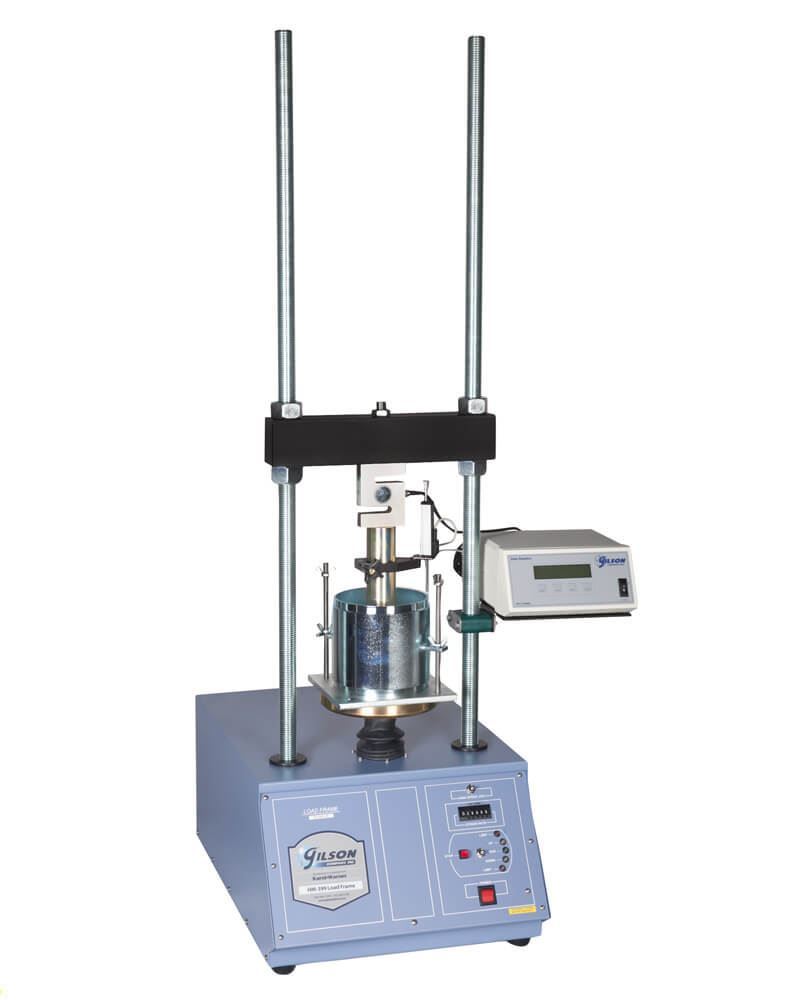

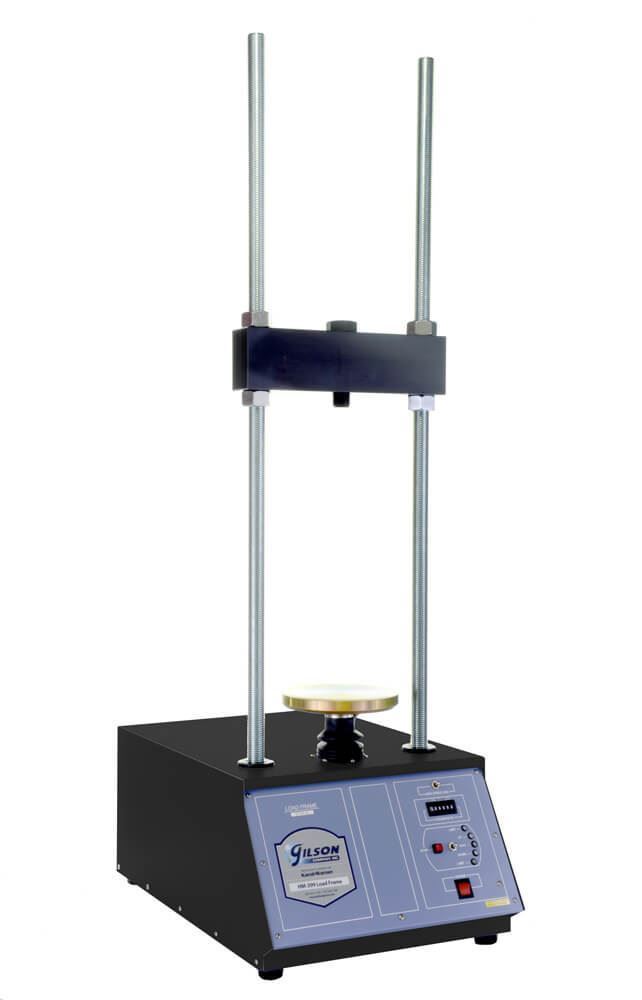

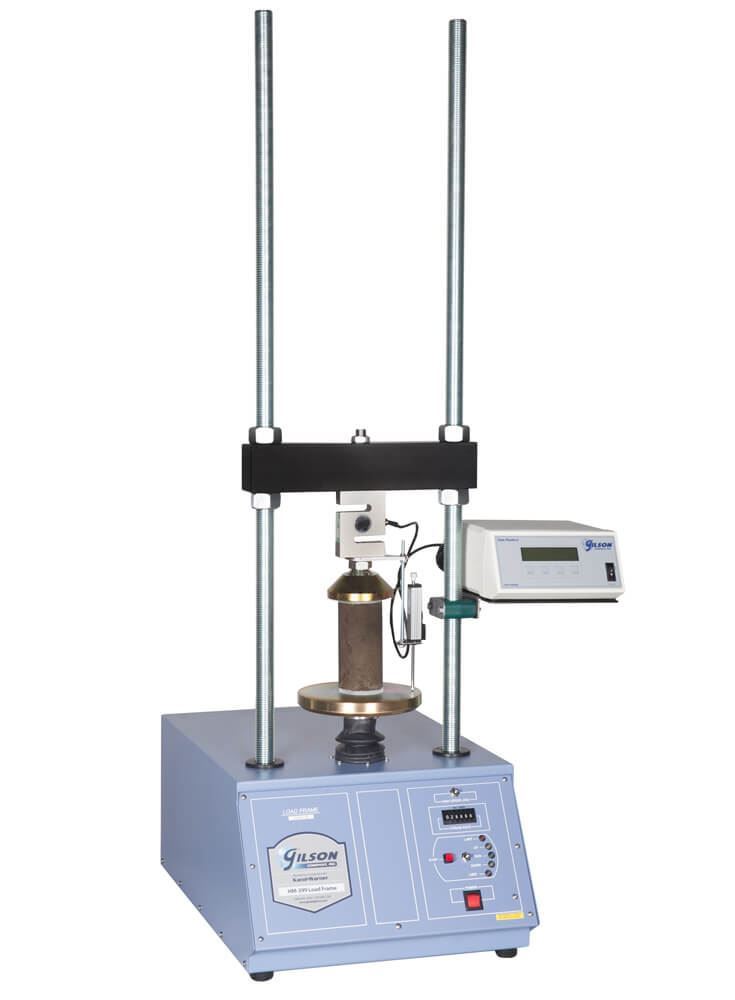

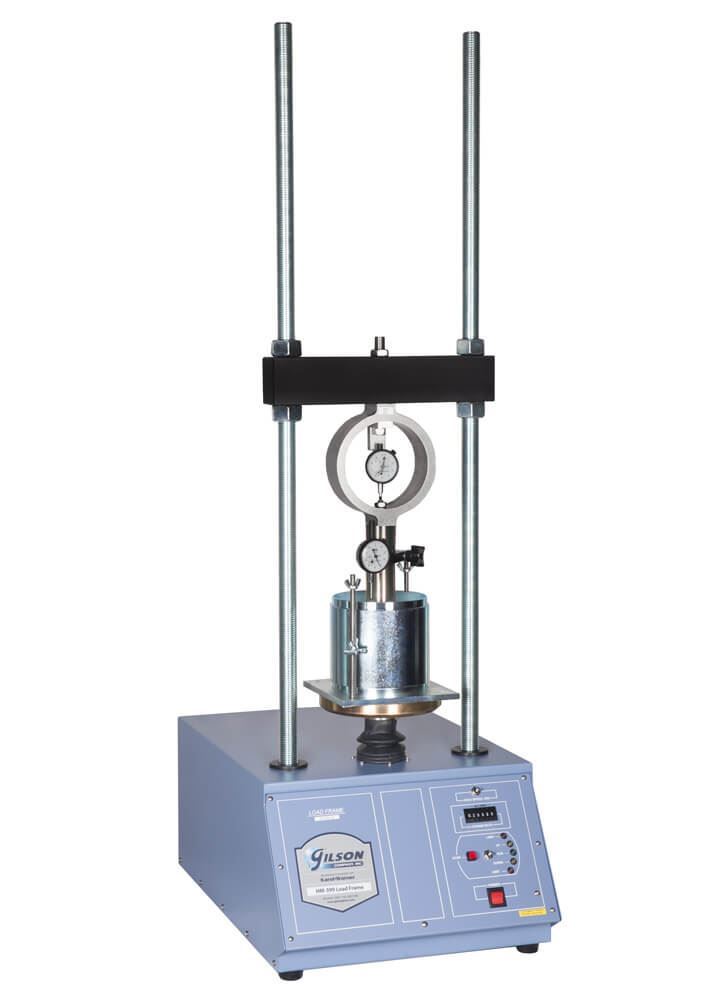

HM-397 Load Frame, 0.0001—0.3in/min, 10,000lbf offers high performance for CBR and LBR testing, as well as soil-cement, unconfined compressive strength, and triaxial testing when fitted with the required test-specific Component Set, sold separately. This unit features a jog function that increases the speed of platen to the maximum speed of the load frame jack screw (0.3in/min), allowing for faster positioning of the 8in (203mm) diameter platen. It has a total capacity of 10,000lbf (44.5kN) with a frame opening of 11.9x37.3in (302x947mm), and a strain rate of 0.0001—0.3in/min (0.00254—7.62mm/min).

Reliable 1/8hp DC motors are matched to the unique speed and torque requirements of each load frame. Controllers precisely regulate strain rates to ±1% of the set point. Horizontal cross-head heights can be easily changed using adjusting nuts. The coarse-threaded 1.25in (32mm) high strength plated vertical rods are corrosion resistant. The unit has a powder-coated steel finish and stands up to rugged use.

Features:

  • Solid performance with different soil tests using test-specific component sets
  • Easily converts to perform other laboratory soil tests
  • Capacity of 10,000lbf (44.5kN)
  • 14-gauge painted steel cabinet

Included Items:

  • Load Frame, 0.0001—0.3in/min (120V/50-60Hz or 230V/50-60Hz)

Accessories:

Related blogs:

Load Capacity 10,000lbf (44.5kN)
Strain Rate 0.0001—0.3in/min (0.00254—7.62mm/min)
Rate of Load ±1%
Motor 1/8hp DC Motor
Electrical

HM-397: 120V/50-60Hz, 480 Watts

HM-397F: 230V/50-60Hz, 690 Watts

Frame Opening Dimensions 11.9 x 37.3in (302 x 947mm) WxH
Product Dimensions 18 x 29 x 54.5in (457 x 737 x 1,384mm), WxDxH
Net Weight 190lb (86.4kg)
Estimated Shipping Weight 250.0lb (113.40kg)
