Gilson Testing Screens

Product Files
Gilson Testing Screen w/ Hydraulic Clamping (115V / 60Hz)

Gilson Testing Screen w/ Hydraulic Clamping (115V / 60Hz)

Model: TS-1
$3615.5000
Price: $3,615.50
Gilson Testing Screen w/ Hydraulic Clamping (230V / 50Hz)

Gilson Testing Screen w/ Hydraulic Clamping (230V / 50Hz)

Model: TS-1F
$4038.5000
Price: $4,038.50
Gilson Testing Screen w/ Manual Clamping (115V / 60Hz)

Gilson Testing Screen w/ Manual Clamping (115V / 60Hz)

Model: TS-2
$3228.5000
Price: $3,228.50
Gilson Testing Screen w/ Manual Clamping (230V / 50Hz)

Gilson Testing Screen w/ Manual Clamping (230V / 50Hz)

Model: TS-2F
$3615.5000
Price: $3,615.50
Gilson Testing Screen w/ Hydraulic Clamping & Extra Tray Slot, (115V / 60Hz)

Gilson Testing Screen w/ Hydraulic Clamping & Extra Tray Slot, (115V / 60Hz)

Model: TS-3
$4519.0000
Price: $4,519.00
Gilson Testing Screen w/ Hydraulic Clamping & Extra Tray Slot, (230V / 50Hz)

Gilson Testing Screen w/ Hydraulic Clamping & Extra Tray Slot, (230V / 50Hz)

Model: TS-3F
$5442.0000
Price: $5,442.00
Gilson Silent Testing Screen (115V / 60Hz)

Gilson Silent Testing Screen (115V / 60Hz)

Model: TS-4
$7220.0000
Price: $7,220.00

Gilson Testing Screens are ideal for particle size determinations on large samples of aggregate, slag, ores, and other coarse materials. Batch sizes up to one cubic foot (0.028m³) or more can be processed into six fractions in as little as three to five minutes, depending on material type. Vibration and amplitude characteristics are fixed at optimum for mineral aggregates in the 4in (101mm) to No. 4 (4.75mm) size range, but options and accessories are available for testing finer samples or special materials. Testing Screen models have the same performance characteristics but differ in the clamping mechanism, safeguarding devices, number of tray slots, and operational convenience features.

The drive mechanism is completely enclosed for added safety and the powerful 1/2hp capacitor-type motor is operated with a starting switch with built in overload protection. Independently removable Screen Trays and Dustpans are purchased separately and shared by both Testing Screen and Test-Master® models. The Trays have replaceable Screen Cloth and are available in a wide range of opening sizes with ASTM E11 and ISO 565 specification cloth or punched steel plate. Gilson Testing Screens are designed to be mounted to a solid, rigid floor system. Securing with anchor bolts to a concrete floor is recommended.

TS-1 Gilson Testing Screens use a quick-acting hydraulic pump system to clamp the screen trays in place. Trays are quickly released using the same handle. A total of six tray slots hold five Screen Trays plus a dustpan. This efficient model is recommended for labs with a steady workload of particle size testing.

TS-2 Gilson Testing Screens secure the screen trays with manually operated screw-type clamping handles. This model is cost-effective but slightly more labor-intensive for continuous use. A total of six tray slots hold five Screen Trays plus a dustpan. TSA-155 or TSA-159 Hydraulic Clamping Conversion Kits are available to convert existing TS-2 models to hydraulic clamping TS-1 units.

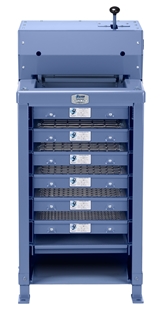

TS-3 Gilson Testing Screens feature an additional tray slot for samples requiring additional fractions. Hydraulic clamping system is the same as TS-1 with a reinforced top frame for the increased screen tray loads. Seven tray slots hold six Screen Trays plus a dustpan.

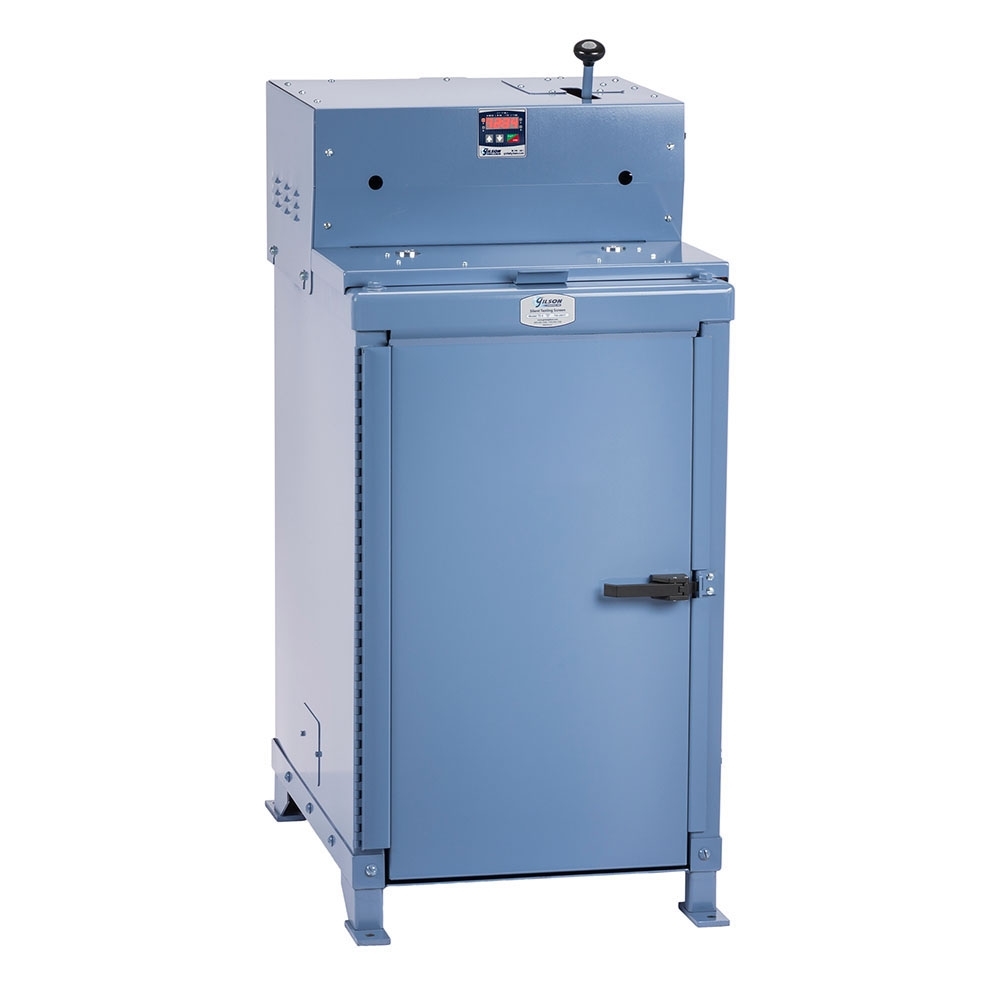

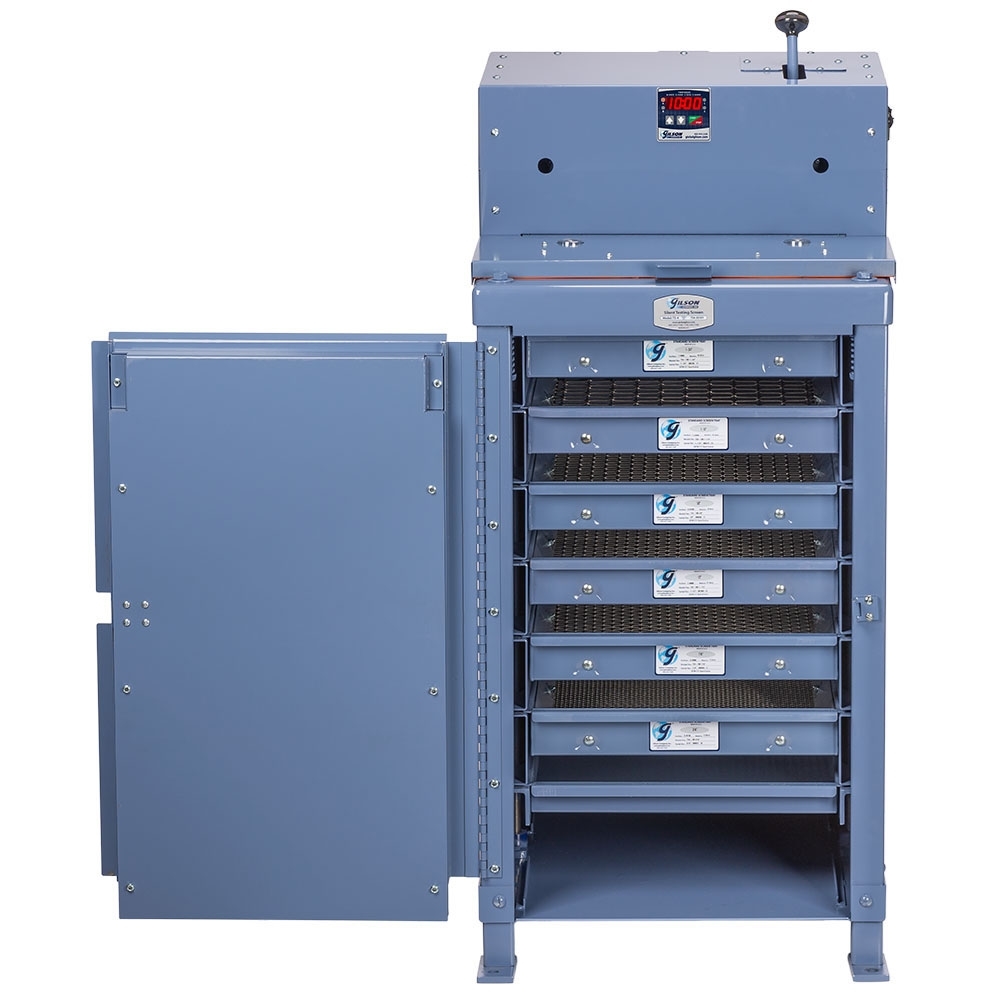

TS-4 Gilson Silent Testing Screen is our newest model and combines all the features of the TS-3 with the addition of a sound-dampened structure and an integrated digital LED timer. The screening process is completely enclosed within the unit, providing significant dust reduction to help confine and control the airborne respirable quartz, silica, crystalline particles in the breathing zone of personnel. The door is fitted with an adjustable, heavy-duty, over-center lever latch that pulls the door tightly against the frame. The lid incorporates strong ferrite magnets that secure it in the open position to aid in the loading process and in closed position to ensure seal integrity while in operation. Wear-resistant seals on the door and lid further prevent airborne dust and fine particles from entering the lab environment during the testing procedure. The door, lid, and interior surfaces of the TS-4 are lined with sound-dampening material that significantly reduces operational noise.

Features:

  • Rapid particle size determinations for materials from 4in (101mm) to No. 4 (4.75mm)
  • Enclosed drive mechanism promotes safety during operation
  • Processes large samples up to 1ft³ (0.028m³)

Included Items:

  • Gilson Testing Screen with Manual or Hydraulic Clamping (115V/60Hz or 230V/50Hz)

Accessories:

  • Screen Trays with ASTM or ISO wire Cloth or Punched Plate openings are available in a range of opening sizes and specifications
  • Additional Dustpans include a standard, 4in deep, 3in deep, or an inclined chute pan for fines collection and handling during separation of aggregates and other materials.
  • Door Enclosures are a lightweight panel minimizing dust and noise, and is easily removable.
  • TSA-156 Screen Tray Storage Rack provides storage of up to seven screen trays, fits on top or below most bench tops
  • TSA-167 Clean-N-Weigh Accessory offers fast and efficient collection of size fractions from Testing Screen or  Porta-Screen trays, and speedy clean-up
  • TSA-180 Sound Enclosure is a sturdy enclosure cabinet that reduces noise during operations of testing screens; can be used with other laboratory equipment
  • Hydraulic Clamping Conversion Kit converts threaded manual clamping of TS-2 to faster hydraulic system of TS-1, reducing time of test cycles. Kit model is based on Testing Screen serial number. For serial numbers 13825 or lower select TSA-155. For serial numbers 13826 or higher select TSA-159.
  • TSA-169R Digital Lab Timer for controlling up to 1hp single phase motors or 20amp loads. Operates in four different timing modes
  • TSA-154R Speed Variation Accessory allows precise control of vibration speed for reliable separation of materials
  • Low-Amplitude Drive Shaft is factory installed and used in conjunction with the Speed Variation Accessory for fragile or sensitive materials
Particle Size Range 4in - #4 (100.0 - 4.75mm)
Motion/Agitation Vertical Vibration
Screen Tray Capacity

TS-1 & TS-2 Models: 5 tray slots plus 1 for pan

TS-3 & TS-4 Models: 6 tray slots plus 1 for pan

Maximum Sample Volume 1ft³ (28.3L)
Mounting Capability Yes, must be bolted to floor
Electrical

115V / 60Hz, 9.2 amps

"F" Models: 230V / 50Hz, 4.7 amps

Clear Screen Size of Trays 14.75 x 22.75in (375 x 578mm) WxD
Product Dimensions

TS-1 & TS-2: 23 x 31 x 43in (584 x 787 x 1,092mm), WxDxH

TS-3: 23.4 x 31.4 x 47.4in (594 x 798 x 1,204mm), WxDxH

TS-4: 36 x 30 x 59in (914 x 762 x 1499mm) WxDxH

Estimated Shipping Weight

TS-1: 405.0lb (183.71kg)

TS-1F: 405.0lb (183.71kg)

TS-2: 399.0lb (180.99kg)

TS-2F: 399.0lb (180.99kg)

TS-3: 454.0lb (205.93kg)

TS-3F: 454.0lb (205.93kg)

TS-4: 520.0lb (235.87kg)
