Digital Lab Timer

Product Files
Digital Lab Timer (115V / 60Hz)

Digital Lab Timer (115V / 60Hz)

Model: TSA-169R
$334.5000
Price: $334.50
Digital Lab Timer (230V / 50Hz)

Digital Lab Timer (230V / 50Hz)

Model: TSA-169RF
$419.0000
Price: $419.00

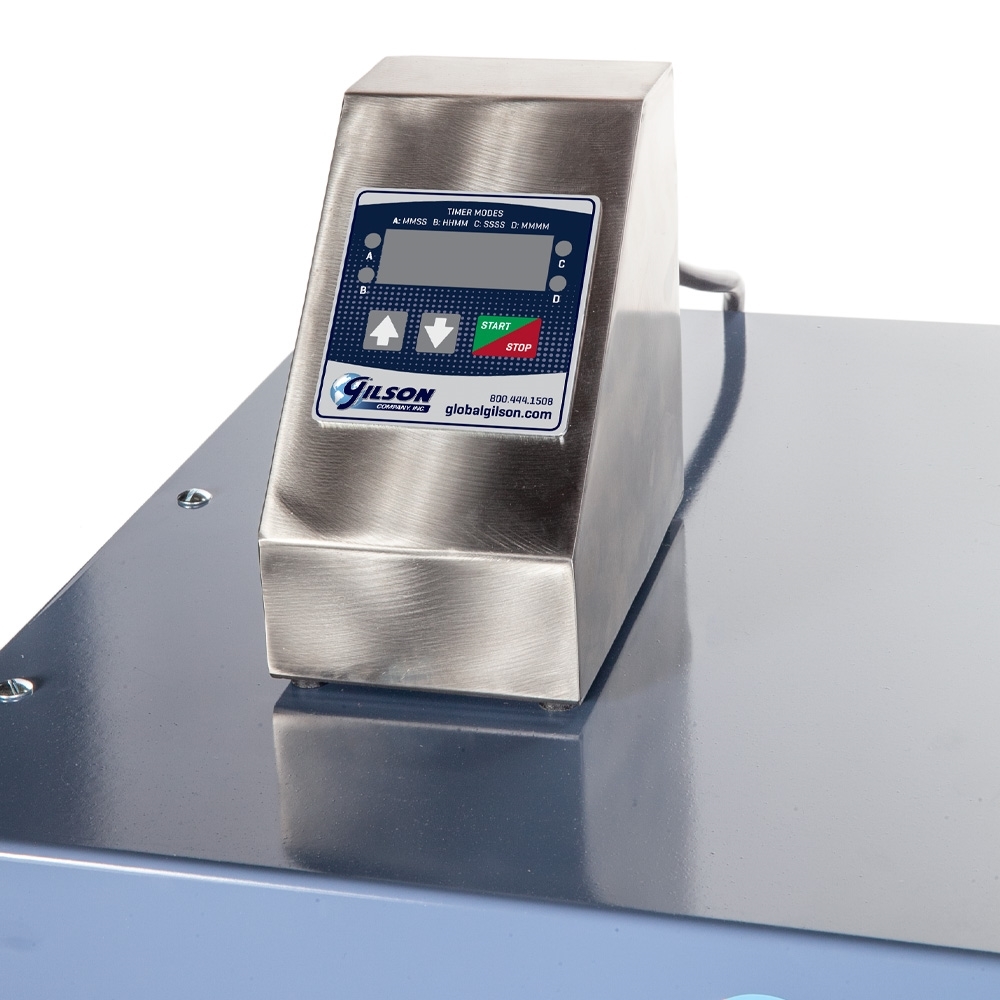

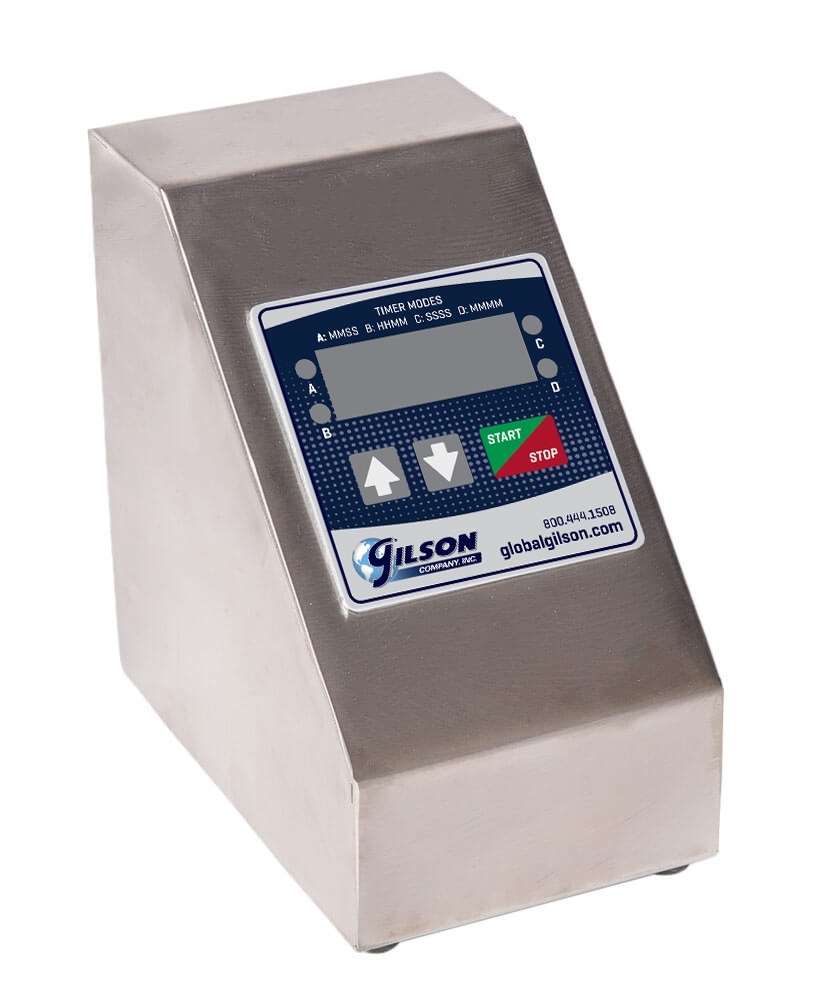

Digital Lab Timer for sieving and screening machines and useful for other timed applications with up to 1hp single-phase motors or 20 amp loads. Bright 1/2in (12.6mm) LED display indicates remaining time, stops machine at zero, then resets to programmed time for next use. Test times are set with tactile panel buttons. Countdown resumes from the paused time when stopped and restarted. Timer operates in four modes with capacities of 9,999 sec; 9,999 min; 99:59 min:sec; or 99:59 hr:min. Electronics are mounted in a stainless steel case. The timer has a three-wire receptacle for timed devices.

TSA-169RF Digital Lab Timer is the same product as the TSA-169R with 230V/50Hz and contains two 6ft (3m) three-wire cords without plugs for connection to mains and machine.

Features:

  • Bright LED Display
  • Timing resumes from stopped time when restarted
  • Four different operating mode capacities

Included Items:

  • Digital Lab Timer (115V/60Hz), or
    Digital Lab Timer (230V/50Hz) w/ 3-wire connection cords without plugs
Type Digital
Number of Channels Single
Timing Capacity Four Modes: 9,999 seconds / 9,999 minutes / 99:59 min:sec / 99:59 hr:min
Display Bright 0.5in (12.6mm) LED
Power Requirements 100-265V / 50/60Hz
Product Dimensions 4.5 x 5 x 5.5in (114 x 127 x 140mm), WxDxH
Estimated Shipping Weight 3.0lb (1.36kg)

Enter your name, email, and questions below and we will reply during business hours (8am - 5pm EST, Monday through Friday).

Type Digital
Number of Channels Single
Timing Capacity Four Modes: 9,999 seconds / 9,999 minutes / 99:59 min:sec / 99:59 hr:min
Display Bright 0.5in (12.6mm) LED
Power Requirements 100-265V / 50/60Hz
Product Dimensions 4.5 x 5 x 5.5in (114 x 127 x 140mm), WxDxH
Estimated Shipping Weight 3.0lb (1.36kg)
