ATS Vacuum Degassing Oven

Vacuum Degassing Ovens (VDO) remove entrapped air bubbles from asphalt specimens after aging in a Pressure Aging Vessel. The VDO by ATS is a completely automated benchtop degassing oven with a self-contained vacuum system to rapidly evacuate the chamber to the required 15 ±1.0kPa (25.5Hg).

The units feature a controller that programs vacuum time, temperature, and soak time values. Temperatures in the VDO vacuum chamber are measured by a platinum RTD probe with accuracy to ±0.2°F (±0.1°C). Audible and visual alarms alert the user at the end of each process. Soak time and degas times are both programmable for up to 4,320 minutes.

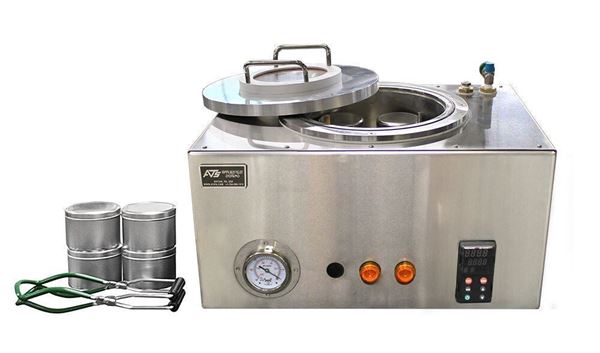

The rugged stainless steel cabinet, chamber, and cover are easy to maintain, and the removable cover features a heat-resistant glass viewing window for monitoring during the vacuum degassing process. The chamber holds eight 4oz (118mL) or four 8oz (236mL) sample containers. Units include four 8ox (236mL) sample containers and a specimen removal tool for easy loading and unloading of samples.

Digital Controller models have a basic digital controller with a simple push of a button that will initiate preheating and run the degassing phase. Indicator lights alert the user when the unit reaches the preset temperature and vacuum. Audible and visual alarms alert the user at the end of each process. Temperature range is ambient–410°F (210°C).

Touchscreen Controller models are network-ready and feature a large 7in (178mm) touchscreen with easy menu-driven operation in multiple language options. The controller display indicates time, temperature, and current process stage, with alerts at the end of each test. When connected to a network with an Ethernet cable, the VDO Touch can be operated remotely via smartphones, tablets, or PCs. USB Ports allow easy software upgrades. Temperature range is ambient–392°F (200°C).

Features:

• Automated tabletop degassing oven for rapid removal of entrapped air bubbles in asphalt specimens
• The network-ready Touchscreen controller models make it easy to input vacuum, temperature, and soak time values
• Temperatures in the vacuum chamber measured by platinum RTD probe, accurate to ±0.2°F (0.1°C)
• Capacity for eight 4oz (118mL) or four 8oz (236mL) sample containers

Included Items:

• ATS Vacuum Degassing Oven (Digital or Touchscreen Controller)
• (4) 8oz (236mL) Sample Tins
• Specimen Removal Tool

Accessories:

• HMA-674 VDO Verification Kit contains products for periodic verification of Vacuum Degassing Oven temperature and vacuum values.
• SC-506 Tinned Sample Container, 8oz stores samples and minimizes moisture changes.
• SC-502 Tinned Sample Container, 4oz
• HMA-675 VDO Verification Thermometer verifies Vacuum Degassing Oven temperatures.
• HMA-676 VDO Vacuum Verification Gauge verifies Vacuum Degassing Oven vacuum pressures.
• HMA-677 VDO Calibration Fixture works together with Vessel Cap to verify VDO temperatures.
• HMA-678 VDO Calibration Cover is an insulated cap used to cover vessels used with the HM-293.
