Original Schmidt Calibration Anvil

Model: HMA-864
$1205.0000
Price: $1,205.00

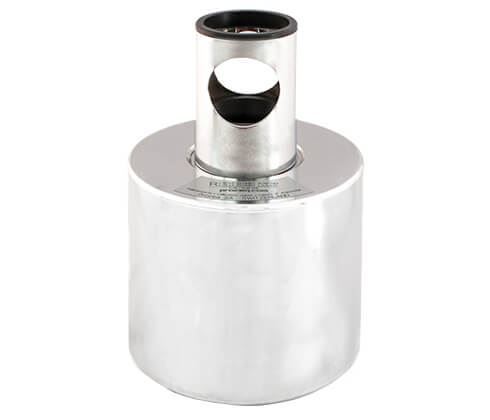

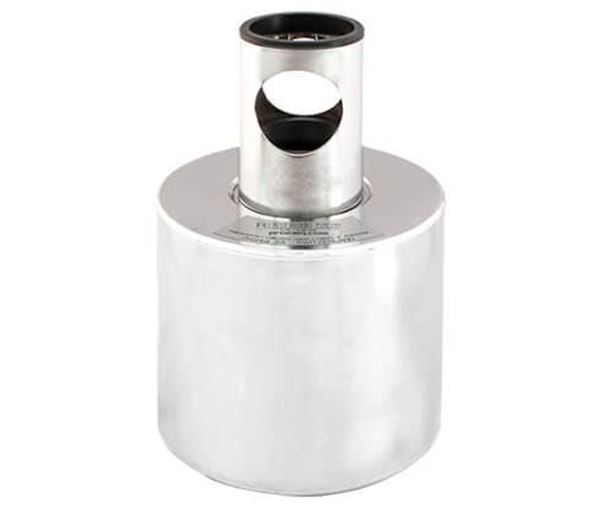

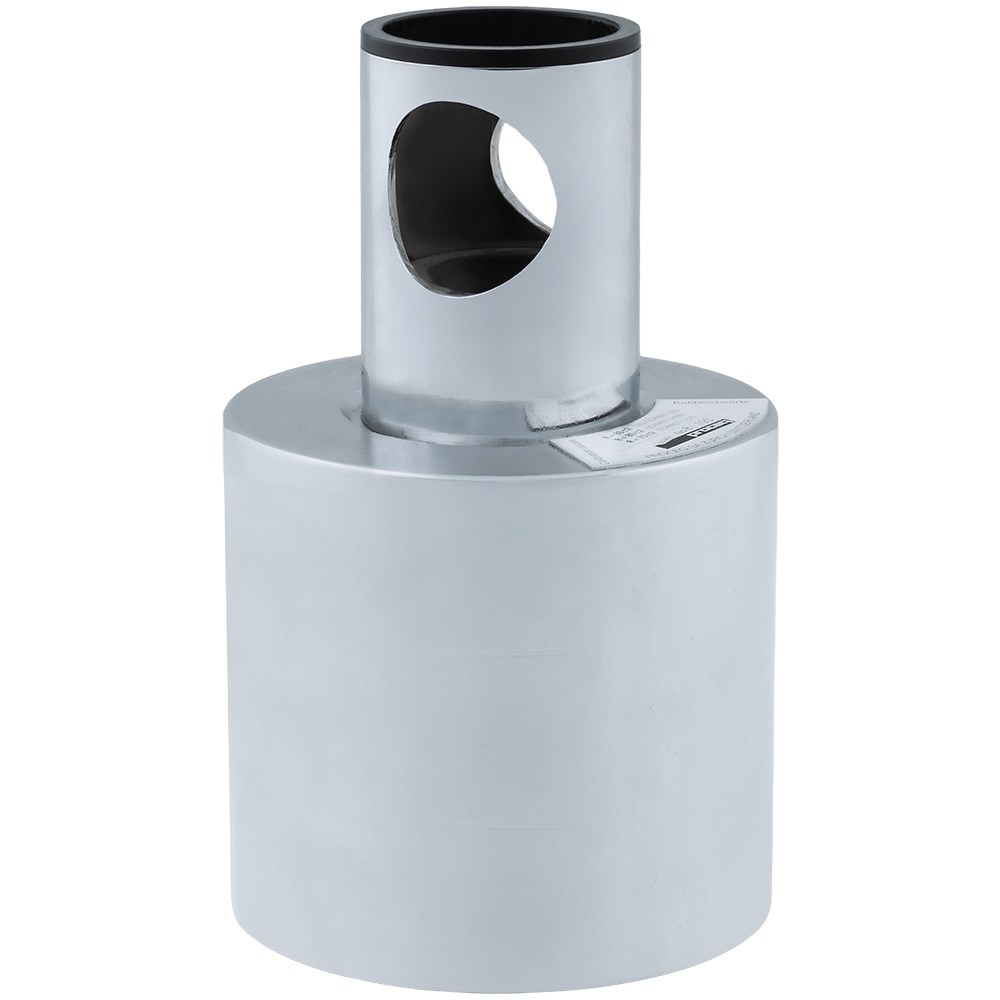

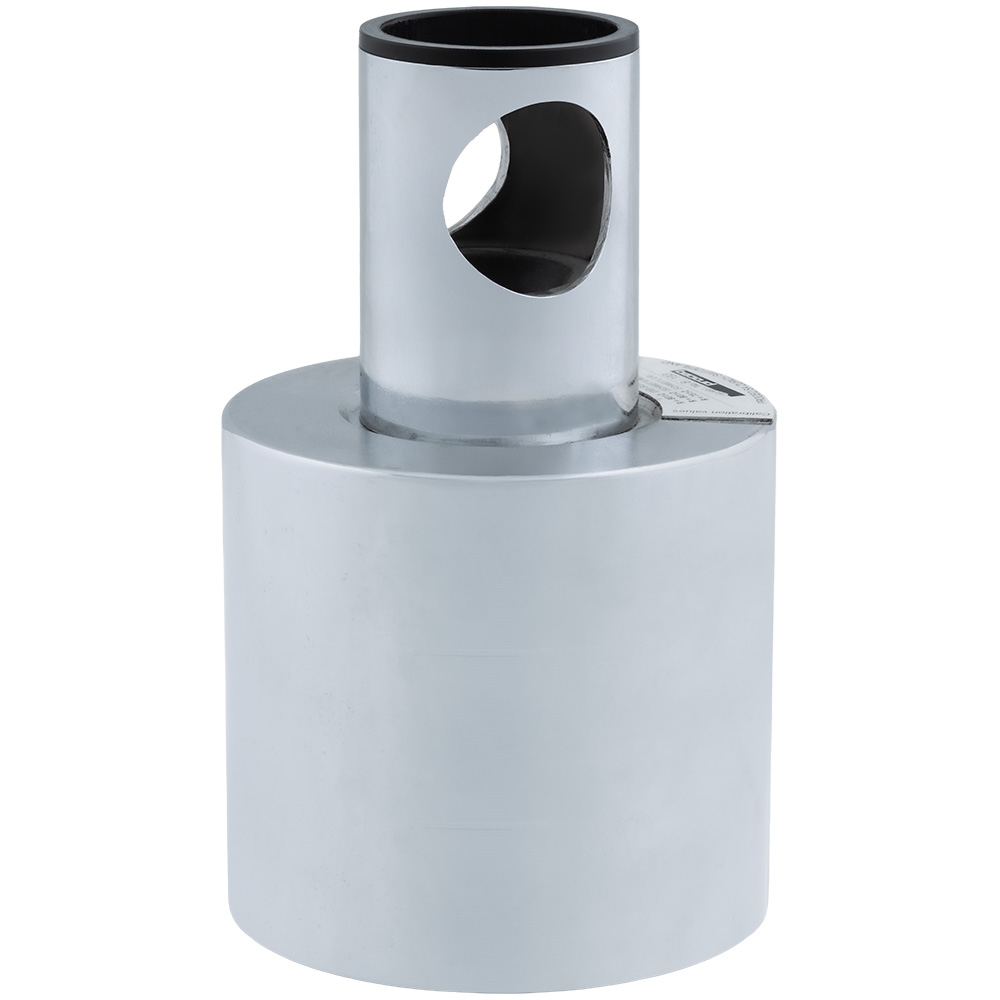

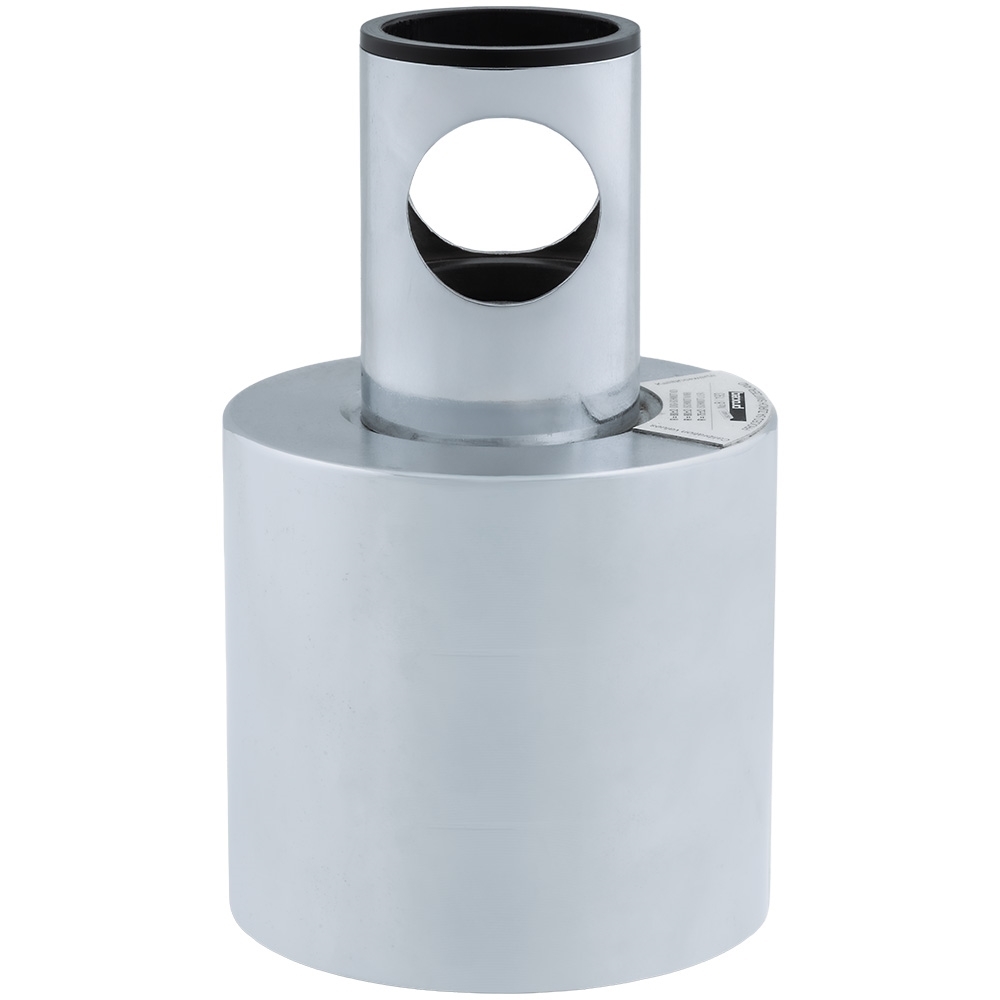

Original Schmidt Calibration Anvil is used to periodically verify the calibration of Type N and Type L Original Schmidt and Original Schmidt Live Concrete Test Hammers. When used with an optional HMA-863 Adapter, it can also verify the performance of Silver Schmidt and Rock Schmidt models. This calibration anvil has a solid steel hammer guide, 6in (152mm) diameter anvil, and a hardened alloy steel rebound plate. The impact surface of the rebound plate is concave so that the test hammer plunger seats completely in the impact surface of the anvil. A wire cleaning brush is included.

Features:

  • Solid steel construction
  • Concave impact surface

Included Items:

  • Original Schmidt Calibration Anvil
  • Wire Brush

Accessories:

  • HMA-863 Calibration Anvil Adapter allows the user to adjust the Calibration Anvil to adapt both Type N and Type L Silver Schmidt and Rock Schmidt Test Hammers.
Material Steel
Diameter Anvil: 6in (152mm)
Estimated Shipping Weight 40.0lb (18.14kg)

Enter your name, email, and questions below and we will reply during business hours (8am - 5pm EST, Monday through Friday).

Material Steel
Diameter Anvil: 6in (152mm)
Estimated Shipping Weight 40.0lb (18.14kg)
Meets Standard(s):
