Motorized Flow Tables

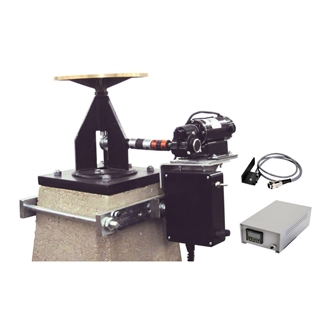

Motorized Flow Table with Counter (115V / 60Hz)

Motorized Flow Table with Counter (115V / 60Hz)

Model: HM-272
$2790.0000
Price: $2,790.00
Motorized Flow Table with Counter (230V / 50-60Hz)

Motorized Flow Table with Counter (230V / 50-60Hz)

Model: HM-272F
$2789.0000
Price: $2,789.00
Motorized Flow Table without Counter (115V / 60Hz)

Motorized Flow Table without Counter (115V / 60Hz)

Model: HM-273
$2308.0000
Price: $2,308.00
Motorized Flow Table without Counter (230V / 50-60Hz)

Motorized Flow Table without Counter (230V / 50-60Hz)

Model: HM-273F
$2169.0000
Price: $2,169.00

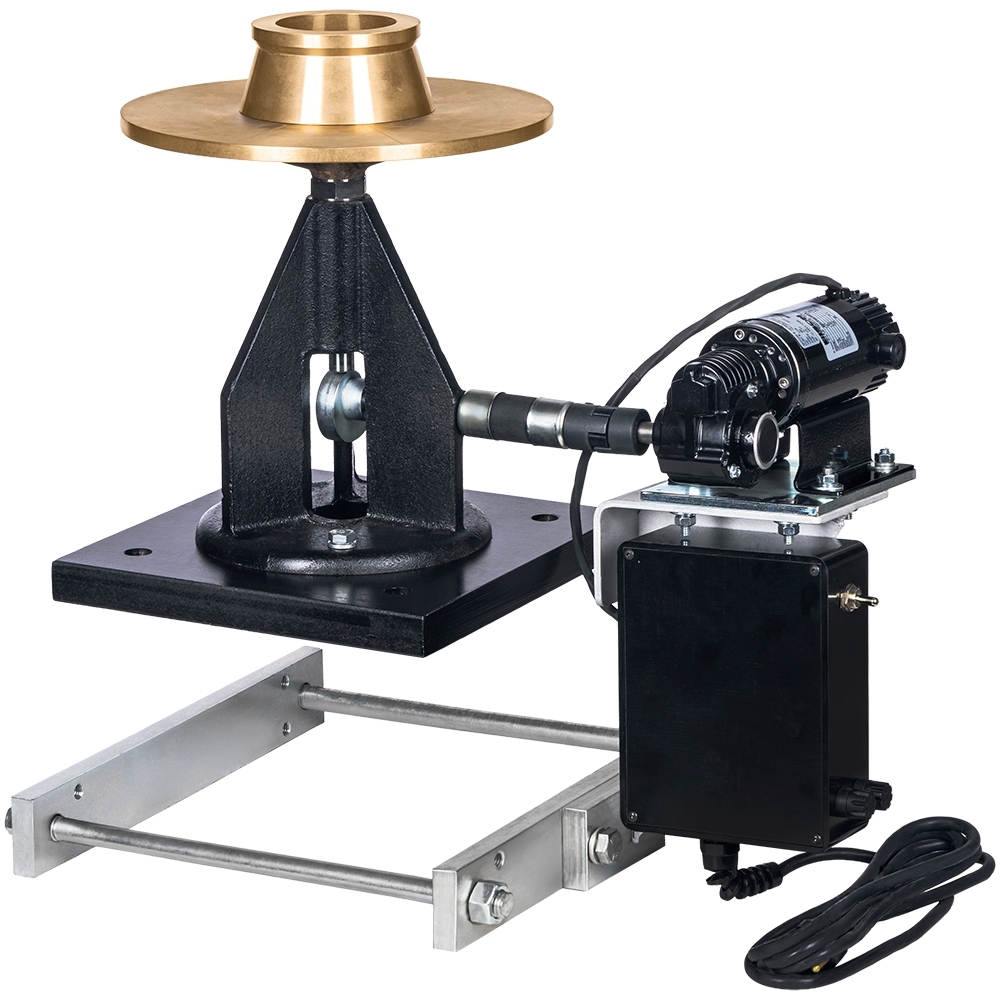

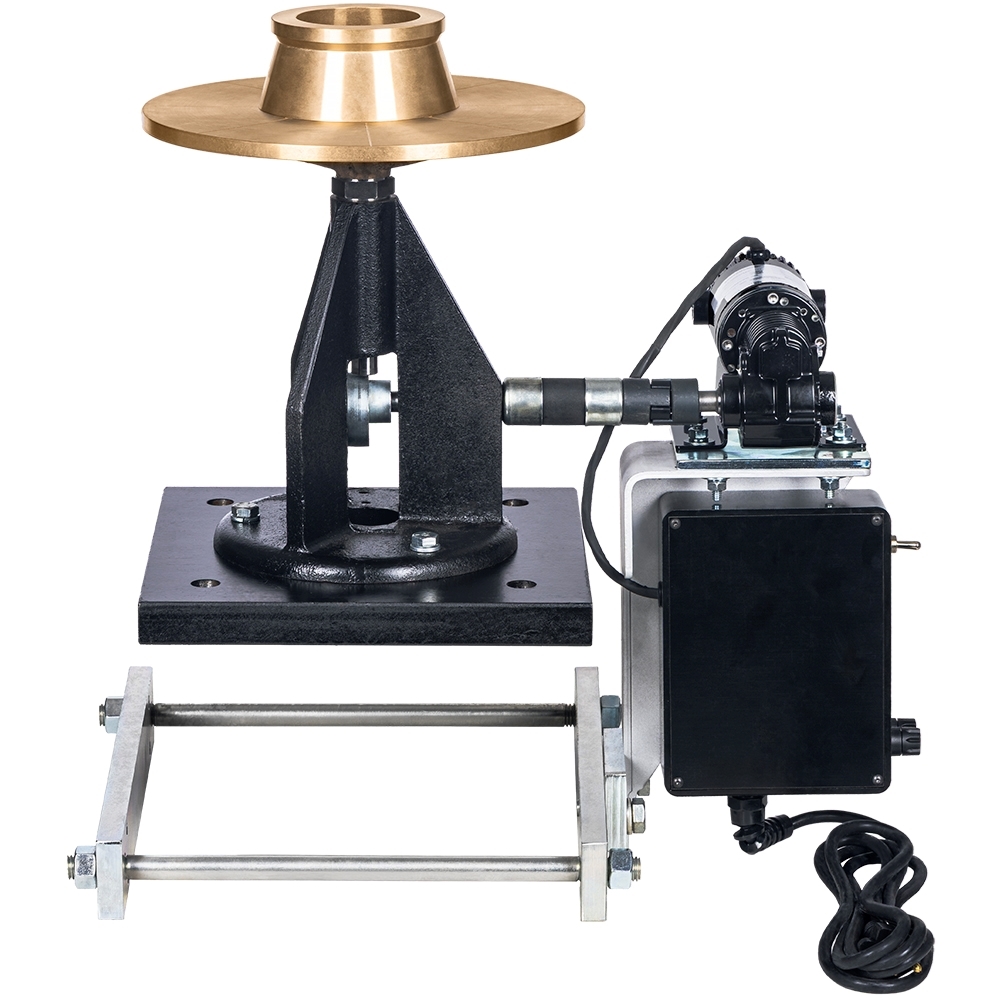

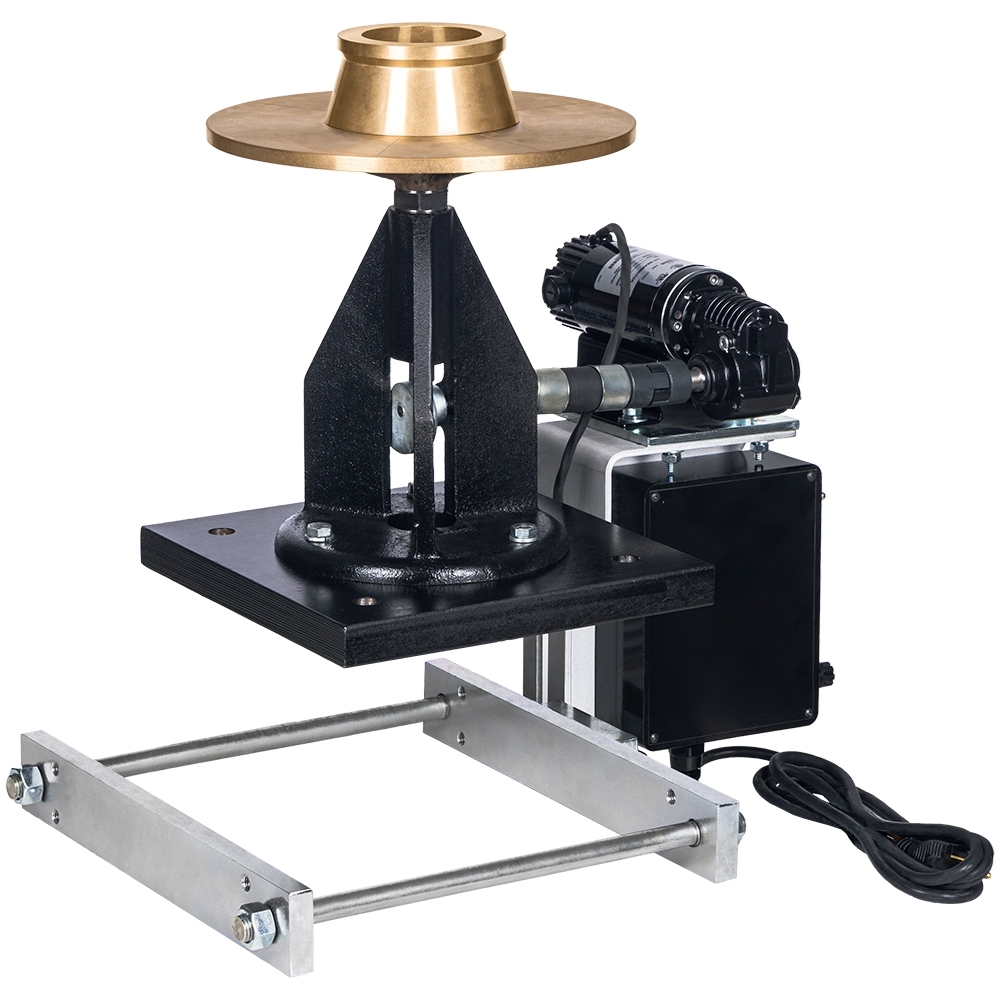

Motorized Flow Tables are used for determining consistency (flow) and for preparing mortars of standard consistency for testing. Flow Tables have 10in (254mm) diameter rigid cast bronze table supported in cast iron frame. Base and special drive motor bracket mount to the concrete pedestal. Concrete pedestal not included with Flow Table. Included cast bronze flow mold has 2.75/4in (70/102mm) top/bottom ID with a collar. HM-272 and HM-273 have rates controlled precisely in accordance with ASTM and AASHTO standards.

Features:

  • Cast bronze table supported in cast iron frame
  • Mounts to the concrete pedestal (not supplied)

Included Items:

  • Motorized Flow Table (with or without counter)
  • Cast bronze flow mold

Accessories:

Electrical

HM-272 and HM-273: 115V/60Hz

HM-272F and HM-273F: 230V/50-60Hz

Height 9.75in (25mm)
Dimensions

Table Top Diameter: 10in (254mm)

Base Plate: 10 x 10 x 1in (250 x 250 x 25mm)

Estimated Shipping Weight

HM-272: 110.0lb (49.90kg)

HM-272F: 110.0lb (49.90kg)

HM-273: 80.0lb (36.29kg)

HM-273F: 80.0lb (36.29kg)

Enter your name, email, and questions below and we will reply during business hours (8am - 5pm EST, Monday through Friday).

Electrical

HM-272 and HM-273: 115V/60Hz

HM-272F and HM-273F: 230V/50-60Hz

Height 9.75in (25mm)
Dimensions

Table Top Diameter: 10in (254mm)

Base Plate: 10 x 10 x 1in (250 x 250 x 25mm)

Estimated Shipping Weight

HM-272: 110.0lb (49.90kg)

HM-272F: 110.0lb (49.90kg)

HM-273: 80.0lb (36.29kg)

HM-273F: 80.0lb (36.29kg)
