50mm Fixed Ring Consolidometer

Model: HMA-83A
$435.0000
Price: $435.00

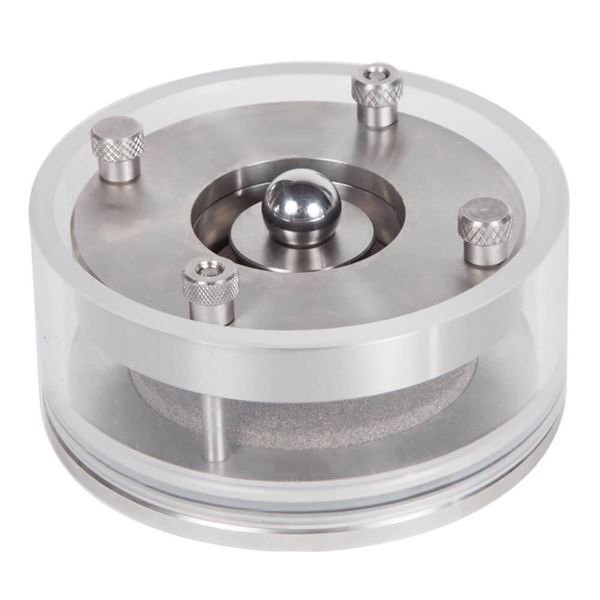

50mm (1.97in) Fixed Ring Consolidometer has an acrylic inundation ring attached to a stainless steel base and is used in laboratory consolidation soil testing with Karol-Warner or other manufacturers Consolidation Load Frames. This consolidometer loads the specimen from the top while the sample ring base remains fixed in place. It is equipped with a 0.75in (19mm) high stainless steel cutting sample ring with built-in cutting edges for efficient sample preparation. Clamping rings are fitted with lifting knobs for easy removal after the test. Loading pad, attached acrylic inundation ring, top, and bottom porous stones, and a load-bearing ball are also included. Components are available separately. These Consolidometers work with most other manufacturer’s units.

Features:

  • Soil Consolidometers fit most Consolidation Load Frames
  • Stainless steel construction
  • Acrylic inundation ring allows observation during preparation and testing

Included Items:

  • 50mm Fixed Ring Consolidometer
    • Cutting Sample Ring
    • Two Porous Stones
    • Loading Ball

Accessories:

Related blogs:

Specimen Size 1.97in (50mm)
Consolidometer Type Fixed Ring
Product Dimensions 5 x 2.25in (127 x 57.15mm) Dia. x H
Estimated Shipping Weight 6.0lb (2.72kg)

Enter your name, email, and questions below and we will reply during business hours (8am - 5pm EST, Monday through Friday).

Specimen Size 1.97in (50mm)
Consolidometer Type Fixed Ring
Product Dimensions 5 x 2.25in (127 x 57.15mm) Dia. x H
Estimated Shipping Weight 6.0lb (2.72kg)
Meets Standard(s):
