Ohaus Moisture Analyzers

Ohaus MB27 Moisture Analyzer

Ohaus MB27 Moisture Analyzer

Model: OB-43
$2588.0000
Price: $2,588.00
Ohaus MB90 Moisture Analyzer

Ohaus MB90 Moisture Analyzer

Model: OB-44
$3420.0000
Price: $3,420.00
Ohaus MB120 Moisture Analyzer

Ohaus MB120 Moisture Analyzer

Model: OB-45M
$4344.5000
Price: $4,344.50

Ohaus Moisture Analyzers quickly and accurately measure the moisture content of soils, aggregates, and virtually any other substances from the difference in weight before and after drying. Samples are weighed then quickly heated with the halogen dryer unit until the moisture vaporizes. Upon completion of drying, results are displayed as % moisture content, % solids, weight or % regain with 0.01% accuracy. Mechanical keys provide fast, intuitive operation and a built-in level ensures uniform heating. Compact, chemically resistant construction stands up to daily laboratory and field use.

OB-43 Ohaus MB27 Moisture Analyzer has a 90g (3.17oz) capacity, temperature range of 122°–320°F (50°–160°C) in 5°C increments, and repeatability is 0.2% (3g sample) and 0.05% (10g sample). Throughout the drying process, the backlit LCD display shows the current temperature, time, and the percent moisture, solids, or weight. Upon test completion, the moisture or solids content of the sample is displayed. The RS232 port provides data transfer to a PC or the OBA-44 Portable Printer.

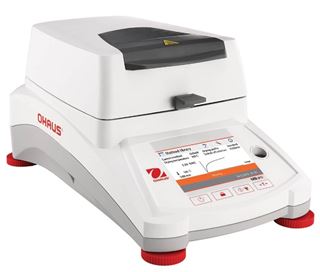

OB-44 Ohaus MB90 Moisture Analyzer has a 90g (3.17oz) capacity, temperature range of 104°–392°F (40 °–200°C) in 1°C increments, and repeatability is 0.18% (3g sample) and 0.02% (10g sample). The full-color 4.3in touchscreen has intuitive, icon-driven navigation for simple operation and offers 14 language options for all display screens. Five displays are available throughout the drying process showing moisture, solids, or regain content. Additional displayed information includes the test method name, temperature/time, actual temperature, elapsed time, test duration, moisture, and curve. Two drying profiles maximize accuracy: fastest time to temp and minimal temperature overshoot. Internal memory can store two test methods and 100 test results for each method. Additional data can be imported from a USB drive. Test data and an all-system data backup can be saved directly to a USB drive. Two USB and a RS232 port allow simultaneous connections to a PC, USB drive, and the optional OBA-44 Portable Printer. A battery backup protects data in the event of a power outage. A stainless steel drying pan and easily removable heating chamber components allow quick cleaning with no tools required.

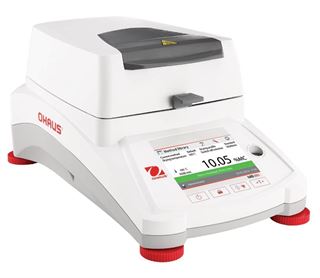

OB-45M Ohaus MB120 Moisture Analyzer has a 120g (4.23oz) capacity, temperature range of 104°–446°F (40°–230°C) in 1°C increments, and repeatability is 0.05% (3g sample) and 0.015% (10g sample). The full-color 4.3in touchscreen has intuitive, icon-driven navigation for simple operation and offers 14 language options for all display screens. Five displays are available throughout the drying process showing moisture, solids, or regain content. Additional displayed information includes the test method name, temperature/time, actual temperature, elapsed time, test duration, moisture, and curve. Two USB and a RS232 port allows simultaneous connections to a PC, USB drive, and the optional OBA-44 Portable Printer. Drying time is selectable and includes manual, timed, and an AutoFree mode based on a mean weight or percentage loss per unit of time. Four drying profiles maximize accuracy: standard, fast, ramp, and step. The built-in library can store 100 test methods with setup parameters and results for the statistical analysis of measurements. Additional data can be imported from a USB drive. Test data and an all-system data backup can be saved directly to a USB drive. Three levels of user management ensure data integrity. A battery backup protects data in the event of a power outage. A stainless steel drying pan and easily removable heating chamber components allow quick cleaning with no tools required.

OB-43 Features:

  • Backlit LCD display
  • Built-in levelling
  • Three drying modes
  • RS232 interface

OB-44 Features:

  • Full-color 4.3in touchscreen
  • Two selectable drying profiles and three drying modes
  • Built-in levelling
  • Built-in battery backup
  • RS232 and USB interfaces
  • Store results directly to USB drive
  • 14 language options
  • Tool-free cleaning

OB-45M Features:

  • Full-color 4.3in touchscreen
  • Built-in temperature guide to estimate proper temperature and drying profile Internal memory stores up to 100 test methods with parameters Four selectable drying profiles and seven drying modes
  • Built-in levelling
  • Built-in battery backup
  • RS232 and USB interface
  • Store results directly to USB drive
  • 14 language options
  • Tool-free cleaning

Included Items:

  • Moisture Analyzer
  • Draft shield
  • Pan support
  • Pan handle 80 sample pans (OB-44, OB-45M) or 50 sample pans (OB-43)
  • Glass fiber pad
  • In-use cover
  • Power cable
  • User guide

Accessories:

  • OBA-48 Fiber Filters for Moisture Analyzer are non-hydrophilic, binder-free borosilicate glass fiber pads to assist in sample distribution of liquid and high-moisture materials. (package of 200)
  • OBA-44 Impact Printer ensures accurate documentation of weighing results
Capacity

OB-43 and OB-44: 90g (3.17oz)

OB-45M: 120g (4.23oz)

Repeatability

OB-43: 0.2% (3g sample), 0.05% (10g sample)

OB-44: 0.18% (3g sample), 0.02% (10g sample)

OB-45M: 0.05% (3g sample), 0.015% (10g sample)

Temperature Range

OB-43: 122°–320°F (50°–160°C), 5°C increments

OB-44: 104°–392°F (40 °–200°C), 1°C increments

OB-45M: 104°–446°F (40° –230°C), 1°C increments

,

OB-43: LCD, backlight

OB-44 and OB-45M: Full-Color 4.3in touchscreen

Unit of Measure

OB-43: %; Gram

OB-44 and OB-45M: Gram; %MC; %RG; %DC

Communication Port(s)

OB-43: RS232

OB-44: USB host controller x 2; USB storage; RS232

OB-45M: USB host controller x 2; USB storage; RS232

Power Supply

115V/60Hz, AC adapter

OB-43: 100–240V/50–60Hz

OB-44: 120–240V/50–60Hz

OB-45M:120–240V/50–60Hz

Platform Size 3.5in (90mm) Diameter
Product Dimensions

OB-43: 6.5 x 11 x 5in (165 x 280 x 127mm), WxDxH

OB-44: 8.31 x 13.98 x 7.09in (211 x 355 x 180mm), WxDxH

OB-45M: 8.31 x 13.98 x 7.09in (211 x 355 x 180mm), WxDxH

Estimated Shipping Weight

OB-43: 8.5lb (3.86kg)

OB-44: 18.5lb (8.39kg)

OB-45M: 18.5lb (8.39kg)
