Geotechnical Gauge

Model: HM-512
Price: $26.00

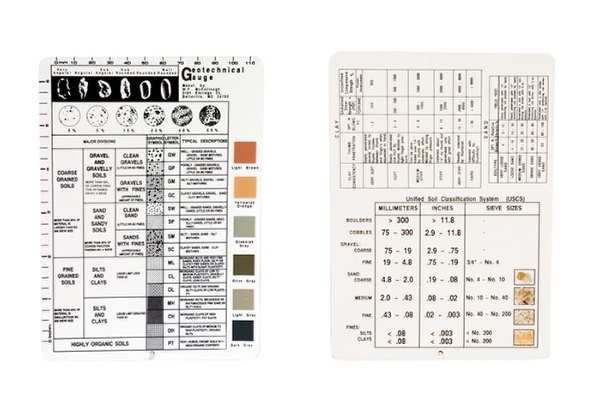

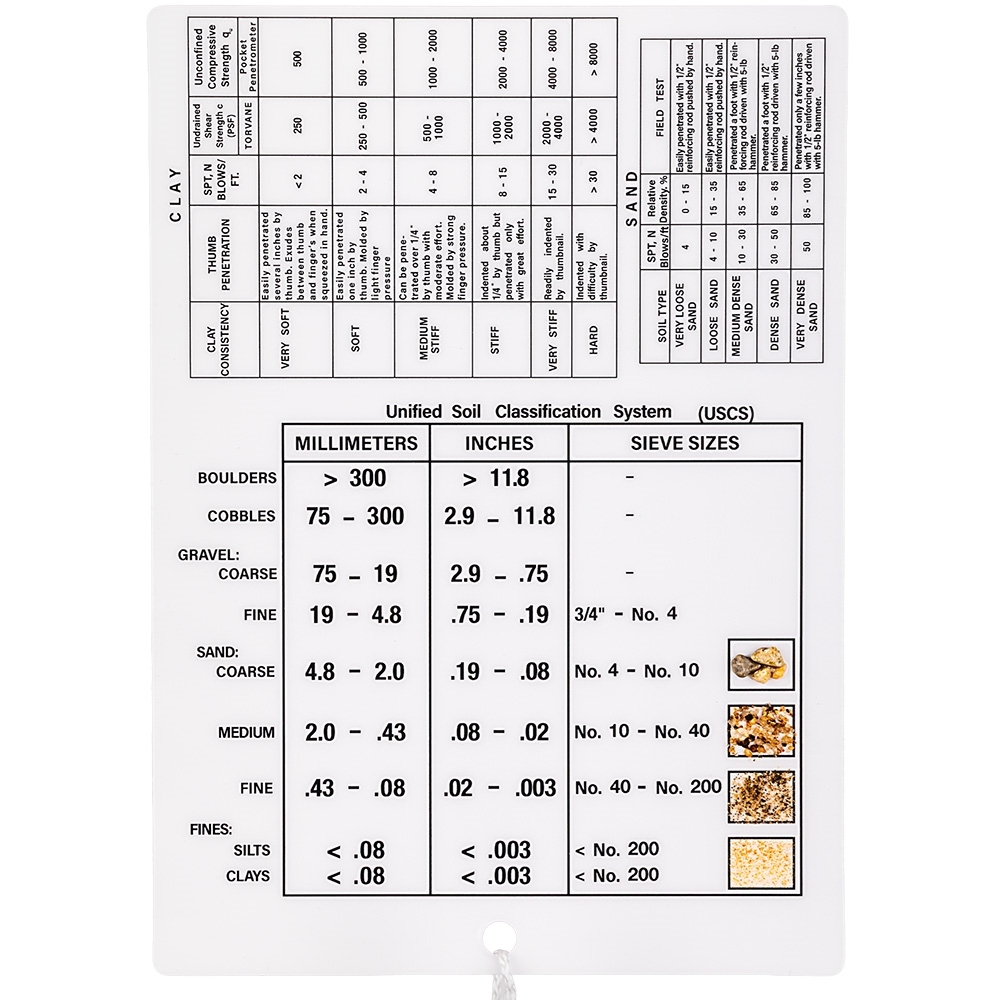

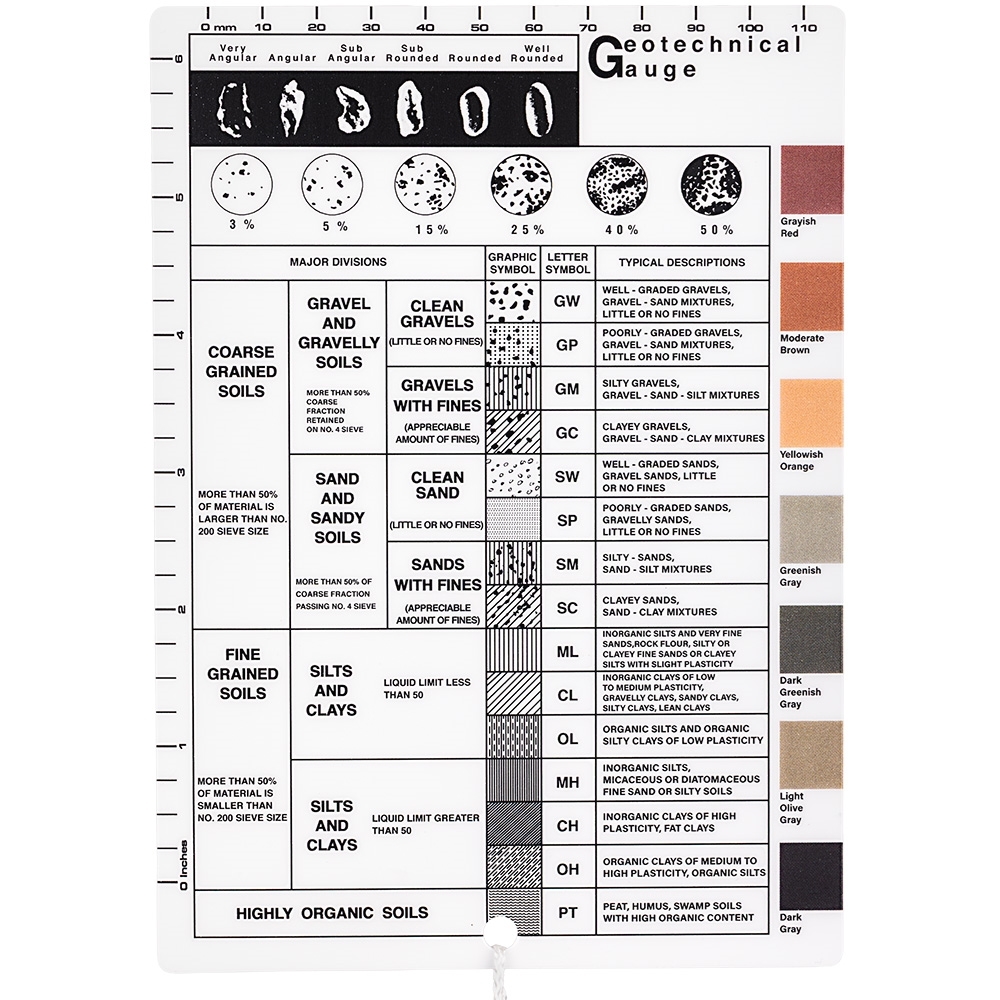

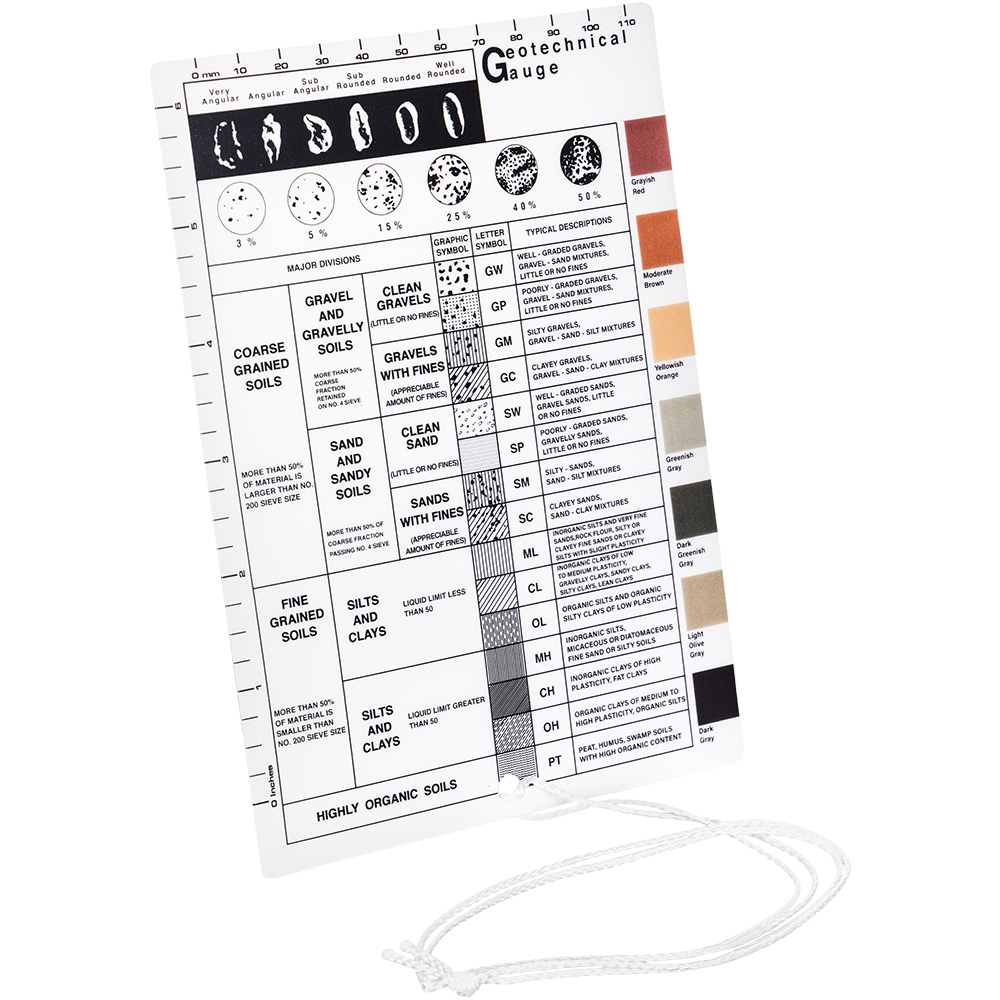

HM-512 Geotechnical Gauge is a water-resistant 5x7in (127x178mm) plastic card with a lanyard that contains a wealth of information for the classification of soils. This two-sided card has six color chips, four patches of sized grains, and four tables for classifying soils by particle size using the Unified Soils Classification System. It also categorizes coarse and fine-grained soils into fifteen descriptive categories from gravels and sands to silts and clays, as well as the sand by type from very loose to very dense, and clays from very soft to hard. In addition, categories are defined by appearance, handling properties, or by ranges of field and laboratory test results. Edges of the card have separate 0–6in and 0–110mm scales.


  • Water-resistant
  • Contains information on both sides
  • Scales in both in and mm

Included Items:

  • Geotechnical Gauge

Related blogs:

Product Dimensions 5 x 7in (127 x 178mm) WxH
Estimated Shipping Weight 1.0lb (0.45kg)

Enter your name, email, and questions below and we will reply during business hours (8am - 5pm EST, Monday through Friday).

Product Dimensions 5 x 7in (127 x 178mm) WxH
Estimated Shipping Weight 1.0lb (0.45kg)
