Sand Gauge

Model: HM-513
Price: $20.00

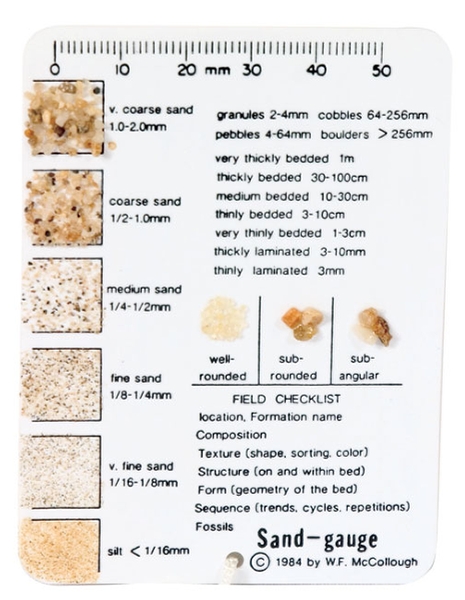

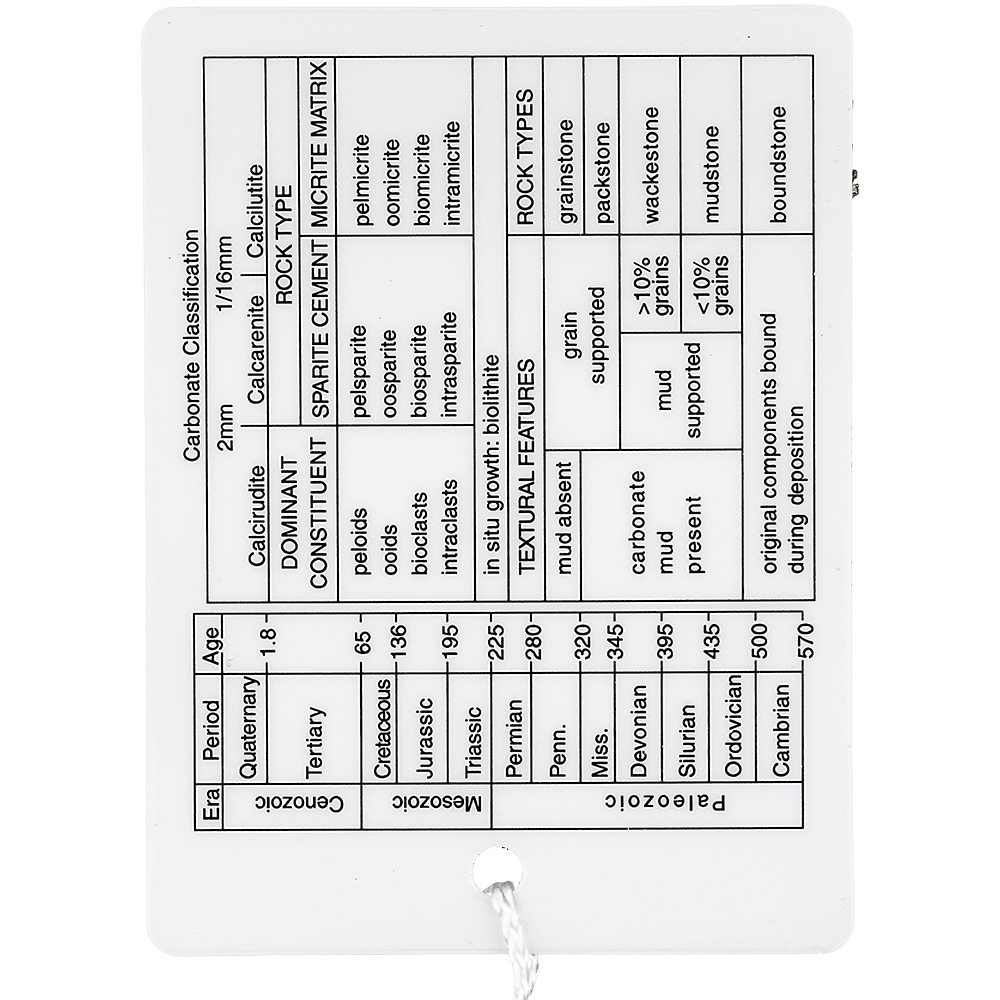

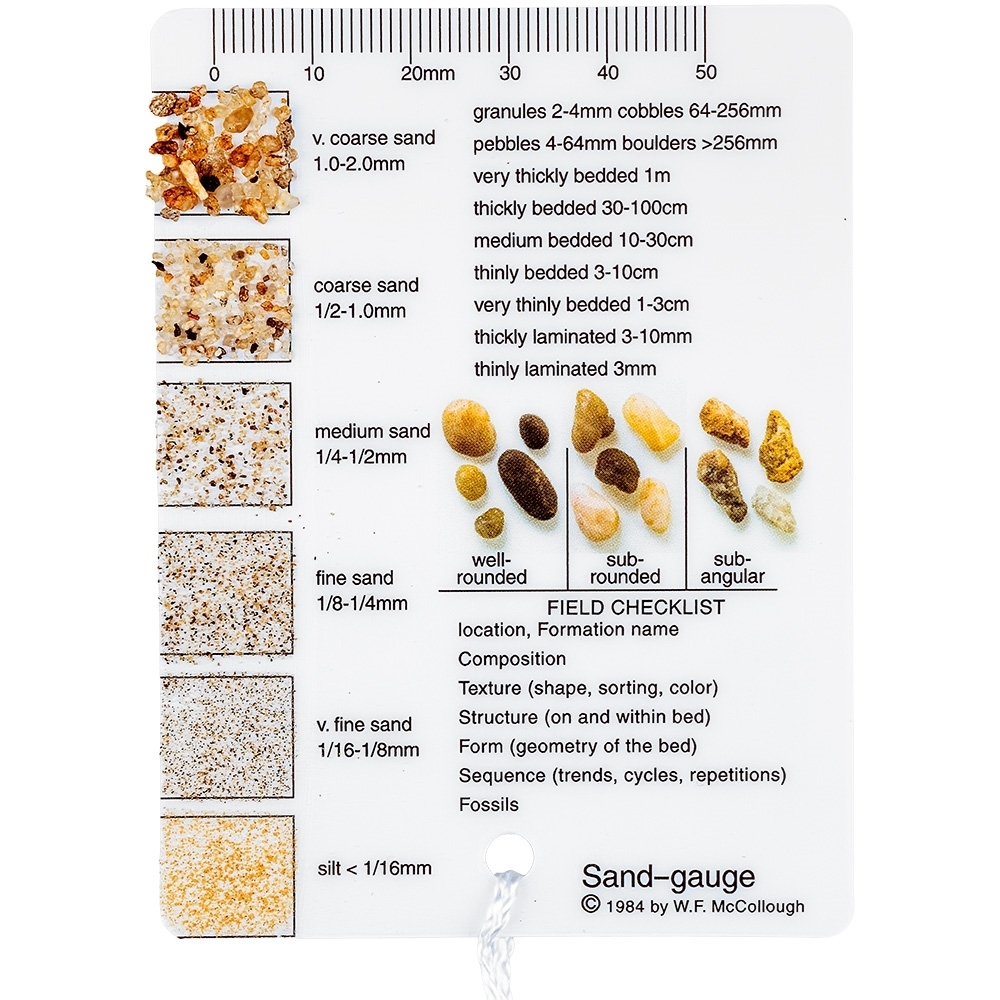

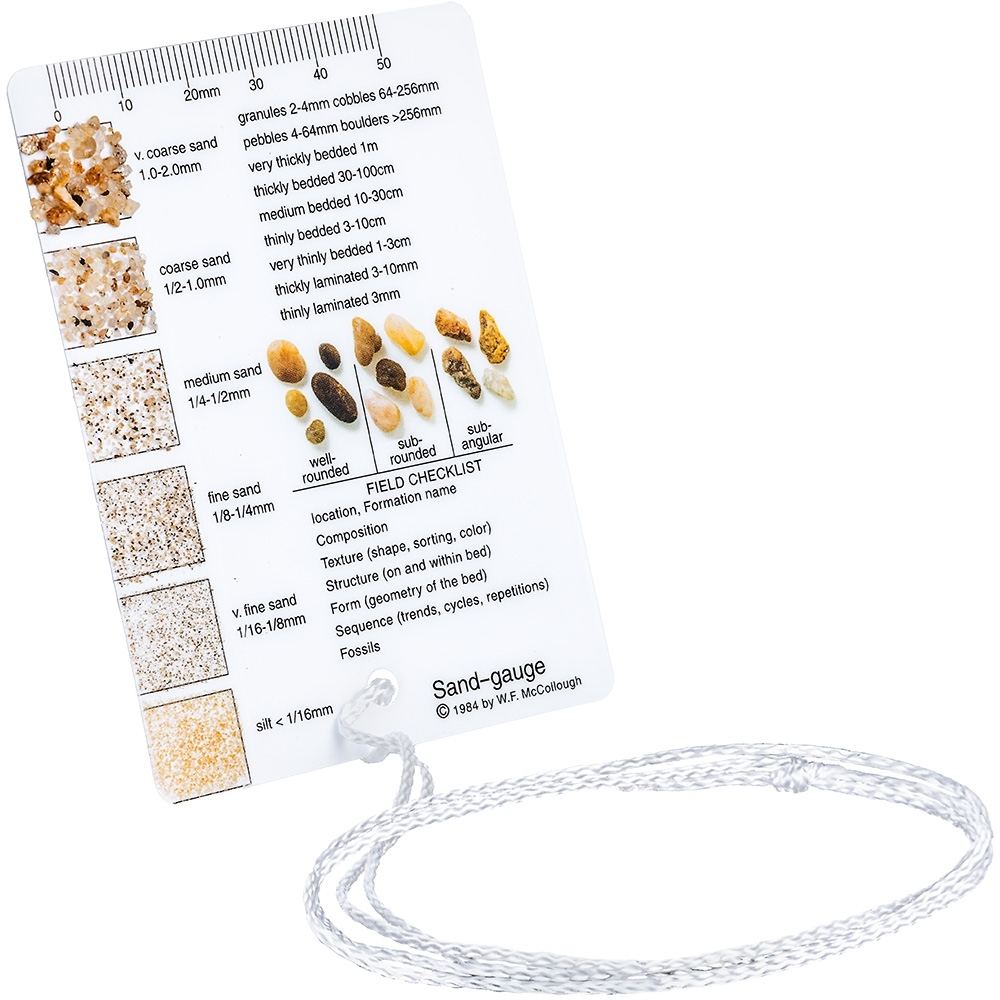

HM-513 Sand Gauge has nine granule patches which are firmly attached to the handy 3.5x2.5in (89x64mm) water-resistant plastic card to assist in defining roundness and size of particles from 2mm very coarse sand to 1/16mm silt. A checklist is included to assist in making field notes and defining bed thickness. The flipside of the chart has tables of geologic age and carbonate classification information. The gauge has a 0—50mm scale on one edge and an attached lanyard.


  • Contains granule patches and classification tables
  • Water-resistant

Included Items:

  • Sand Gauge
Product Dimensions 3.5 x 2.5in (89 x 64mm) WxD
Estimated Shipping Weight 1.0lb (0.45kg)

Enter your name, email, and questions below and we will reply during business hours (8am - 5pm EST, Monday through Friday).

Product Dimensions 3.5 x 2.5in (89 x 64mm) WxD
Estimated Shipping Weight 1.0lb (0.45kg)
