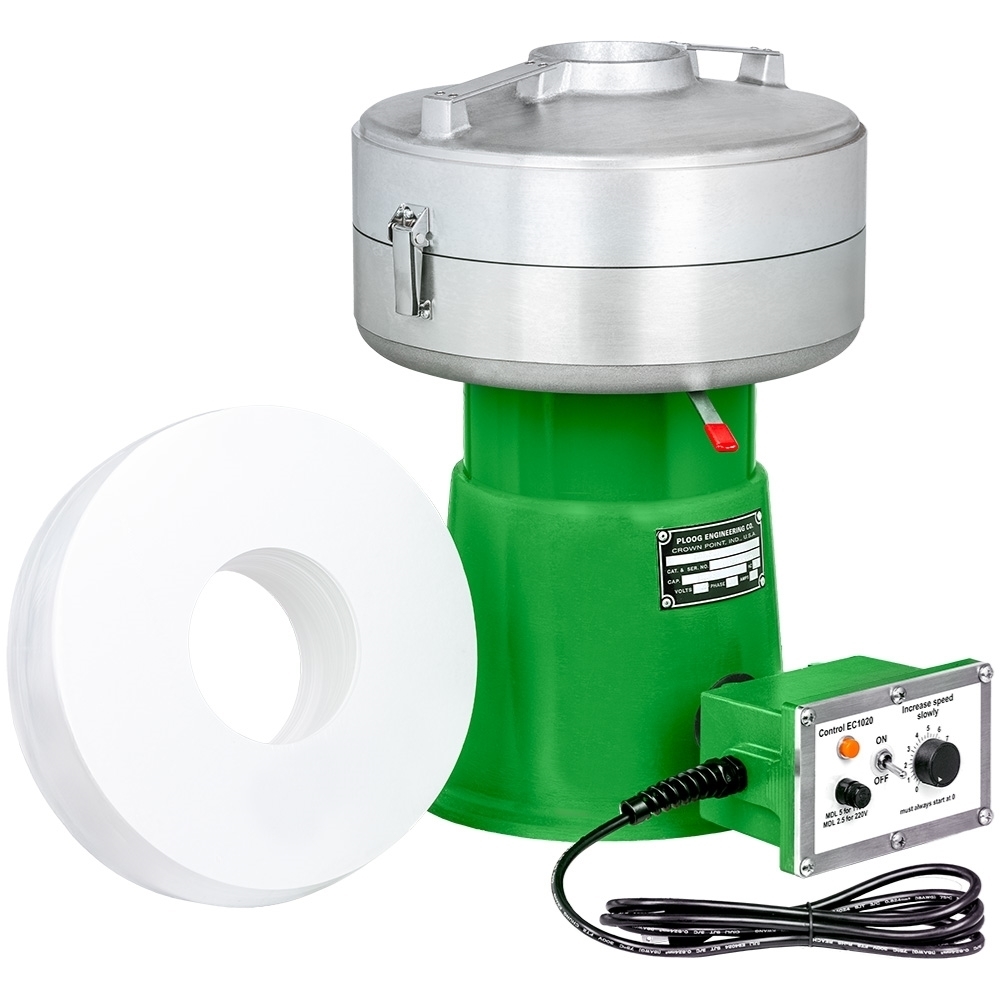

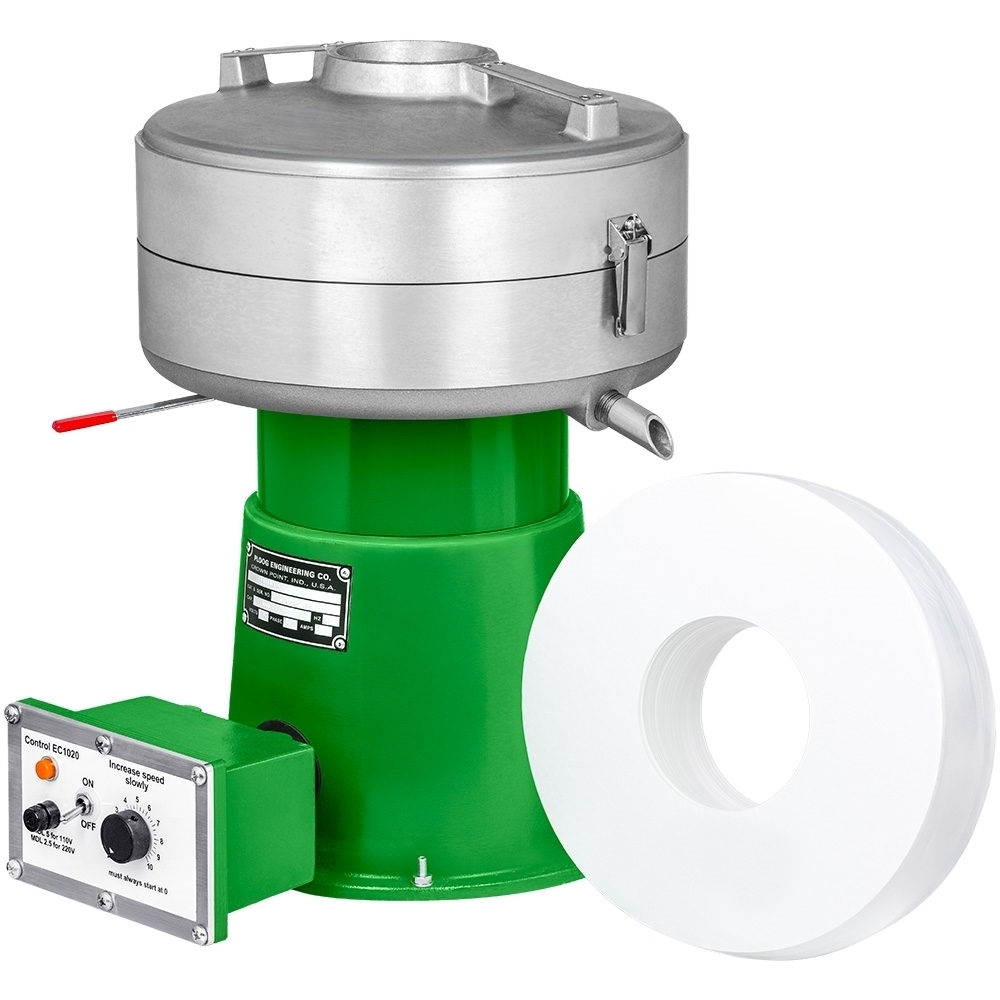

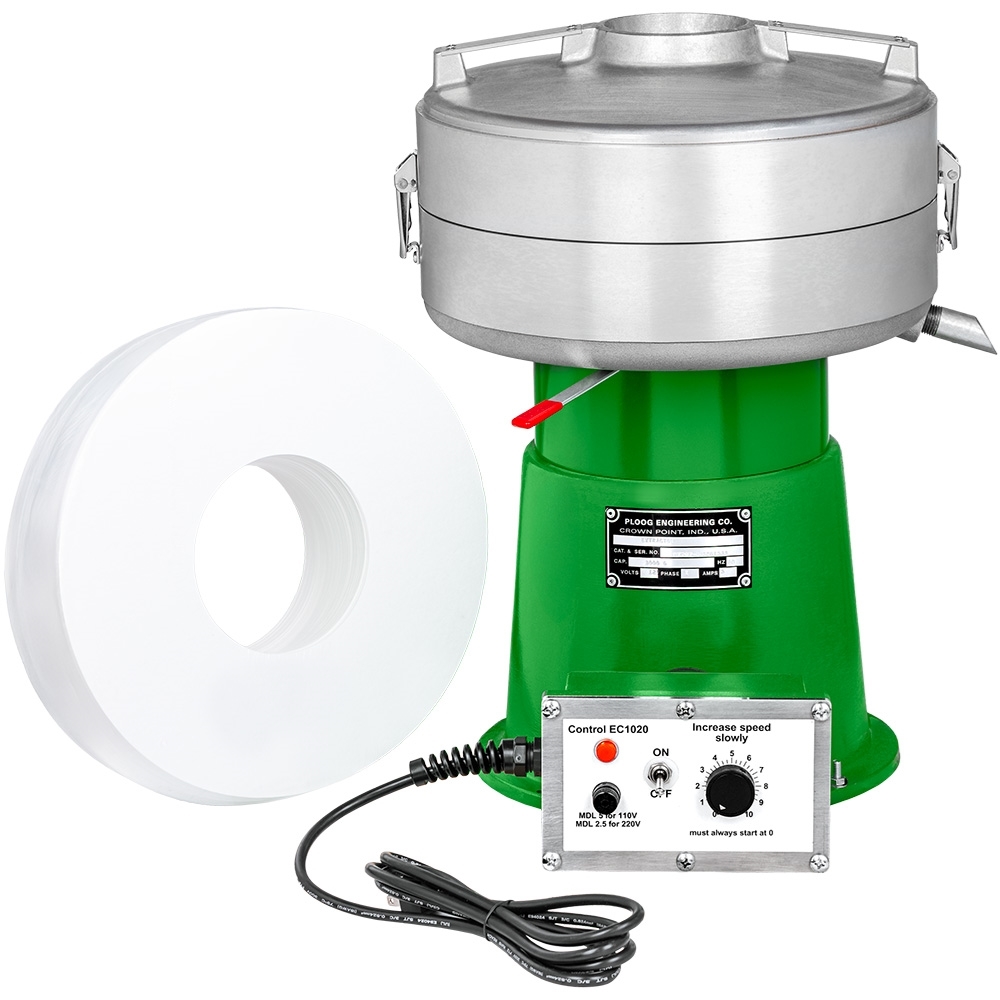

Explosion-Proof Centrifuge Extractors

Explosion-Proof Centrifuge Extractors deliver efficient and reliable quantitative determinations of bitumen content in hot-mix asphalt. All models feature rugged welded steel frames, simple and safe operation, and long service life.

The precision-machined, balanced inner aluminum bowl assembly lifts easily from the sealed housing for quick specimen handling. Rotation speeds up to 3,600rpm are set using the speed control knob, and an on/off switch with a manual hand brake to slow the rotation to a stop. The heavy-duty cast aluminum outer cover latches securely and includes an integral solvent dispensing cup.

Centrifuge Extractors are equipped with explosion-proof-rated motors and safe transformers, enclosed in a rugged welded tubular steel frame. Models are available with 1,500g or 3,000g capacity and operate on a dual-rated 115V/230V, 50Hz/60Hz motor.

Key Features

• Variable rotation speeds up to 3,600rpm
• Sample capacities from 1,500g to 3,000g

Included Items

• Explosion-Proof Gilson Centrifuge Extractor (1,500g or 3,000g capacity)
• (100) Filter Rings

Accessories

• HMA-263 Gilson Centrifuge Extractor 1,500g Bowl increases efficiency when testing multiple samples
• HMA-264 Gilson Centrifuge Extractor 3,000g Bowl
• HMA-265 Gilson Centrifuge Extractor 9.75x2.5in Filter Rings, grade 923 prevents loss of fines during processing
• HMA-266 Gilson Centrifuge Extractor 11.75x2.5in Filter Rings, grade 923
• Power-Solv Extraction Solvent used in asphalt extraction when rinsing with water is not possible
