7.5in Flex-Wall Permeability Test Cell

7.5in Flex-Wall Permeability Cell, w/ Brass Fittings

7.5in Flex-Wall Permeability Cell, w/ Brass Fittings

Model: HMA-516
$1179.0000
Price: $1,179.00
7.5in Flex-Wall Permeability Cell, w/ Stainless Steel Fittings

7.5in Flex-Wall Permeability Cell, w/ Stainless Steel Fittings

Model: HMA-516S
$1464.0000
Price: $1,464.00

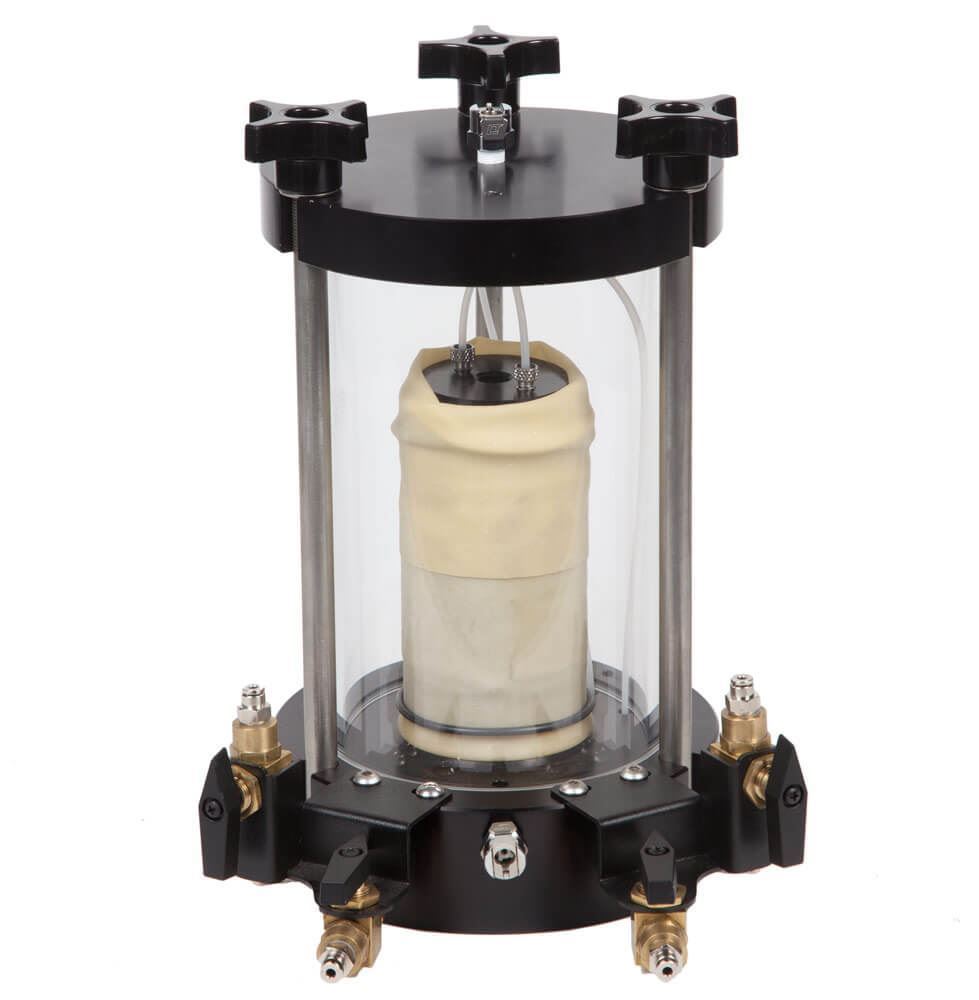

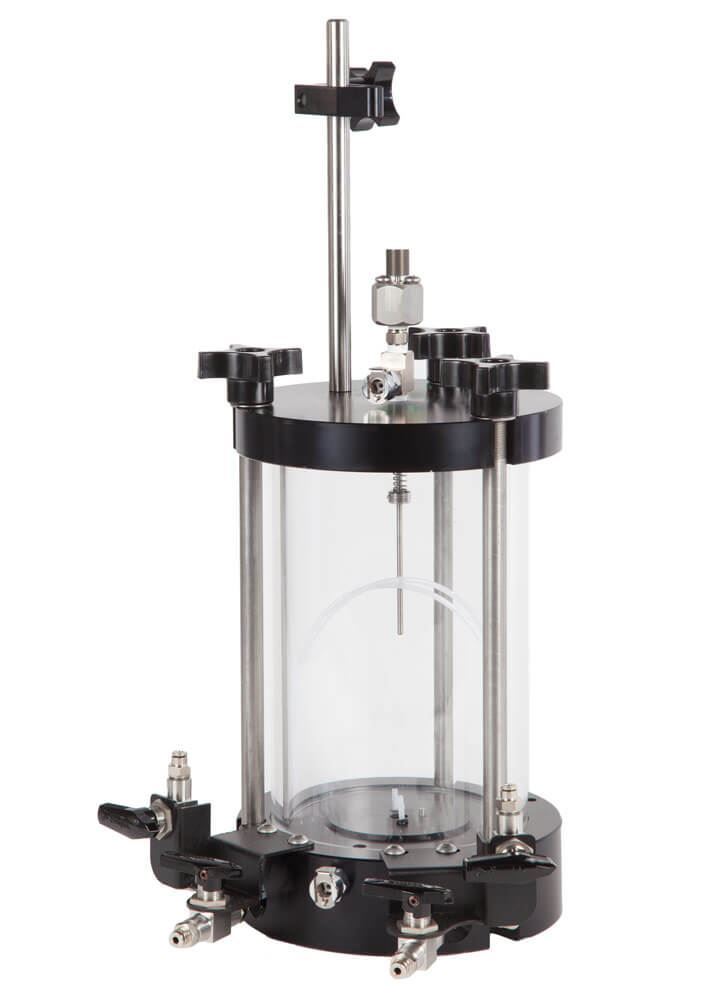

7.5in (191mm) Flexible-Wall Permeability Test Cells are compatible with Gilson HM-350M Master Control Panel or HM-350A Auxiliary Control Panel, and other similar systems. The units have heavy-wall clear acrylic chambers and are equipped with solid machined-aluminum bases. Test Cells have precision zero-volume change ball valves and are constructed with rugged quality fittings. The maximum operating pressure is 150psi (10.3bar) – inquire about units built to handle higher test pressures. Chamber has an inside diameter of 7.5x13.5in (191x343mm) Dia.xH.

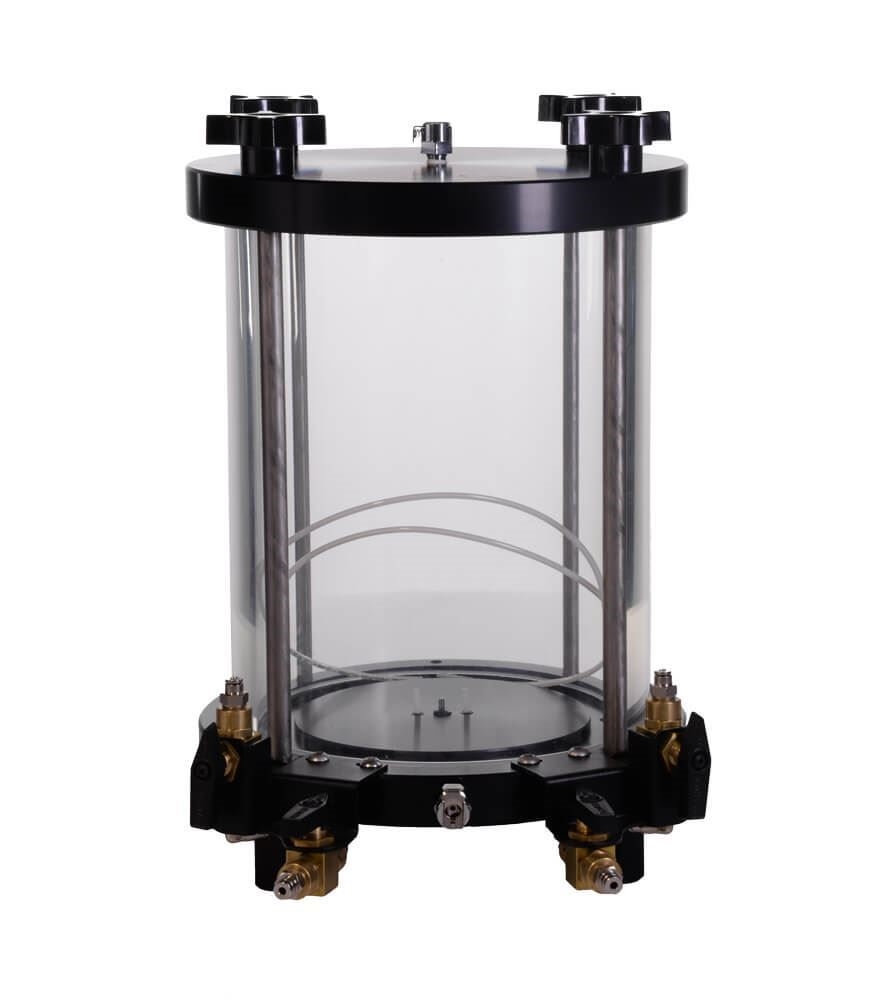

HMA-516 Test Cell is equipped with rugged quality brass fittings.

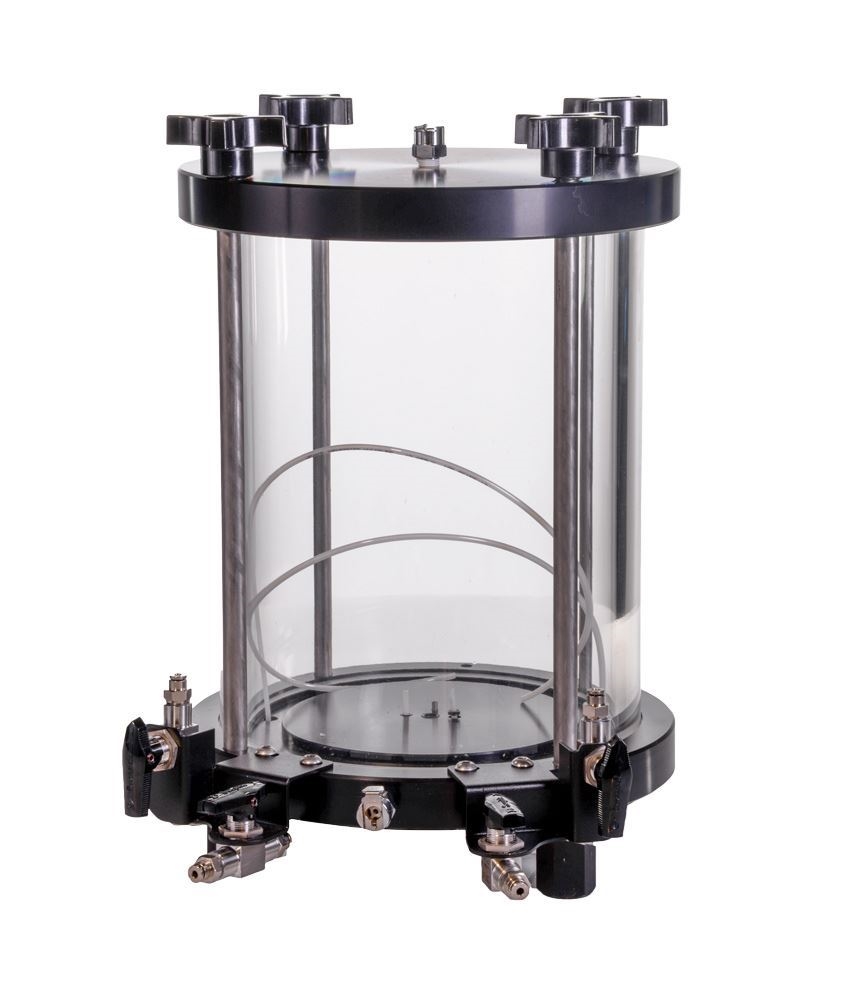

HMA-516S Test Cell has stainless steel valves and fittings that offer corrosion-resistance from harsh permeant fluids.

Permeability Test Cells can test a range of sample sizes; HM-516 models can test soil specimens from 1.4in (35.6mm) to 6.0in (152.4mm). A size-specific Test Cell Kit is required for use with test cells and sold separately on the Triaxial Cell Accessories page. Each kit contains the individual components needed for testing a specific sample size, and all components correlate to that size. The kit includes one anodized aluminum specimen cap and pedestal, two Porous Stones, two Latex Membranes and four O-Rings. Several optional accessories, including the HMA-506 Specimen Height Indicator for Triaxial/Permeability Testing and HMA-521 Digital Pore Pressure Gauge w/Transducer, are available separately and shown below.

Features:

  • Test chambers are heavy-wall, clear acrylic
  • Solid aluminum base
  • Choice of model with brass or stainless steel fittings
  • 150psi (10.3 bar) maximum operating pressure

Included Items:

  • HMA-516 6in Brass Flexible-Wall Permeability Test Chamber, or
    HMA-516S 6in Stainless Steel Flexible-Wall Permeability Test Chamber

Accessories:

Specimen Size 1.4in (35.6mm) to 6in (152mm)
Pressure Rating 100 to 200psi (6.9 to 13.8bar)
Chamber Dimensions 7.5 x 13.5in (191 x 343mm) Dia.xH
Product Dimensions 10 x 11 x 13in (254 x 279 x 330mm), WxDxH
Estimated Shipping Weight 33.0lbs (14.97kg)

Enter your name, email, and questions below and we will reply during business hours (8am - 5pm EST, Monday through Friday).

Specimen Size 1.4in (35.6mm) to 6in (152mm)
Pressure Rating 100 to 200psi (6.9 to 13.8bar)
Chamber Dimensions 7.5 x 13.5in (191 x 343mm) Dia.xH
Product Dimensions 10 x 11 x 13in (254 x 279 x 330mm), WxDxH
Estimated Shipping Weight 33.0lbs (14.97kg)
Meets Standard(s):
