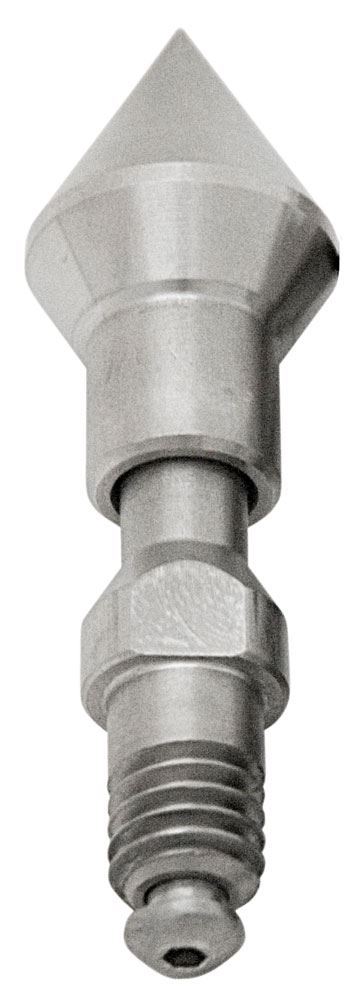

3cm² Cone

Model: HMA-272
$91.0000
Price: $91.00

3cm² Cone connects to HM-559A Static Cone Penetrometer inner or extension rods for determinations of soil compaction, soil consistency and bearing capacity of foundations and pavement subgrades. Penetrometer readings are halved when using the 3cm² cone instead of the conventional HMA-277 1.5cm² Cone. A penetration cone is required for use with the Static Cone Penetrometer.

Features:

  • Stainless steel construction
  • Threaded end attaches firmly to standard or extension rods of penetrometer
  • Measures 3cm² maximum area

Included Items:

  • 3cm² Cone
Material Stainless Steel
Estimated Shipping Weight 1.0lb (0.45kg)

Enter your name, email, and questions below and we will reply during business hours (8am - 5pm EST, Monday through Friday).

Material Stainless Steel
Estimated Shipping Weight 1.0lb (0.45kg)
