Vibrating Table

Vibrating Table (115V / 60Hz)

Vibrating Table (115V / 60Hz)

Model: HM-140
$3229.5000
Price: $3,229.50
Vibrating Table (230V / 50Hz)

Vibrating Table (230V / 50Hz)

Model: HM-140F
$2893.0000
Price: $2,893.00

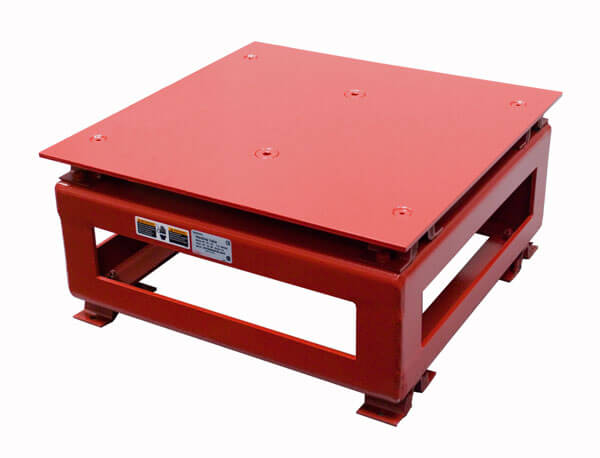

HM-140 Vibrating Table is used in consolidating fresh concrete in molds when forming cylinder and beam specimens. The unit has a 20x20in (508x508mm) large platform with a load capacity of up to 300lb (136kg) and is rated at 3,600 vibrations per minute. The electromagnetic table comes with a separate Control unit with on/off switch and rheostat to regulate amplitude. Power cable to the vibrating table is user-supplied.

Features:

  • 300lb load capacity; 3,600vpm
  • Large 20x20in platform
  • Separate Control box

Included Items:

  • Vibrating Table (115V/60Hz or 230V/50Hz)
  • Power Pulse 115/230V WT Control
Load Capacity 300lb (136kg)
Vibration Frequency 3,600vpm
Electrical

HM-140: 115V / 60Hz / 4.5Amps

HM-140F: 230V / 50Hz / 2.3Amps

Product Dimensions 20 x 20 x 10in (508 x 508 x 254mm) WxDxH
Estimated Shipping Weight 175.0lbs (79.38kg)

Enter your name, email, and questions below and we will reply during business hours (8am - 5pm EST, Monday through Friday).

Load Capacity 300lb (136kg)
Vibration Frequency 3,600vpm
Electrical

HM-140: 115V / 60Hz / 4.5Amps

HM-140F: 230V / 50Hz / 2.3Amps

Product Dimensions 20 x 20 x 10in (508 x 508 x 254mm) WxDxH
Estimated Shipping Weight 175.0lbs (79.38kg)
Meets Standard(s):
