Stainless Steel Cube Molds, 2x2in

Stainless Steel Cube Mold, 2 x 2in

Stainless Steel Cube Mold, 2 x 2in

Model: HM-296
$401.5000
Price: $401.50
Stainless Steel Cube Mold, 50 x 50mm

Stainless Steel Cube Mold, 50 x 50mm

Model: HM-296M
$570.0000
Price: $570.00
Stainless Steel Cube Mold w/Cover, 2 x 2in

Stainless Steel Cube Mold w/Cover, 2 x 2in

Model: HM-296C
$475.0000
Price: $475.00

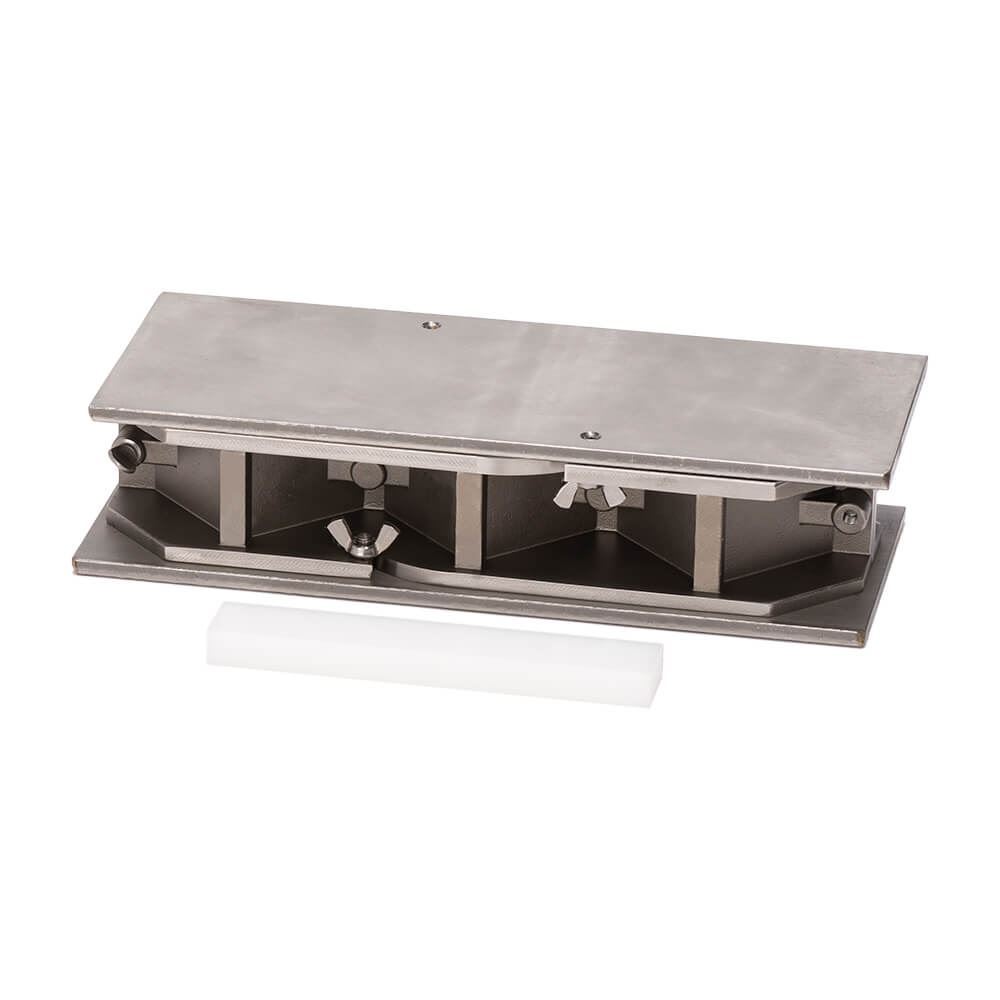

Stainless Steel Cube Mold, molds three compression test cubes at the same time. This machined three-gang mold has a diagonal design and a detachable stainless steel base plate. The included wing nuts secure the mold to the base and secure the mold sections together. The units are highly resistant to corrosion and easy to clean.

HM-296 Stainless Steel Cube Mold dimensions are 2x2in (51x51mm).

HM-296M Stainless Steel Cube Mold is designed for ISO testing, dimensions are 50x50mm (1.97x1.97in).

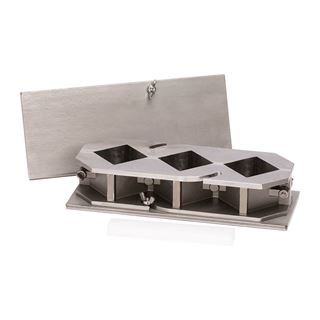

HM-296C Stainless Steel Mold with Cover has machined alignment guides on both the top and bottom for accurate positioning of the included 0.25in (96.4mm) thick stainless steel base and cover plates. Wing-nuts and studs secure mold halves together and clamp the base and cover to the mold body. This mold is appropriate for casting expansive grout samples. Precision machined extra cover plates for the HM-296C are available as HM-308C. Dimensions are 2x2in (51x51mm).

View our full line of Cube Molds.

Features:

  • Rugged stainless steel construction
  • Resists corrosion and easy to clean
  • Diagonal cube design
  • Mold and base secured with wing nuts and thumb screws

Included Items:

  • Stainless Steel Cube Mold

Accessories:

Specimen Size

HM-296: 2 x 2in (51 x 51mm)

HM-296M: 50 x 50mm (1.97 x 1.97in)

Estimated Shipping Weight

HM-296: 15.0lb (6.80kg)

HM-296M: 15.0lb (6.80kg)

HM-296C: 18.0lb (8.16kg)

Enter your name, email, and questions below and we will reply during business hours (8am - 5pm EST, Monday through Friday).

Specimen Size

HM-296: 2 x 2in (51 x 51mm)

HM-296M: 50 x 50mm (1.97 x 1.97in)

Estimated Shipping Weight

HM-296: 15.0lb (6.80kg)

HM-296M: 15.0lb (6.80kg)

HM-296C: 18.0lb (8.16kg)
