Grout Flow Cone Sets

Grout Flow Cones measure the flowability of fluid hydraulic grout by the flow cone method used in preplaced aggregate concrete. Flowability is measured by the time of efflux of a 1.725L sample of grout through the 0.5in (12.7mm) ID discharge tube orifice from the cone. Constructed of cast aluminum, the flow cone has a 7in (178mm) top ID and comes with an adjustable point gauge assembly to indicate the initial sample level.

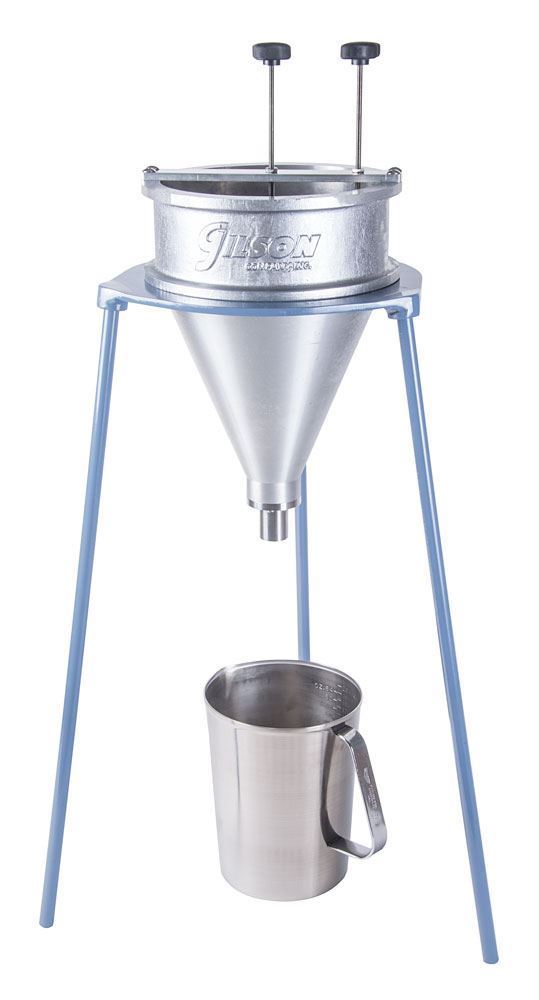

HM-372 Flow Cone Set includes a flow cone with replaceable 0.5in (12.5mm) Orifice, a 3-legged Steel Stand, and a 2L (2.1qt) Stainless Steel Beaker Receiving Container. This model meets standard ASTM C939.

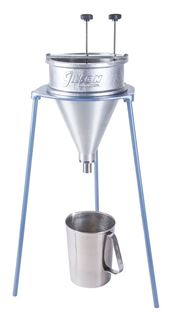

HM-373 Flow Cone Set is similar to the HM-372, except that the flow cone is fitted with a special 0.75in (19mm) Orifice for less flowable grouts, and meets ASTM D6449 test standard.

Flow Cones, Orifices, and other set components are also available for purchase separately. Flow cone models include the point gauge measurement assembly and are available with or without 0.5in or 0.75in Orifices. Both Orifice sizes are compatible with the HM-371 flow cone and easily interchanged. The sturdy painted Steel Stand is 20.5in (414mm) high. The 2qt (1.9L) Stainless Steel Beaker is sized to receive grout from a single test and graduated in oz and cc. The Stainless Steel Beaker, 6qt (5.7L) can collect grout from up to three tests.

Features:

• Durable cast aluminum construction
• Available with 0.5in or 0.75in Orifices
• Steel stand has adjustable feet
• Orifices can be easily switched
• Easily disassembled for transporting or storing

Included Items:

• Cast Aluminum Flow Cone with 0.5in or 0.75in Orifice
• 3-legged Flow Cone Steel Stand
• 2L (2.1qt) Stainless Steel Beaker
• Adjustable point gauge measurement assembly

Accessories:

• Flow Cone Stainless Steel Orifices are available in two sizes, 0.5in (12.7mm) for testing flowable grouts or 0.75in (19.0mm) is best used for thicker grouts.
• HM-372A Flow Cone Stand for proper positioning of flow cones
• HM-371 Grout Flow Cone for testing flowable grouts; requires HMA-146 or HMA-147 Orifice, purchased separately
• HM-372B Flow Cone w/ 0.5in Orifice measures flowability of grout materials
• HM-373B Flow Cone w/ 0.75in Orifice used for less flowable grouts
• MA-42 2qt Stainless Steel Beaker is sized to receive grout from a single test
• MA-48 6qt Stainless Steel Beaker collects grout from up to three tests
• MA-30 Large Display Stopwatch for determining flowability time

Related blogs:

• Cement Testing Resource Guide: Methods & Equipment
