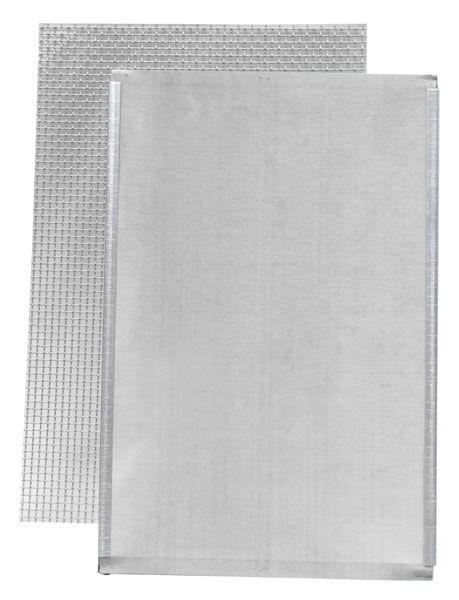

No. 4 Backing Cloth for Testing Screen

Model: TSA-135
$93.5000
Price: $93.50

TSA-135 No.4 Backing Cloth for Testing Screen Trays is installed to support fine mesh of Testing Screen Trays with #230, 270, 325 and 400 (63, 53, 45 and 38µm) wire cloth, and is also available for use with other fine mesh Screen Trays. The reinforcing backing cloth prevents damage and stretching of fine mesh cloth and extends service life. The sturdy ASTM E11 No. 4 (4.75mm) stainless steel wire cloth features flat-rolled surfaces to prevent abrasion of main screen cloth.

Features:

  • Standard reinforcement for No. 230 and finer cloth in Screen Trays
  • Available for other fine mesh sizes
  • Extends service life of fine mesh screen tray cloth

Included Items:

  • TSA-135 #4 Backing Cloth for Testing Screen
Tray Type Cloth Only
ASTM E11 Opening Size No.4 (4.75mm)
Cloth Material Stainless Steel
Product Dimensions 16 x 24in (406 x 610mm) WxD
Estimated Shipping Weight 3.0lb (1.36kg)

Enter your name, email, and questions below and we will reply during business hours (8am - 5pm EST, Monday through Friday).

Tray Type Cloth Only
ASTM E11 Opening Size No.4 (4.75mm)
Cloth Material Stainless Steel
Product Dimensions 16 x 24in (406 x 610mm) WxD
Estimated Shipping Weight 3.0lb (1.36kg)
Meets Standard(s):
