Gilson Tapping Sieve Shakers

Product Files
Gilson 8in Tapping Sieve Shaker (115V, 60Hz)

Gilson 8in Tapping Sieve Shaker (115V, 60Hz)

Model: SS-8R
$3094.0000
Price: $3,094.00
Gilson 8in Tapping Sieve Shaker (230V, 50Hz)

Gilson 8in Tapping Sieve Shaker (230V, 50Hz)

Model: SS-8RF
$3260.0000
Price: $3,260.00
Gilson 8in or 12in Tapping Sieve Shaker (115V, 60Hz)

Gilson 8in or 12in Tapping Sieve Shaker (115V, 60Hz)

Model: SS-12R
$3375.0000
Price: $3,375.00
Gilson 8in or 12in Tapping Sieve Shaker (230V, 50Hz)

Gilson 8in or 12in Tapping Sieve Shaker (230V, 50Hz)

Model: SS-12RF
$3690.0000
Price: $3,690.00

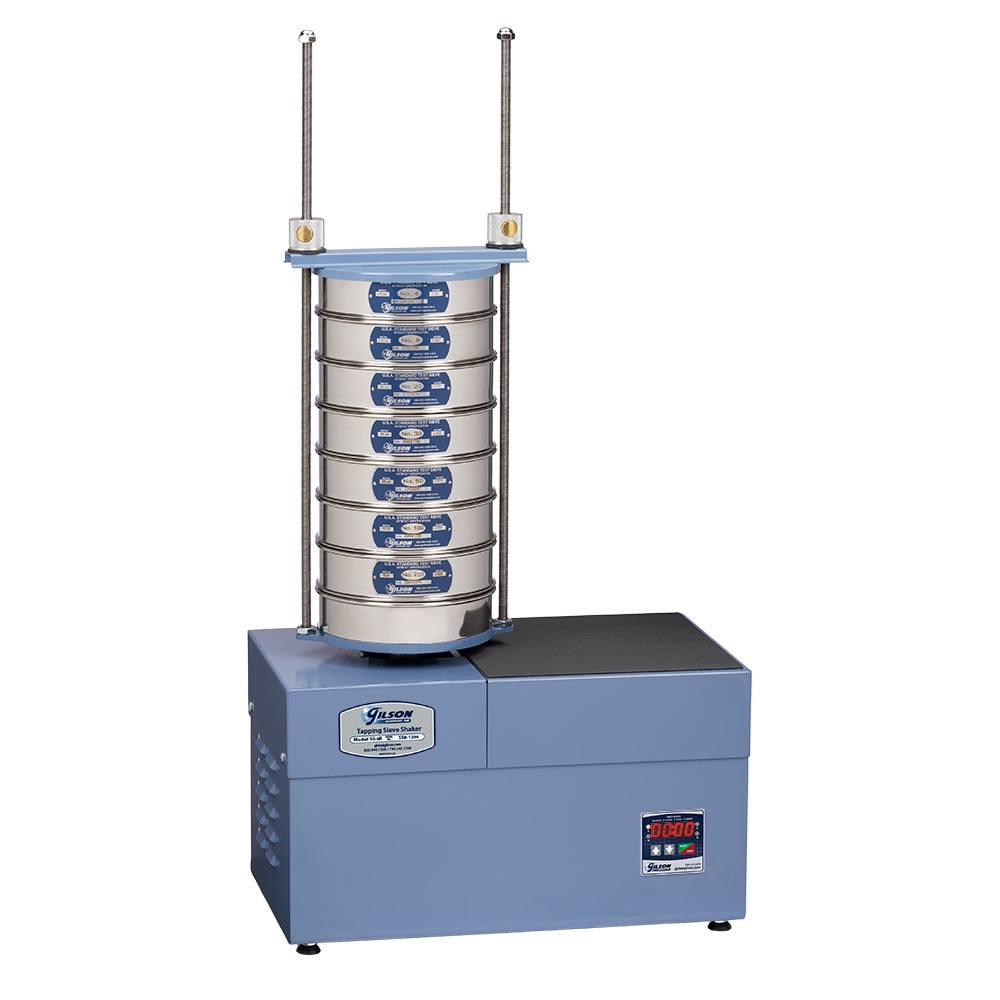

Gilson Tapping Sieve Shakers have a researched-based sieving action that produces sharp, repeatable separations quickly over a broad range of particle sizes and material types. The Gilson-engineered sieving action results from perfect circular rotation of the sieve stack plus vertical two-way tapping at 48 taps per minute. These high-capacity shakers can hold as many as twenty sieves, depending on model and sieve frame dimensions.

Superior circular rotation prevents "dead spots" on the sieve surfaces that prevent complete separation. Particles roll in all directions relative to the pattern of woven sieve mesh. The upward taps mix, reorient, and redistribute particles to present new orientations to sieve surfaces. Downward taps assist in passing near-size particles to clear the mesh openings.

Gilson's tapping sieve shakers have rugged painted steel housing and are powered by a 1/3hp heavy-duty motor. Both models feature the EZ-Clamp system, internal counterbalance system, adjustable footpads for leveling and easy relocation, and Gilson's exclusive digital controller.

Gilson's exclusive digital controller is easy-to-read and has a large, bright 0.5in (12.6mm) LED display. It provides precise test times for exact repeatability up to 99 minutes, at ±1 second, and it is simple to program. The controller features a pause function allowing the cycle to be suspended and resumed with no loss of test time and automatically resets to programmed test time for exact repeatability. A 5-second audible alarm sounds at the completion of the interval.

Gilson's easy-to-operate EZ-Clamp system with an integral sieve cover that slides freely up and down the clamp rods with the push of a button. Once the clamps are in position, simply release, then a quick twist secures the cover on the sieve stack. Once the test is complete, raise just enough to remove the sieve stack. The clamp assembly stays in place for the next test without readjustment.

Gilson's internal counterbalance system promotes stability during operation without the need for permanent mounting.

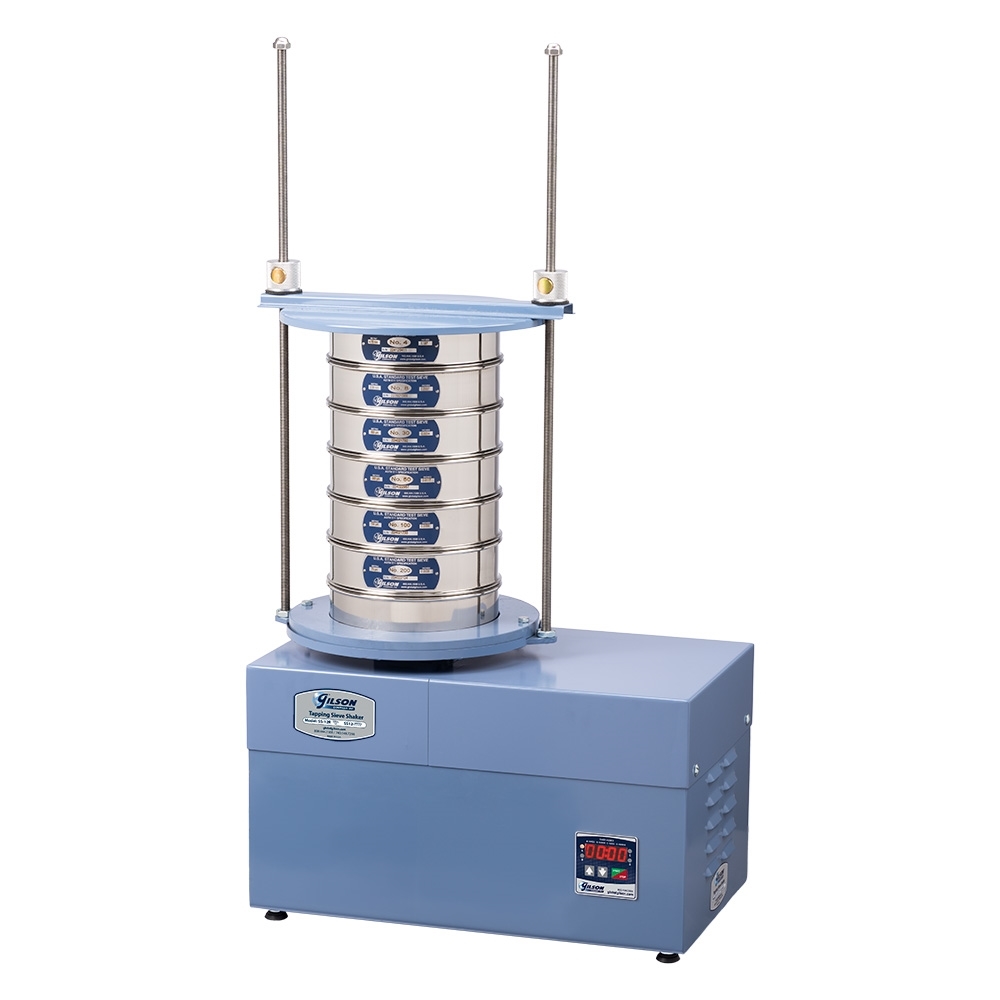

SS-8R models recommended particle size range is 1in–No.635 (25mm–20µm).

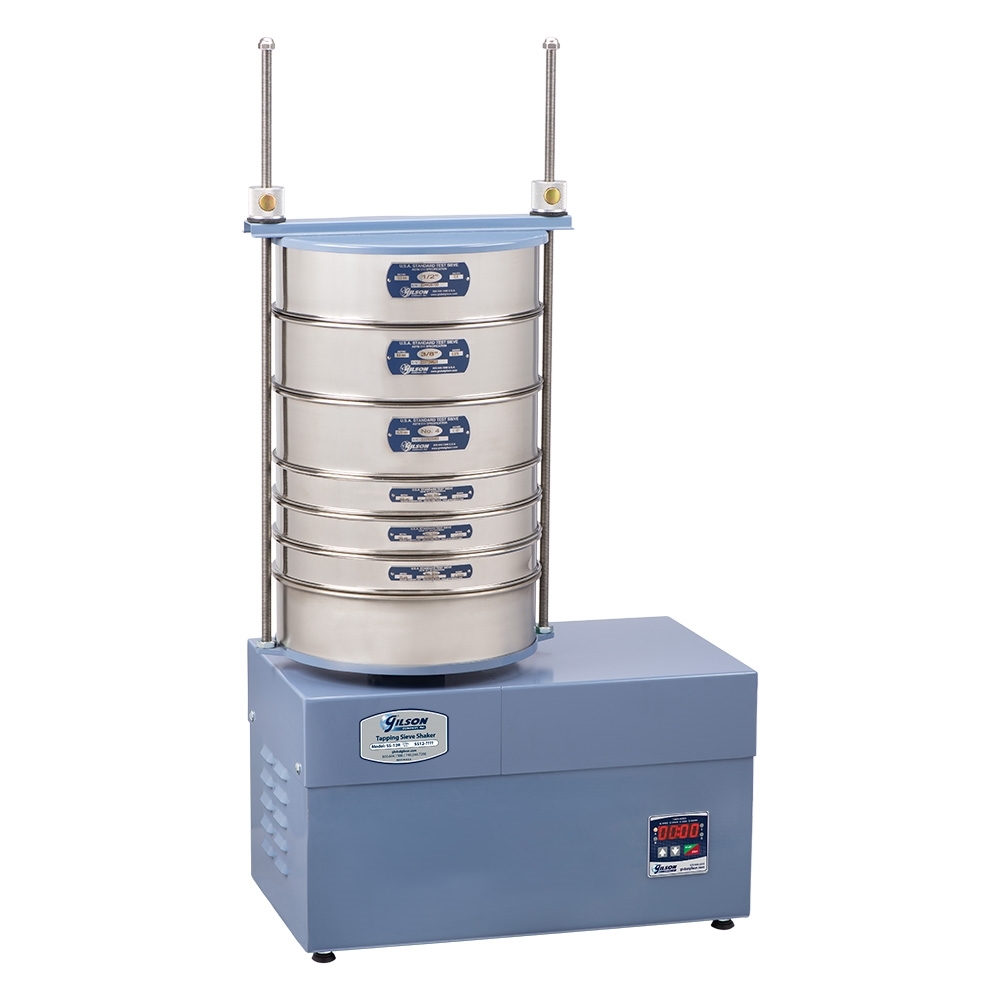

SS-12R models recommended particle size range is 2in–No.635 (50mm–20µm). The SS-12R models are supplied with an adapter to accept 8in (203mm) or 200mm sieves.

Note: characteristics of individual materials may affect the useful particle size range.

Sieve Shaker
Models
8in/200mm Sieve Capacity
(Full-Height / Half-Height)
12in/300mm Sieve Capacity
(Full-Height / Half-Height)
12in Sieve Capacity
(Intermediate-Height)
SS-8R 10 / 20
SS-12R 10 / 20 6 / 13 10

Features:

  • Two-way tapping
  • Innovative Gilson exclusive EZ-Clamp system
  • Smooth operation and easy-to-use
  • Internal counterbalance system
  • Precision digital controller
  • Accommodates up to twenty sieves

Included Items:

  • Gilson Tapping Sieve Shaker (115V, 60Hz or 230V, 50Hz)
  • 8in Sieve Adapter (SS-12R models only)

Accessories:

  • ASTM or ISO Test Sieves are available in a wide selection of frame diameters, heights, materials, and opening sizes
  • EZ-Clamp Upgrade Kit can be purchased to retrofit older SS-8R and SS-12R shakers
  • Platform Adapters adapt shaker for use with 3in, 6in, or 10in test sieves
  • Clean-N-Stor streamlines fraction collection, sieve cleaning, and weighing functions for sieving operations

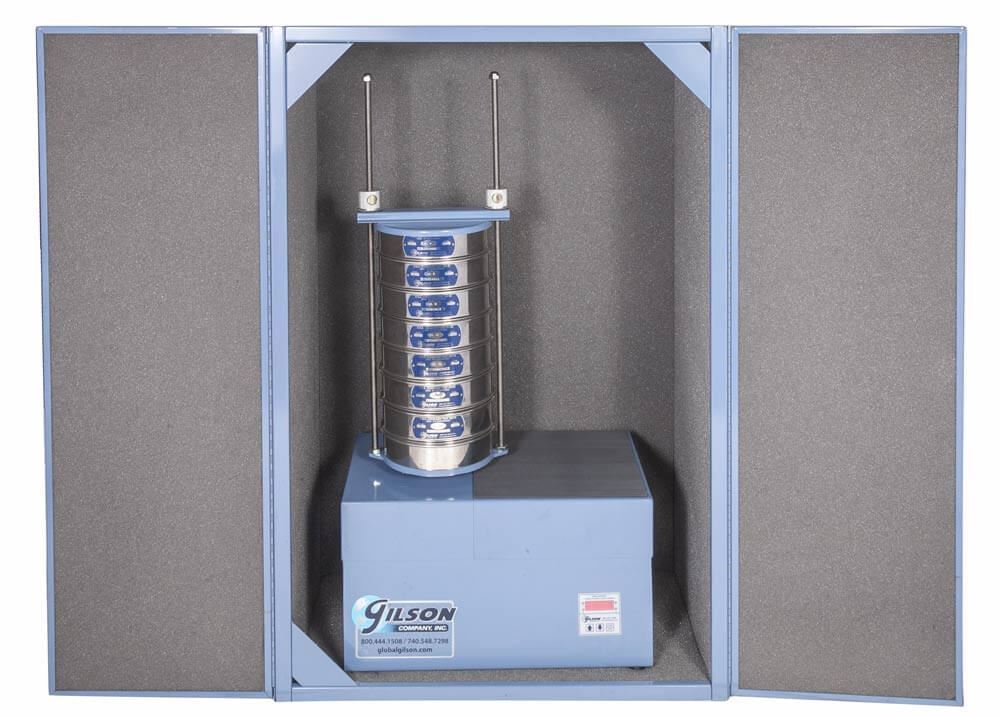

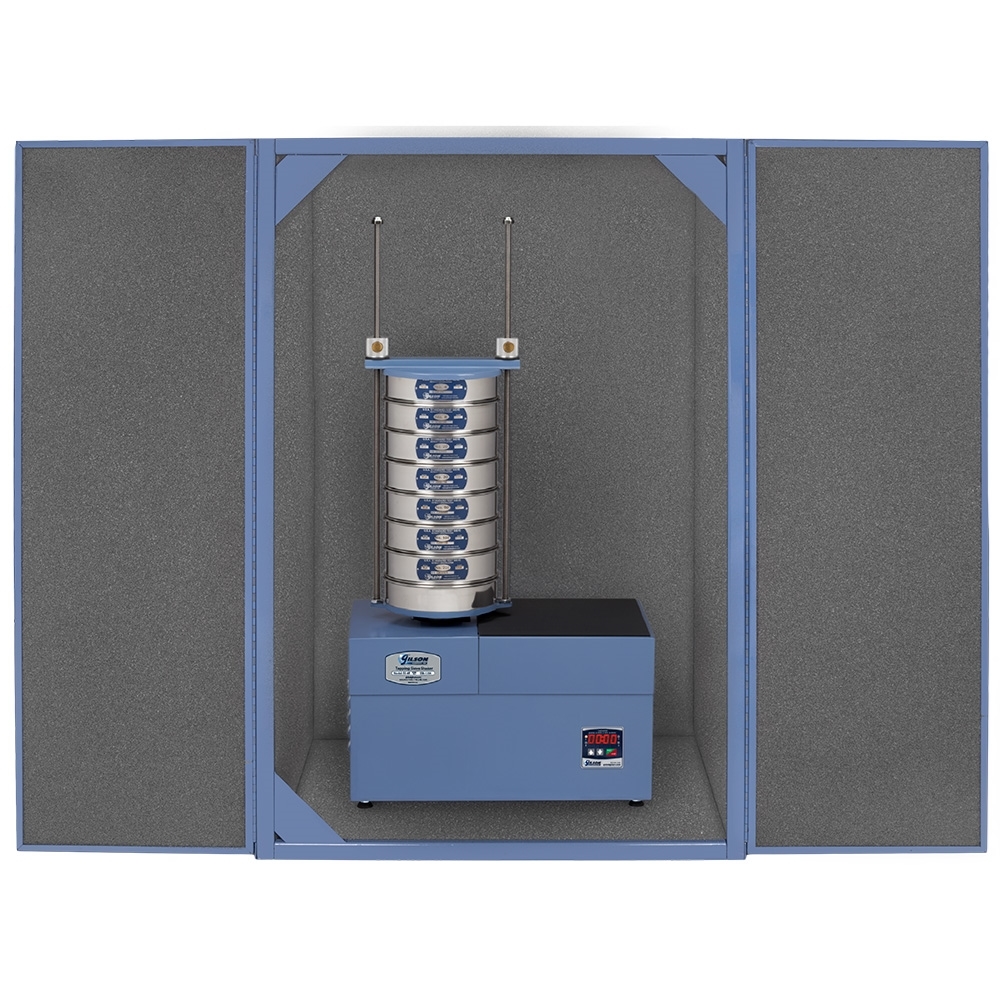

  • SSA-805R Sound Enclosure controls noise and dust associated with sieve shakers and other lab equipment

Related blogs:

Sieve Frame Diameter

SS-8R & SS-8RF: 8in & 200mm

SS-12R & SS-12RF: 8in, 12in, 200mm, & 300mm

Particle Size Range

SS-8R & SS-8RF: 1in–No.635

SS-12R & SS-12RF: 2in–No.635

Motion/Agitation Tapping/Circular
Sieve Capacity with Pan

Full Height: (10) 8in/200mm Sieves or (6) 12in/300mm Sieves

Half Height: (20) 8in/200mm Sieves or (13) 12in/300mm Sieves

Intermediate-Height: (10) 12in Sieves

Timing Capacity Up to 99 Minutes, 59 Seconds
Mounting Capability No
Electrical

SS-8R & SS-12R: 115V, 60Hz, 6.8 amps

SS-8RF & SS-12RF: 230V, 50Hz, 3.9 amps

Product Dimensions 22.5 x 13 x 41in (572 x 330 x 1,041mm) WxDxH
Estimated Shipping Weight

SS-8R: 123.0lb (55.79kg)

SS-8RF: 135.0lb (61.24kg)

SS-12R: 162.0lb (73.48kg)

SS-12RF: 162.0lb (73.48kg)

Video Playlist

Enter your name, email, and questions below and we will reply during business hours (8am - 5pm EST, Monday through Friday).

Sieve Frame Diameter

SS-8R & SS-8RF: 8in & 200mm

SS-12R & SS-12RF: 8in, 12in, 200mm, & 300mm

Particle Size Range

SS-8R & SS-8RF: 1in–No.635

SS-12R & SS-12RF: 2in–No.635

Motion/Agitation Tapping/Circular
Sieve Capacity with Pan

Full Height: (10) 8in/200mm Sieves or (6) 12in/300mm Sieves

Half Height: (20) 8in/200mm Sieves or (13) 12in/300mm Sieves

Intermediate-Height: (10) 12in Sieves

Timing Capacity Up to 99 Minutes, 59 Seconds
Mounting Capability No
Electrical

SS-8R & SS-12R: 115V, 60Hz, 6.8 amps

SS-8RF & SS-12RF: 230V, 50Hz, 3.9 amps

Product Dimensions 22.5 x 13 x 41in (572 x 330 x 1,041mm) WxDxH
Estimated Shipping Weight

SS-8R: 123.0lb (55.79kg)

SS-8RF: 135.0lb (61.24kg)

SS-12R: 162.0lb (73.48kg)

SS-12RF: 162.0lb (73.48kg)
