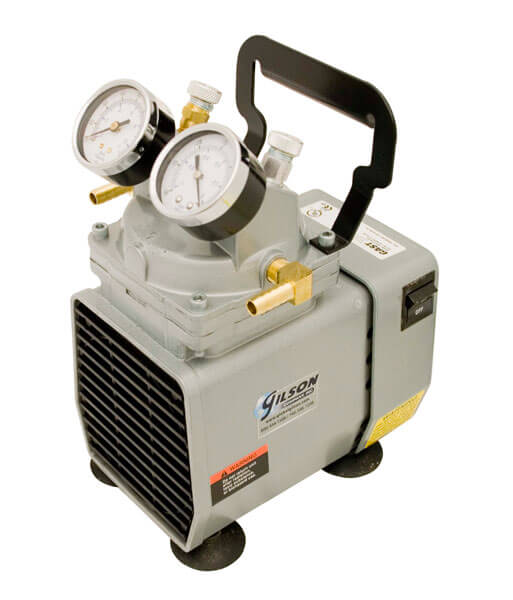

Oilless Diaphragm Vacuum Pump/Compressor

Oilless Diaphragm Vacuum Pump/Compressor (115V / 60Hz)

Oilless Diaphragm Vacuum Pump/Compressor (115V / 60Hz)

Model: MA-32
$679.0000
Price: $679.00
Oilless Diaphragm Vacuum Pump/Compressor (220-240V / 50Hz)

Oilless Diaphragm Vacuum Pump/Compressor (220-240V / 50Hz)

Model: MA-32F
$691.0000
Price: $691.00

Oilless Diaphragm Vacuum Pump/Compressor is a budget oilless diaphragm pump that is ideal for light to medium-duty lab applications. This popular unit comes complete with gauges, connections, and relief valves for vacuum and pressure applications and has built-in On/Off switch and carrying handle. The pump has a free air capacity of 1.1cfm (31.2L/min) and can produce pressure to 25.5in Hg (648mm), or up to 60psi (414kPa) pressure as a compressor. It is quiet, portable, and maintenance-free. The pump has 1/8hp, 115V, 60Hz shaded pole motor with thermal protection and is UL listed and CSA approved.

Features:

  • Cost-effective oil-free pump optimal for light to medium duty applications
  • Quiet, maintenance-free pump
  • Integral On/Off switch for easy, user-controlled operation
  • Convenient carrying handle for portability

Included Items:

  • Oilless Diaphragm Vacuum Pump & Compressor
  • Gauges
  • Connections
  • Relief Valves
Free Air Displacement 32L/min (1.1cfm)
Ultimate Vacuum 152 Torr
Pressure Rating 60psi (414kPa)
Intake Port 0.25in (6.3mm)
Motor 1/8hp (0.10kW)
Electrical

MA-32: 115V / 60Hz / 4.2Amps

MA-32F: 220-240V / 50Hz / 2.2Amps

Product Dimensions 5.3 x 7.6 x 10.5in (133 x 194 x 267mm), W x D x H
Estimated Shipping Weight 15.0lb (6.80kg)

Enter your name, email, and questions below and we will reply during business hours (8am - 5pm EST, Monday through Friday).

Free Air Displacement 32L/min (1.1cfm)
Ultimate Vacuum 152 Torr
Pressure Rating 60psi (414kPa)
Intake Port 0.25in (6.3mm)
Motor 1/8hp (0.10kW)
Electrical

MA-32: 115V / 60Hz / 4.2Amps

MA-32F: 220-240V / 50Hz / 2.2Amps

Product Dimensions 5.3 x 7.6 x 10.5in (133 x 194 x 267mm), W x D x H
Estimated Shipping Weight 15.0lb (6.80kg)
Meets Standard(s):
