Calcium Carbonate Content Chamber

Model: HM-536
Price: $340.00
Product Files

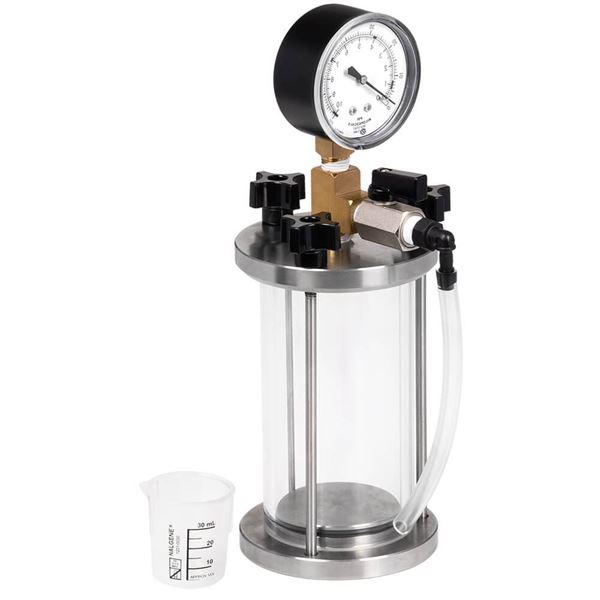

Calcium Carbonate Content Chamber provides an easy and quick determination of the calcium carbonate (CaCO3) content of soils. The test is often used as an index to the presence and quantity of calcium carbonate in marine soil specimens, expressed as the percent calcite equivalent.

The method involves treating a one-gram soil specimen with hydrochloric acid (HCl) in an enclosed reactor vessel. Carbon dioxide gas is generated from the reaction between the acid and carbonates in the specimen when the chamber is tilted and agitated, and the resulting pressure is measured. The 10psi (69kPa) Bourdon-tube pressure gauge is pre-calibrated with reagent-grade calcium carbonate. The 2.5x5.5in (63.5x140mm) IDxH clear acrylic chamber assembly is sealed to the 303 stainless steel end caps with synthetic rubber O-Rings and secured by threaded rods and knobs. HM-536 is supplied with a pressure gauge, bleed valve, and a 20ml soil/acid container with bail type handle.


  • The portable unit offers rapid results for Calcium Carbonate Content
  • The chamber assembly is clear acrylic
  • Easy-to-read pressure gauge

Included Items:

  • Calcium Carbonate Content Chamber
Pressure 10psi (69kPa)
Chamber Dimensions 2.5 x 5.5in (63.5 x 140mm) Dia.xH
Estimated Shipping Weight 6.0lb (2.72kg)

Enter your name, email, and questions below and we will reply during business hours (8am - 5pm EST, Monday through Friday).

Pressure 10psi (69kPa)
Chamber Dimensions 2.5 x 5.5in (63.5 x 140mm) Dia.xH
Estimated Shipping Weight 6.0lb (2.72kg)
Meets Standard(s):
