Aluminum Unit Weight Measures

1ft³ Aluminum Unit Weight Measure

1ft³ Aluminum Unit Weight Measure

Model: HM-10
$500.0000
Price: $500.00
1/2ft³ Aluminum Unit Weight Measure

1/2ft³ Aluminum Unit Weight Measure

Model: HM-11
$371.0000
Price: $371.00
1/3ft³ Aluminum Unit Weight Measure

1/3ft³ Aluminum Unit Weight Measure

Model: HM-12
$318.0000
Price: $318.00

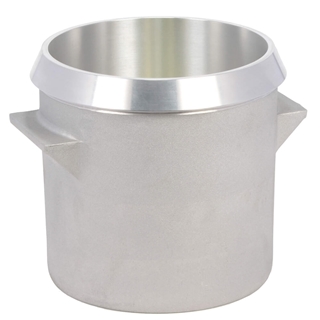

1/4ft³ Aluminum Unit Weight Measure

1/4ft³ Aluminum Unit Weight Measure

Model: HM-29
$311.0000
Price: $311.00
1/10ft³ Aluminum Unit Weight Measure

1/10ft³ Aluminum Unit Weight Measure

Model: HM-13
$135.0000
Price: $135.00

Precision Cast Aluminum Unit Weight Measures are preferred to determine the unit weight, yield, and gravimetric air content of fresh concrete or void content of aggregates to ensure high-quality pavements and structures.

Gilson Cast Aluminum Unit Weight Measures meet ASTM C29, ASTM C138, and AASHTO T 19, AASHTO T 121 specifications, and are machined for superior accuracy. Integral handles are formed into the corrosion-resistant aluminum castings. Measures are water-tight with top and bottom true and even. Rugged construction prevents deformation under rough usage.

Models available in the following capacities:
HM-10:
1ft³ (28.3L)

HM-11: 1/2ft³ (14.2L)

HM-12: 1/3 ft³ (9.4L)

HM-13: 1/10ft³ (2.8L)

HM-29: 1/4ft³ (7.1L)

Features:

  • Sturdy cast aluminum body
  • Integral handles are formed into the castings
  • Corrosion-resistant to cement pastes

Included Items:

  • Cast Aluminum Unit Weight Measure

Accessories:

  • Strike-Off Plates used to strike-off excess samples
  • Tamping Rods for consolidating concrete specimens in testing air content and more
  • HMA-368 Concrete Strike-Off Bar is used to remove excess material
  • HMA-300 Rubber Mallet has a 2.25in (57mm) hard rubber face for consolidating concrete in unit weight measures or removing specimen molds
Capacity

HM-10: 1ft³ (28.3L)

HM-11: 1/2ft³ (14.2L)

HM-12: 1/3 ft³ (9.4L)

HM-13: 1/10ft³ (2.8L)

HM-29: 1/4ft³ (7.1L)

Inside Dimensions

HM-10: 11.2 x 14in (284 x 356mm), Dia.xH

HM-11: 11 x 10in (279 x 254mm), Dia.xH

HM-12: 11.5 x 8in (292 x 203mm), Dia.xH

HM-13: 6.1 x 6in (155 x 152mm), Dia.xH

HM-29: 8.8 x 8in (224 x 203mm), Dia.xH

Strike-Off Plate Compatibility

HM-10: 16x16in Strike-Off Plate, HMA-493

HM-11: 12x12in Strike-Off Plate, HMA-492

HM-12 and HM-29: 10x10in Strike-Off Plate, HMA-491

HM-13: 8x8in Strike-Off Plate, HMA-490

Estimated Shipping Weight

HM-10: 28.0lb (12.70kg)

HM-11: 18.0lb (8.16kg)

HM-12: 12.0lb (5.44kg)

HM-29: 11.0lb (4.99kg)

HM-13: 6.0lb (2.72kg)

Enter your name, email, and questions below and we will reply during business hours (8am - 5pm EST, Monday through Friday).

Capacity

HM-10: 1ft³ (28.3L)

HM-11: 1/2ft³ (14.2L)

HM-12: 1/3 ft³ (9.4L)

HM-13: 1/10ft³ (2.8L)

HM-29: 1/4ft³ (7.1L)

Inside Dimensions

HM-10: 11.2 x 14in (284 x 356mm), Dia.xH

HM-11: 11 x 10in (279 x 254mm), Dia.xH

HM-12: 11.5 x 8in (292 x 203mm), Dia.xH

HM-13: 6.1 x 6in (155 x 152mm), Dia.xH

HM-29: 8.8 x 8in (224 x 203mm), Dia.xH

Strike-Off Plate Compatibility

HM-10: 16x16in Strike-Off Plate, HMA-493

HM-11: 12x12in Strike-Off Plate, HMA-492

HM-12 and HM-29: 10x10in Strike-Off Plate, HMA-491

HM-13: 8x8in Strike-Off Plate, HMA-490

Estimated Shipping Weight

HM-10: 28.0lb (12.70kg)

HM-11: 18.0lb (8.16kg)

HM-12: 12.0lb (5.44kg)

HM-29: 11.0lb (4.99kg)

HM-13: 6.0lb (2.72kg)
