Strike-Off Plates

8x8in Strike-Off Plate

8x8in Strike-Off Plate

Model: HMA-490
$38.5000
Price: $38.50
10x10in Strike-Off Plate

10x10in Strike-Off Plate

Model: HMA-491
$45.5000
Price: $45.50
12x12in Strike-Off Plate

12x12in Strike-Off Plate

Model: HMA-492
$62.5000
Price: $62.50
16x16in Strike-Off Plate

16x16in Strike-Off Plate

Model: HMA-493
$89.5000
Price: $89.50

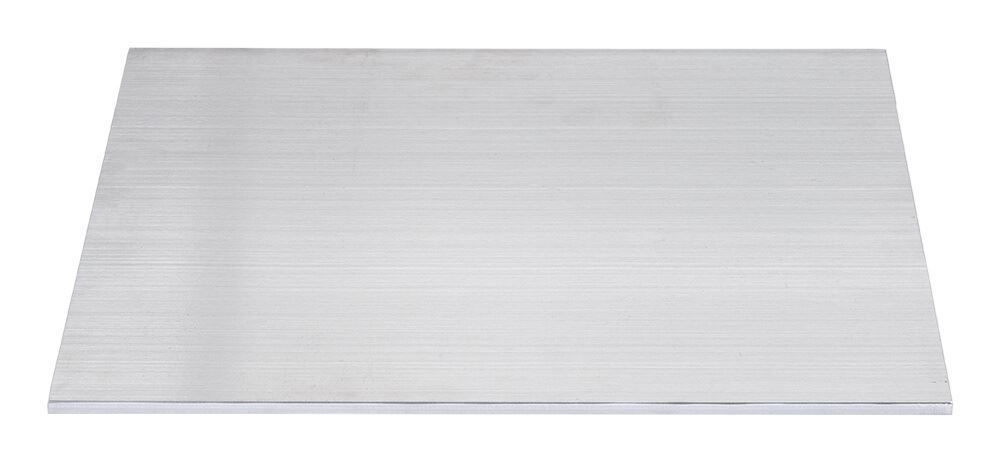

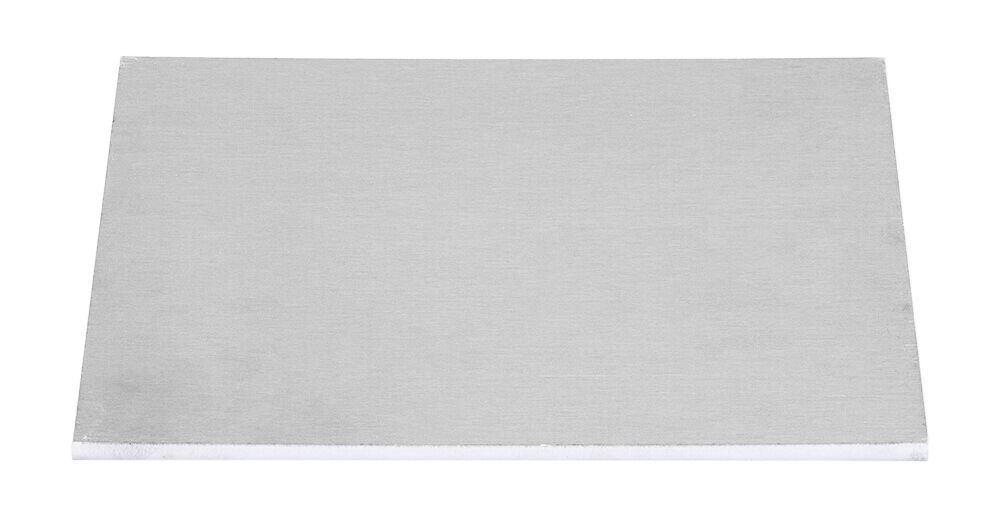

Strike-off Plates are square and made of 0.25in (6.4mm) thick corrosion-proof aluminum and useful for striking off samples for various volume and mass determinations in aggregate and concrete testing. ASTM and AASHTO standards require plate dimensions 2in (50.8mm) greater than diameter of the unit weight measures.

HMA-490 8x8in (203x203mm) Strike-Off Plate is for use with 6x6.1in (152x155mm) Unit Weight Measures:

HMA-491 10x10in (254x254mm) Strike-Off Plate is for use with 8x11.5in (203x292mm) Unit Weight Measures:

HMA-492 12x12in (305x305mm) Strike-Off Plate is for use with 10x11in (254x279mm) Unit Weight Measures:

HMA-493 16x16in (406x406mm) Strike-Off Plate is for use with 14x11.2in (356x284mm) Unit Weight Measures:

Features:

  • Made of corrosion-proof aluminum
  • 0.25in (6.4mm) thick
  • Meets ASTM/AASHTO standards

Included Items:

  • Strike-Off Plate
Product Dimensions

HMA-490: 8 x 8 x 0.25in (203 x 203 x 6.4mm) WxDxH

HMA-491: 10 x 10 x 0.25in (254 x 254 x 6.4mm) WxDxH

HMA-492: 12 x 12 x 0.25in (305 x 305 x 6.4mm) WxDxH

HMA-493: 16 x 16 x 0.25in (406 x 406 x 6.4mm) WxDxH

Estimated Shipping Weight

HMA-490: 1.0lb (0.45kg)

HMA-491: 4.0lb (1.81kg)

HMA-492: 2.0lb (0.91kg)

HMA-493: 9.0lb (4.08kg)

Enter your name, email, and questions below and we will reply during business hours (8am - 5pm EST, Monday through Friday).

Product Dimensions

HMA-490: 8 x 8 x 0.25in (203 x 203 x 6.4mm) WxDxH

HMA-491: 10 x 10 x 0.25in (254 x 254 x 6.4mm) WxDxH

HMA-492: 12 x 12 x 0.25in (305 x 305 x 6.4mm) WxDxH

HMA-493: 16 x 16 x 0.25in (406 x 406 x 6.4mm) WxDxH

Estimated Shipping Weight

HMA-490: 1.0lb (0.45kg)

HMA-491: 4.0lb (1.81kg)

HMA-492: 2.0lb (0.91kg)

HMA-493: 9.0lb (4.08kg)

Meets Standard(s):
