1.87in Test Cell Kit

Model: HMA-587B
Price: $203.00

Test Cell Kits contain items required to test specific soil sample sizes in triaxial and flex-wall permeability Test Cells. One kit is required for each sample size tested.

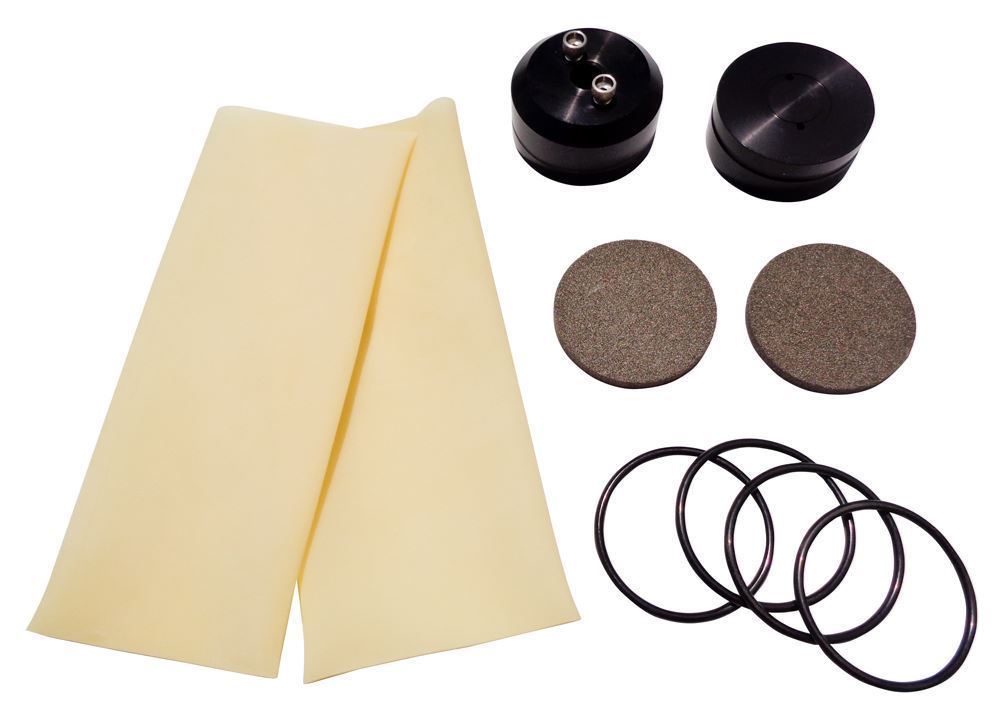

HMA-587B 1.87in (47.5mm) Test Cell Kit includes one Cap and Pedestal set, two Porous Stones, two 0.012in thick Latex Membranes, and four O-Rings. Each product in the kit is also available separately.


  • Contains matching-size components required for use with Triaxial and Flex-Wall Test Cells
  • Products also available separately

Included Items:

  • HMA-587B 1.87in Test Cell Kit, with
    • HMA-947B Cap and Pedestal Set
    • GSA-203 Porous Stones
    • HMA-567B O-Rings
    • HMA-527E Latex Membranes
Specimen Size 1.87in (47.5mm)
Estimated Shipping Weight 5.0lbs (2.27kg)

Enter your name, email, and questions below and we will reply during business hours (8am - 5pm EST, Monday through Friday).

Specimen Size 1.87in (47.5mm)
Estimated Shipping Weight 5.0lbs (2.27kg)
