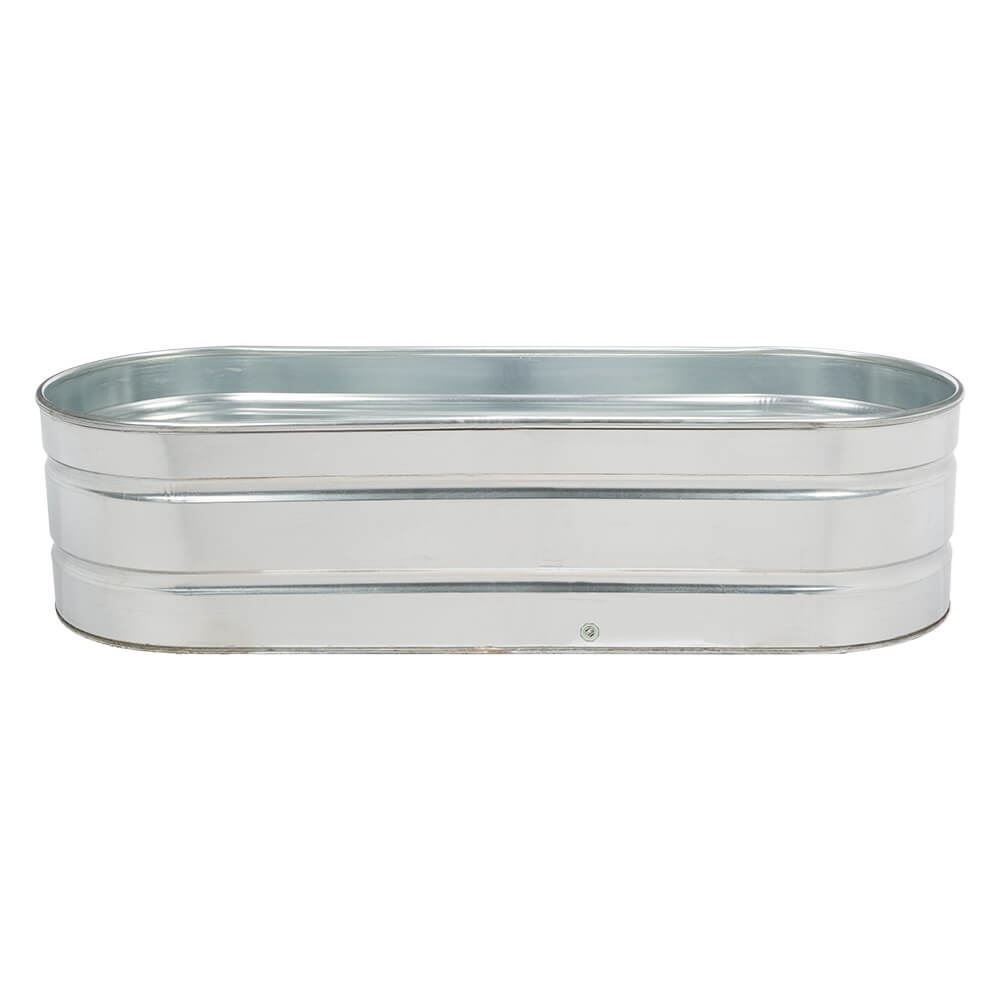

Steel Concrete Curing Tanks

*Curing Tanks are oversized and must be shipped via motor freight.
Steel Concrete Curing Tank (100gal)

Steel Concrete Curing Tank (100gal)

Model: HM-620
$150.0000
Price: $150.00

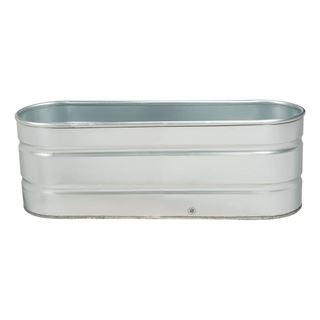

Steel Concrete Curing Tank (169gal)

Steel Concrete Curing Tank (169gal)

Model: HM-621
$278.0000
Price: $278.00
Steel Concrete Curing Tank (252gal)

Steel Concrete Curing Tank (252gal)

Model: HM-622
$379.0000
Price: $379.00
Steel Concrete Curing Tank (300gal)

Steel Concrete Curing Tank (300gal)

Model: HM-626
$449.5000
Price: $449.50

Steel Concrete Curing Tanks are filled with lime-saturated water and maintained to proper temperatures. They meet all requirements specified in ASTM and AASHTO for initial field and long-term laboratory curing with less expense and greater adaptability than full-scale moist curing rooms.

Gilson offers a range of 2ft (0.61m) deep tanks for curing cylinders, beams, and other molded specimens. Pipe-reinforced top provides extra-strong, crush-proof rim, and sturdy rolled seam with enclosed sealant prevents leaks. Side panels are 22-gauge, zinc-coated galvanized steel with both diagonal and horizontal corrugations for additional strength. Bottom is 20-gauge, zinc-coated galvanized steel.

All four models come with a drain plug.

*Curing Tanks are oversized and must be shipped via motor freight.

Features:

  • Composed of durable zinc-coated galvanized steel
  • Adaptable, cost-effective alternative to full-scale moist curing rooms
  • Rolled seam with enclosed sealant prevents leaks

Included Items:

  • Steel Concrete Curing Tank (100, 169, 252 or 300gal)
Accessories:
Material Galvanized Steel
Capacity

HM-620: 100gal (379L)

HM-621: 169gal (640L)

HM-622: 252gal (954L)

HM-626: 300gal (1,136L)

Product Dimensions

HM-620: 48 x 24 x 24in (1,220 x 610 x 610mm) LxWxH

HM-621: 72 x 24 x 24in (1,829 x 610 x 610mm) LxWxH

HM-622: 96 x 30 x 24in (2,438 x 762 x 610mm) LxWxH

HM-626: 96 x 36 x 24in (2,438 x 914 x 610mm) LxWxH

Estimated Shipping Weight

HM-620: 60.0lbs (27.22kg)

HM-621: 86.0lbs (39.01kg)

HM-622: 205.0lbs (92.99kg)

HM-626: 135.0lbs (61.24kg)

Enter your name, email, and questions below and we will reply during business hours (8am - 5pm EST, Monday through Friday).

Material Galvanized Steel
Capacity

HM-620: 100gal (379L)

HM-621: 169gal (640L)

HM-622: 252gal (954L)

HM-626: 300gal (1,136L)

Product Dimensions

HM-620: 48 x 24 x 24in (1,220 x 610 x 610mm) LxWxH

HM-621: 72 x 24 x 24in (1,829 x 610 x 610mm) LxWxH

HM-622: 96 x 30 x 24in (2,438 x 762 x 610mm) LxWxH

HM-626: 96 x 36 x 24in (2,438 x 914 x 610mm) LxWxH

Estimated Shipping Weight

HM-620: 60.0lbs (27.22kg)

HM-621: 86.0lbs (39.01kg)

HM-622: 205.0lbs (92.99kg)

HM-626: 135.0lbs (61.24kg)

Meets Standard(s):
