Standard Chipmunk Jaw Crushers

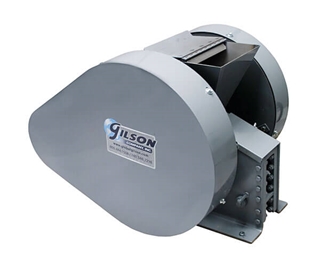

Standard Chipmunk Jaw Crusher (110V, 1 Phase)

Standard Chipmunk Jaw Crusher (110V, 1 Phase)

Model: LC-33
$7009.0000
Price: $7,009.00
Standard Chipmunk Jaw Crusher (220V, 1 Phase)

Standard Chipmunk Jaw Crusher (220V, 1 Phase)

Model: LC-33A
$7009.0000
Price: $7,009.00

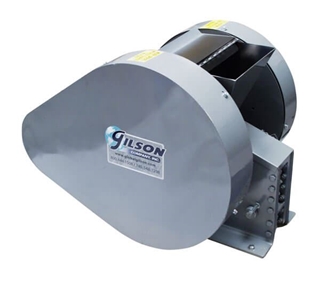

Standard Chipmunk Jaw Crusher (220V, 3 Phase)

Standard Chipmunk Jaw Crusher (220V, 3 Phase)

Model: LC-34
$6280.0000
Price: $6,280.00
Standard Chipmunk Jaw Crusher (440V, 3 Phase)

Standard Chipmunk Jaw Crusher (440V, 3 Phase)

Model: LC-34A
$6280.0000
Price: $6,280.00

The LC-33 and LC-34 Standard Chipmunk Jaw Crushers have rugged construction and exceptional capacity to easily reduce hard rock, ores and minerals, while consuming minimal power. Reversible jaw plates extend service life, and the stationary jaw lifts easily from the frame to expose the inner components for cleaning. Jaw size is 3x6in (76x152mm) with a 3x2.25in (76x57mm) opening. The side-mounted hand wheel adjusts wedge blocks to control discharge to 1/16—3/8in (1.6—9.5mm) particle size. Maximum feed size is 2.2x3in (56x76mm), with a 400lb (182kg) capacity per hour.

Both models are made of wear-resistant alloy steel, have sealed bronze bearings and alloy steel shafts; all components can be easily reached for cleaning. A Sample Pan, Feed Hopper, Belt Guards and Flywheel come with both units. An electric motor starting switch is included as well, but it must be installed on-site. The single-phase motors are designed for configuration to 110V or 220V operation. Three-phase motors can operate on 220V or 440V power sources.

Optional Dust Enclosure Bench and Replacement Filter are available.

Features:

  • LC-33 is 2HP/1-Phase motor while LC-34 is 2HP/3-Phase motor
  • Wedge blocks allow for adjustable discharge opening
  • Highest crushing capacity
  • Maximum feed size is 2.2x3in
  • Reversible jaw plates

Included Items:

  • Standard Chipmunk Jaw Crusher (1 Phase/110 or 220V or 3 Phase/220 or 440V)
  • Electric Motor Starter Switch (must be installed on-site)
  • Sample Pan
  • Feed Hopper
  • Belt Guards
  • Flywheel

Accessories:

Particle Topsize 76mm
Final Size 1.6mm
Max. Feed Capacity 400lb (182kg)/hr
Maximum Particle Size 2.2 x 3in
Grinding Elements 6 x 3in (152.4 x 76.2mm) Jaws
Grinding Media Steel Alloy
Application rocks, ores, minerals
Electrical

LC-33: 115V/60Hz/25 amps (2hp, 1Phase motor)

LC-33A: 220V/60Hz/12.25 amps (2hp, 1Phase motor)

LC-34: 220V/50-60Hz/6.6amps (2hp, 3Phase motor)

LC-34A: 440V/50-60Hz/3.3 amps (2hp, 3Phase motor)

Product Dimensions 25 x 19 x 30in (64 x 48 x 76cm) WxDxH
Estimated Shipping Weight 430.0lbs (195.05kg)

Enter your name, email, and questions below and we will reply during business hours (8am - 5pm EST, Monday through Friday).

Particle Topsize 76mm
Final Size 1.6mm
Max. Feed Capacity 400lb (182kg)/hr
Maximum Particle Size 2.2 x 3in
Grinding Elements 6 x 3in (152.4 x 76.2mm) Jaws
Grinding Media Steel Alloy
Application rocks, ores, minerals
Electrical

LC-33: 115V/60Hz/25 amps (2hp, 1Phase motor)

LC-33A: 220V/60Hz/12.25 amps (2hp, 1Phase motor)

LC-34: 220V/50-60Hz/6.6amps (2hp, 3Phase motor)

LC-34A: 440V/50-60Hz/3.3 amps (2hp, 3Phase motor)

Product Dimensions 25 x 19 x 30in (64 x 48 x 76cm) WxDxH
Estimated Shipping Weight 430.0lbs (195.05kg)
