6.25in Asphalt Core Drill Bit (Open-Head)

Model: CDA-262
$258.5000
Price: $258.50

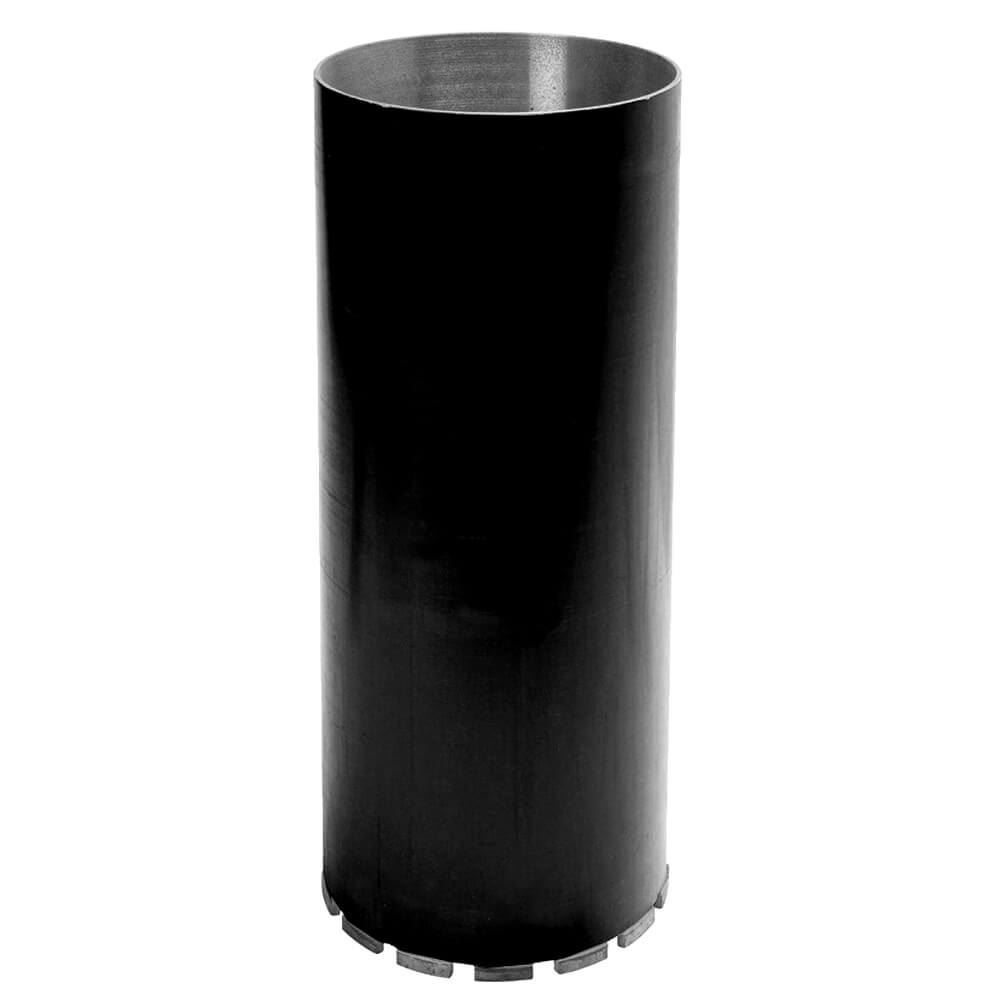

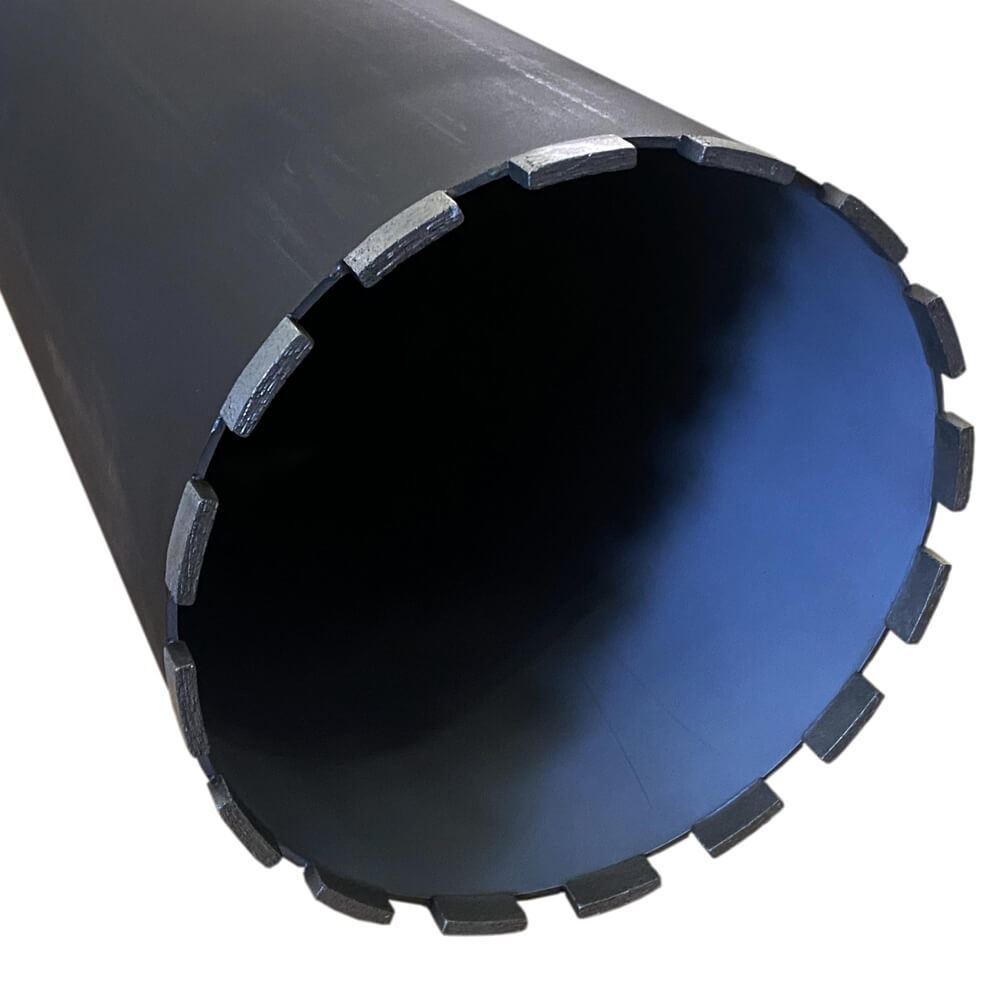

CDA-262 6.25in (159mm) OD Asphalt Core Drill Bit (Open-Head) is used with electric or gasoline-powered Core Drills to obtain drilled asphalt cores for evaluation and laboratory testing. The bit requires a properly sized Expander Set for Open-Head Asphalt Coring Bits for attachment to the drilling machine. It performs well in high-output, heavy-use applications, and can be refurbished when worn. Diamond Coring Bits are designed for wet-use with asphalt, and are fast-cutting when used as designed. The 14in (356mm) length enables cutting cores up to 12in (305mm) long. Final core diameter is approximately 0.25in (6.4mm) smaller than nominal outside diameter.

Features:

  • Core lengths up to 12in (305mm)
  • Nominal core diameter is 6in (152mm)
  • Uses Expander Set to attach to drill machine

Included Items:

  • 6.25in Asphalt Core Drill Bit (Open-Head)

Accessories:

Material Asphalt
Nominal Bit Size, OD 6-1/4in (158.8mm)
Mounting Connection Open-Head
Estimated Shipping Weight 14.0lbs (6.35kg)

Enter your name, email, and questions below and we will reply during business hours (8am - 5pm EST, Monday through Friday).

Material Asphalt
Nominal Bit Size, OD 6-1/4in (158.8mm)
Mounting Connection Open-Head
Estimated Shipping Weight 14.0lbs (6.35kg)
Meets Standard(s):
