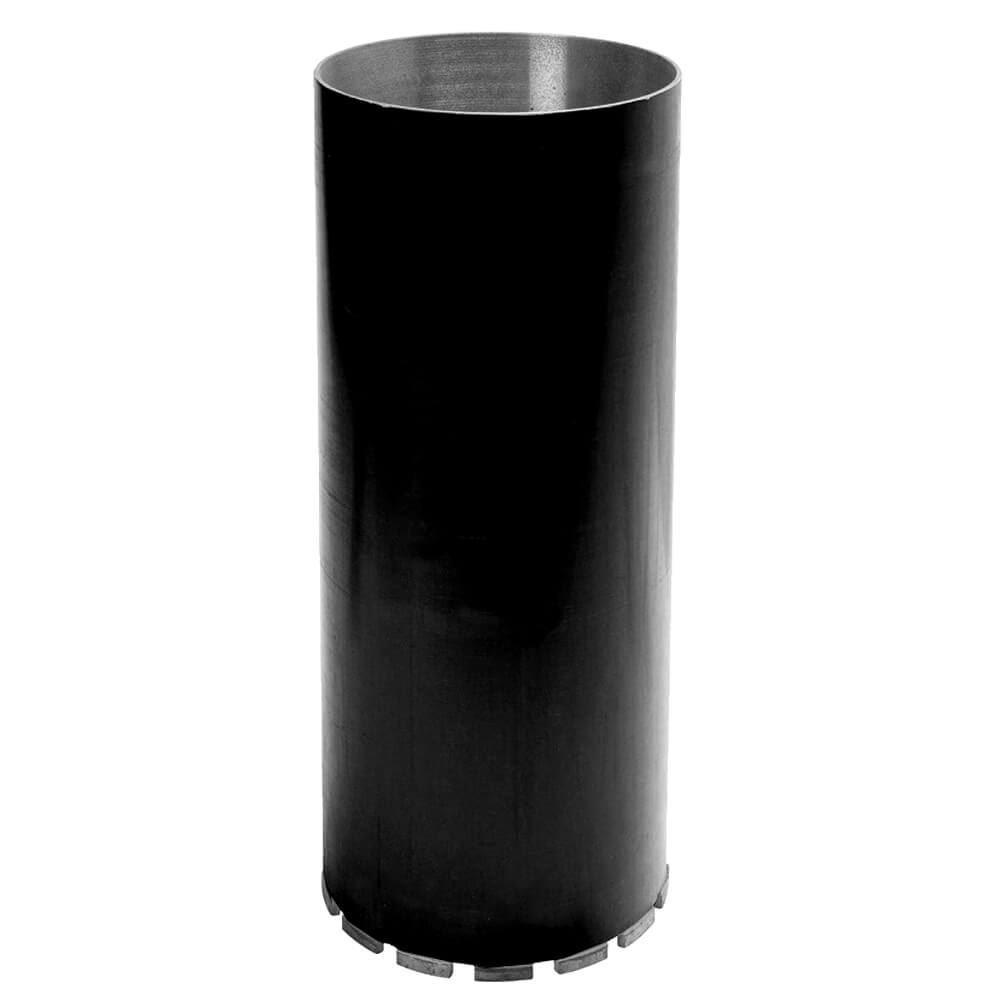

CDA-260 6in (152mm) OD Asphalt Core Drill Bit (Open-Head) is used with electric or gasoline-powered Core Drills to obtain drilled asphalt cores for evaluation and laboratory testing. The bit requires a properly sized Expander Set for Open-Head Asphalt Coring Bits for attachment to the drilling machine. It performs well in high-output, heavy-use applications, and can be refurbished when worn. Diamond Coring Bits are designed for wet-use with asphalt and are fast-cutting when used as designed. The 14in (356mm) length enables cutting cores up to 13in (330mm). The final core diameter is approximately 0.25in (6.4mm) smaller than the nominal outside diameter.
- Core lengths up to 13in (330mm)
- The nominal core diameter is 5.75in (146mm)
- Uses Expander Set to attach to drill machine
- 6in Asphalt Core Drill Bit (Open-Head)
