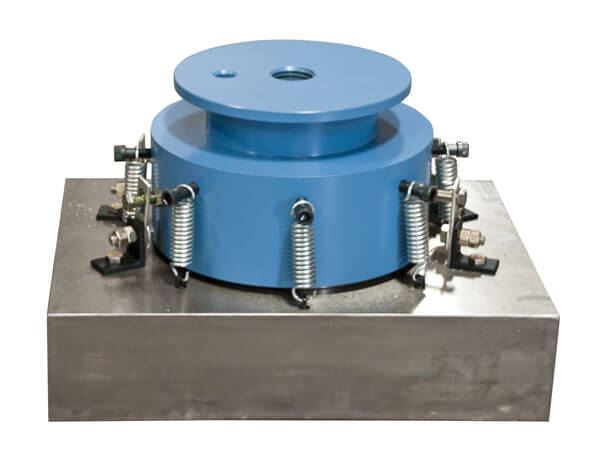

Masonry Test Sets for use with 250, 300, and 400/500 Series Concrete Compression Machines in testing compressive strength of 8 or 12in (203 or 305mm) concrete masonry unit (CMU) blocks. The set is equipped with a large diameter spherical disc and seat assemblies which secure the block with heavy-duty springs that allow it to rotate freely and seat under load. Its platen bearing surface is plane to .001in (.025mm) in any 6in (152mm) direction. The 250 and 300 Series compression machines can test blocks up to 8in (203mm) wide, while the 400 and 500 series testing machines can accommodate blocks up to 12in (305mm) width. Test sets for testing units up to 8in (203mm) also include a bottom bearing block.
MCA-12R Masonry Test Set is used with 250 Series Compression Machines and can test blocks up to 8in (203mm) wide. A bottom bearing block is included. The MCA-12R does not meet ASTM specifications.
MCA-32 Masonry Test Set is for use with 300 Series Compression Machines and can test blocks up to 8in (203mm) wide. A bottom bearing block is included. The MCA-32 does not meet ASTM specifications.
MCA-13R Masonry Test Set is used with the 400 and 500 Series Concrete Compression Machines and can accommodate blocks up to 12in (305mm) width. The MCA-13R meets ASTM C1314 and ASTM C140/140M specifications.
- Steel construction, plated to resist wear and corrosion
- Locking stem system secures upper component to testing machine
- Masonry Test Set for 250 or 300 Series Compression Machines with Bottom Bearing Block, or
Masonry Test Set for 400/500 Series Compression Machines
