Laboratory Jaw Crushers

1x2in Laboratory Jaw Crusher (115V / 60Hz)

1x2in Laboratory Jaw Crusher (115V / 60Hz)

Model: LC-26
$3350.0000
Price: $3,350.00
1x2in Laboratory Jaw Crusher (220V / 50Hz)

1x2in Laboratory Jaw Crusher (220V / 50Hz)

Model: LC-26F
$3350.0000
Price: $3,350.00
2.25x3in Laboratory Jaw Crusher (115V / 60Hz)

2.25x3in Laboratory Jaw Crusher (115V / 60Hz)

Model: LC-27
$3750.0000
Price: $3,750.00
2.25x3in Laboratory Jaw Crusher (220V / 50Hz)

2.25x3in Laboratory Jaw Crusher (220V / 50Hz)

Model: LC-27F
$3750.0000
Price: $3,750.00
3x4in Laboratory Jaw Crusher (220V / 50-60Hz)

3x4in Laboratory Jaw Crusher (220V / 50-60Hz)

Model: LC-28
$6750.0000
Price: $6,750.00

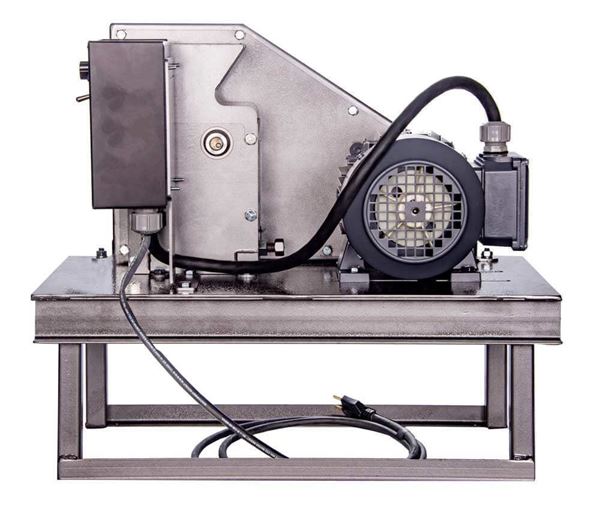

Laboratory Jaw Crushers are designed for economic size reduction of typical aggregates and common minerals at an output scaled for laboratory testing. Adjustable jaw openings allow close control of output size. High operating rpm promotes efficient size reduction with lower dust generation compared to other crushers and pulverizers. Crushers are mounted on sturdy welded-steel base frames with CSA-rated electric motors and are fully equipped with pulleys, feed hoppers, and safety guards. Replacement Jaw Plate sets are available.

LC-26 1x2in Laboratory Jaw Crusher reduces aggregate, rock and ore samples from 3/4in (20mm) feed size to 80% passing a No. 14 (1.4mm) sieve and 50% passing a No. 50 (300µm). Maximum throughput as much as 20lb (9kg) per hour. A high-frequency overhead eccentric combined with the variable speed controller produces a short throw of the jaws at rates up to 500rpm. Jaw opening is adjusted with an easy to use adjustable bolt to control output size. Jaw plates are high-impact, wear-resistant AR450 steel. The unit has a 1hp electric motor. Electrical cord and plug are included for operation on 115V/60Hz electrical supplies. Variable speed controller can also operate on 220V/50Hz power sources with a slight reduction in speed.

LC-27 2.25x3in Laboratory Jaw Crusher reduces 2in (50mm) aggregate, ore and rock materials to a product with 80% passing a No. 14 (1.4mm) sieve. Jaw opening easily adjusts down to 1mm minimum to closely control output size. Maximum throughput is approximately 50lb (22kg) per hour at 525rpm. Rate of operation is regulated by the variable speed controller. Jaw plates are high-impact, wear-resistant AR450 steel. It has a 1hp electric motor. Electrical cord and plug are included for operation on 115V/60Hz electrical supplies. Variable speed controller can also operate on 220V/50Hz power sources with a slight reduction in speed.

LC-28 3x4in Laboratory Jaw Crusher reduces 3in feed aggregate and rock material to product with 50% passing 0.25in (6.3mm) sieve. Jaw opening quickly adjusts from 0.375 to 1.5in (9.5 to 38mm). Operation of the overhead eccentric is regulated by the variable speed controller up to 375rpm and quickly crushes material for final testing or to prepare for secondary crushing. Throughput is up to 500 pounds (227 kg) per hour for most materials. High-manganese steel jaw plates can be rotated when worn for extended service life. The 3hp electric motor is 220V and operates on either 50 or 60Hz electrical supplies.

Features:

  • Adjustable crushing jaws control output size
  • Economic performance with lower dust output
  • High operating rpm offers efficiency in size reduction
  • Base frame constructed of welded steel

Included Items:

  • 1x2in Laboratory Jaw Crusher, 110V/60hz or 220V/50Hz, or
    2.25x3in Laboratory Jaw Crusher, 110V/60hz or 220V/50Hz, or
    3x4in Laboratory Jaw Crusher, 220V/50-60Hz
  • Power cord and plug

Accessories:

Maximum Particle Size

LC-26 Models: 0.75 x 0.75in (19.05 x 19.05mm)

LC-27 Models: 2 x 2in (50.8 x 50.8mm)

LC-28 Model: 3 x 3in (76.2 x 76.2mm)

Max. Feed Capacity

LC-26 Models: Up to 20lb (9kg)/hr

LC-27 Models: 50lb (22kg)/hr

LC-28 Model: Up to 500lb (227kg)/hr

Final Size

LC-26 Models: 80% passing No. 14 (1.4mm) and 50% passing a No. 50 (300µm)

LC-27 Models: No. 14 (1.4mm) and smaller

LC-28 Model: 0.25in (6.3mm) and smaller

Composition

LC-26 Models: AR450 Steel, 1 x 2in (25 x 51mm)

LC-27 Models: AR450 Steel, 2.25 x 3in (57 x 75mm)

LC-28 Model: High-Manganese Steel, 3 x 4in (76 x 102mm)

Application Aggregates and Rocks/Ore
Electrical

LC-26 and LC-27: 115V/60Hz, 1hp

LC-26F and LC-27F: 220V/50Hz, 1hp

LC-28: 220V/50-60Hz, 3hp

Product Dimensions

LC-26 and LC-27 Models: 13 x 22 x 20in (330 x 559 x 508mm), WxDxH

LC-28 Model: 19 x 32 x 31in (483 x 813 x 787mm), WxDxH

Estimated Shipping Weight

LC-26: 125.0lbs (56.70kg)

LC-26F: 125.0lbs (56.70kg)

LC-27: 125.0lbs (56.70kg)

LC-27F: 125.0lbs (56.70kg)

LC-28: 250.0lbs (113.40kg)
