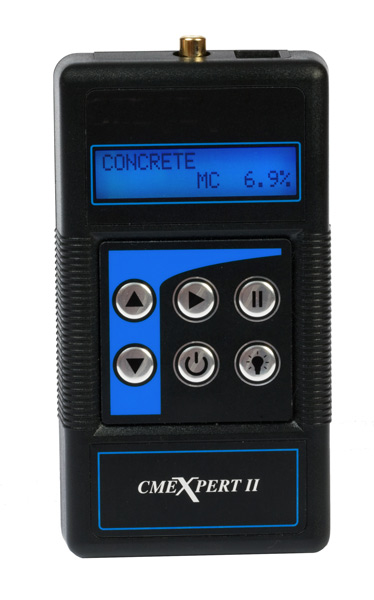

CMEXpert II Concrete Meter

HM-669 CMEXpert ll Concrete Moisture Meter performs direct-contact concrete surface moisture testing to ASTM F2659 and can measure up to 6.9% moisture content. This meter is sold individually and is also a component of the HM-85 Concrete Hygro-i Inspection Kit. It can be used with HMA-650 Hygro-i Relative Humidity Probes with an electronic interface cable for ambient measurements of relative humidity, temperature and dew point. The cable is also included with the HM-85 kit. The unit’s relative humidity range is 0—100% non-condensing. Humidity accuracy of between 10%—90% is ±1.8% at 25°C (77°F) and ±3% above 90%.

Optional HMA-661 Calibration Check Plate verifies proper performance of the meter when used for direct-contact surface readings. Adjustments or recalibration must be performed by the factory.

Features:

• Backlit digital display
• Hand-held digital instrument has hold function to retain meter reading
• Highly accurate

Included Items:

• HM-669 CMEXpert II Concrete Moisture Meter

Accessories:

HMA-650 Hygro-i Relative Humidity Probe for CMEXpert II single probe w/electronic interface that connects to HM-669 for use as a stand-alone RH meter

HMA-661 Calibration Check Plate with moisture scale of 4.0% + 0.2%
