Blaine Air Permeability Apparatus

Blaine Air Permeability Apparatus is used for determining the fineness of Portland Cement measures the specific surface area of fine materials in square centimeters per gram of test sample. By using this apparatus, a quantity of air is drawn through a bed of definite porosity. The rate of airflow is determined by the pore volume in the bed, a function of the size of particles.

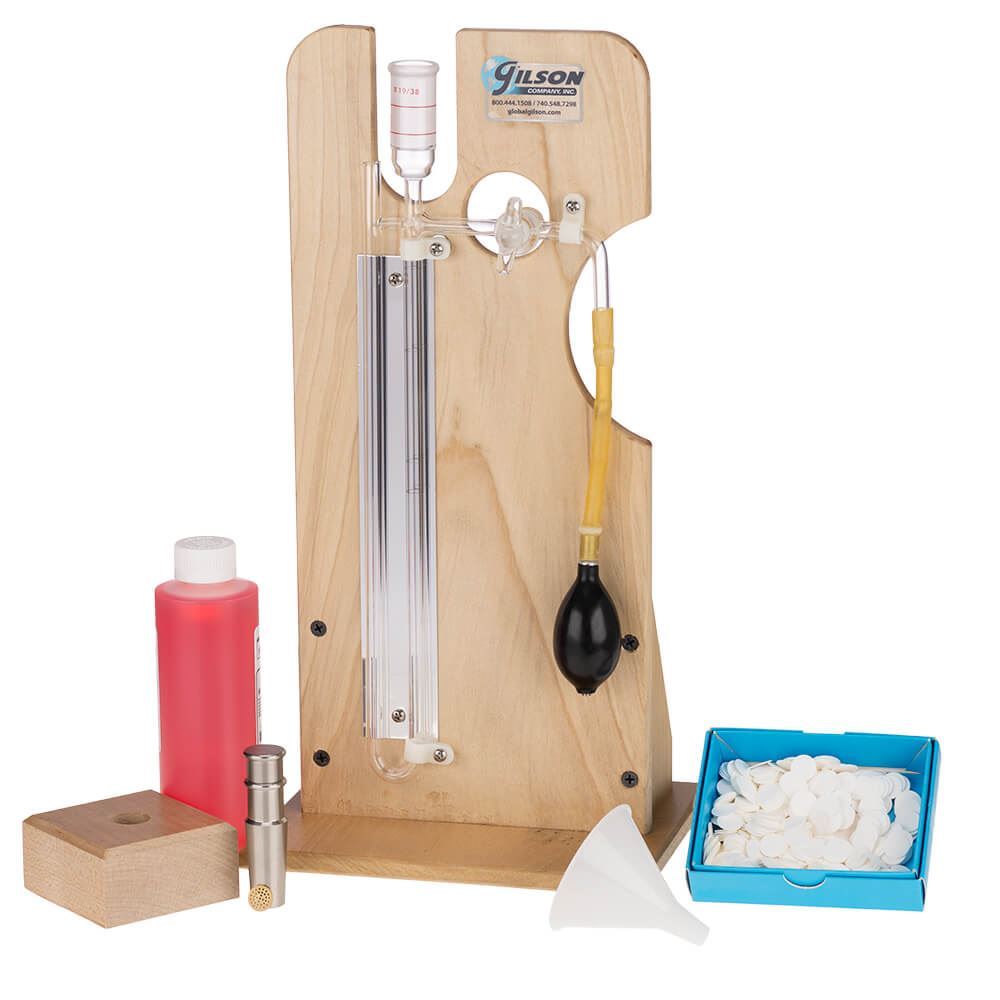

Components of the apparatus are a stainless-steel test cell, plunger, perforated disk, calibrated U-tube manometer, and rubber aspirator and bulb, and are all mounted on a sturdy wood panel with a base. An 8oz bottle of red spirit manometer fluid, a package of filter paper, and a woodblock for holding the cell during filling are also included.

NIST Portland Cement #46h is required by ASTM and AASHTO standards for calibration of the MA-10.

Features:

• Meets ASTM C204 and AASHTO T 153 requirements
• Mounted on sturdy wood panel and base
• Includes all necessary components

Included Items:

• Blaine Air Permeability Apparatus w/ wood panel and base
• Stainless-steel test cell
• Plunger
• Perforated disk
• Calibrated U-tube manometer
• Rubber aspirator and bulb
• 8oz bottle red spirit manometer fluid
• Filter paper
• Woodblock for test cell

Accessories:

• MA-12 Blaine Air Permeability Replacement U-Tube mounts easily for replacement
• MA-11 Blaine Air Permeability Filter Paper, additional filters for use during testing
• MA-13 8oz Blaine Air Permeability Manometer Fluid, indicating fluid for refilling the Apparatus
• BS-46 No. 46h NIST Portland Cement is required for calibration (alternative in applications where NIST #114q is required). Available in 10 sealed vials with approximately 5g of cement.
