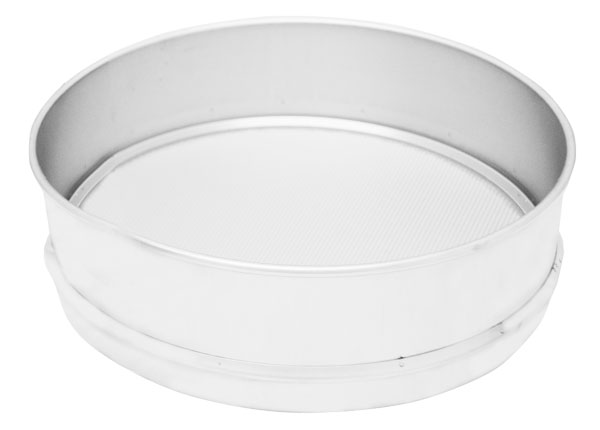

8" Precision Electroform Sieve, Full Height, 32um

Model: V8EF-032
$789.5000
Price: $789.50

8in (203mm) diameter ASTM Precision Electroformed Test Sieve has nickel woven-wire cloth with 32µm opening size and full height stainless steel frame.

Works well for very fine powders when used with Vibratory Sieve Shakers or Sonic Sifters.

Features:

  • Greater accuracy of ±2µm for precision particle sizing operations compared to woven wire sieves
  • Ideal choice for very fine powders when used with vibratory or sonic shakers
  • Reliable reference standard when calibrated with glass beads or other reference materials

Included Items:

  • 8" Precision Electroform Sieve, Full Height, 32um
  • Certificate of Compliance

Accessories:

  • 8" All Stainless Sieve Pan, Full Height to collect fines passing through bottom sieve
  • 8" All Stainless Extended Rim Pan, Full Height fits between sieves to collect fines from top sieves
  • 8" All Stainless Sieve Cover to prevent sample loss or contamination
Frame Diameter 8in (203mm)
Frame Height Full Height
Material Stainless Steel Frame / Nickel Cloth
ASTM E161 Opening Size 32µm
Lines Per Inch (LPI) 300
Estimated Shipping Weight 2.0lbs (0.91kg)
  • Question: We need the accuracy of +/- 1um for opening size of 5um, 8um. Is it possible?
    • Answer: Yes, we can special order sieves with a more narrow tolerance. Contact us to special order.

  • Question: What is the durability of your precision electroformed sieves, how thick is the mesh material, and will they stand up to aggressive brushing?
    • Answer: Precision electroformed mesh is very fragile and delicate. The mesh is formed using electrodeposition of nickel, a durable material but not sturdy enough to hold up to aggressive brushing. These are precision instruments and should be treated carefully.  We recommend ultrasonic cleaning units such as the UB-15 for the Precision Electroformed Sieves. Use extreme caution until it is known that the system is suitable for each sieve size. Select lower energy output with frequency above 40kHz for 20 seconds or less. Sieves should be positioned vertically, and addition of ethyl or isopropyl alcohol to tank water will decrease erosion risk. Drying temperature should not exceed 100°C.

Enter your name, email, and questions below and we will reply during business hours (8am - 5pm EST, Monday through Friday).

Frame Diameter 8in (203mm)
Frame Height Full Height
Material Stainless Steel Frame / Nickel Cloth
ASTM E161 Opening Size 32µm
Lines Per Inch (LPI) 300
Estimated Shipping Weight 2.0lbs (0.91kg)
Meets Standard(s):
